Switchgear R-FVE-DC2 – protection class II

EAN: 8594217350222 SKU: R-FVE-DC2T2

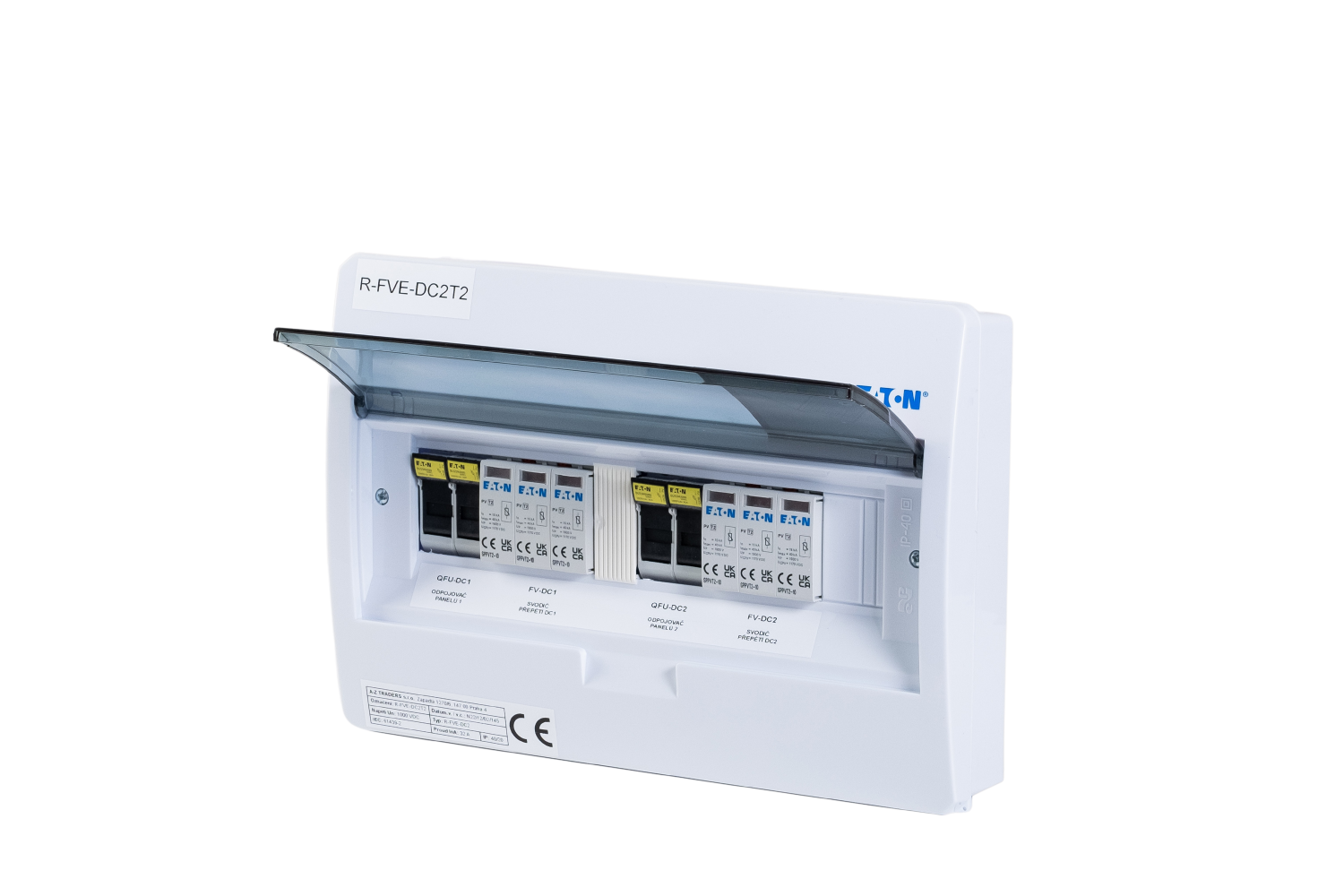

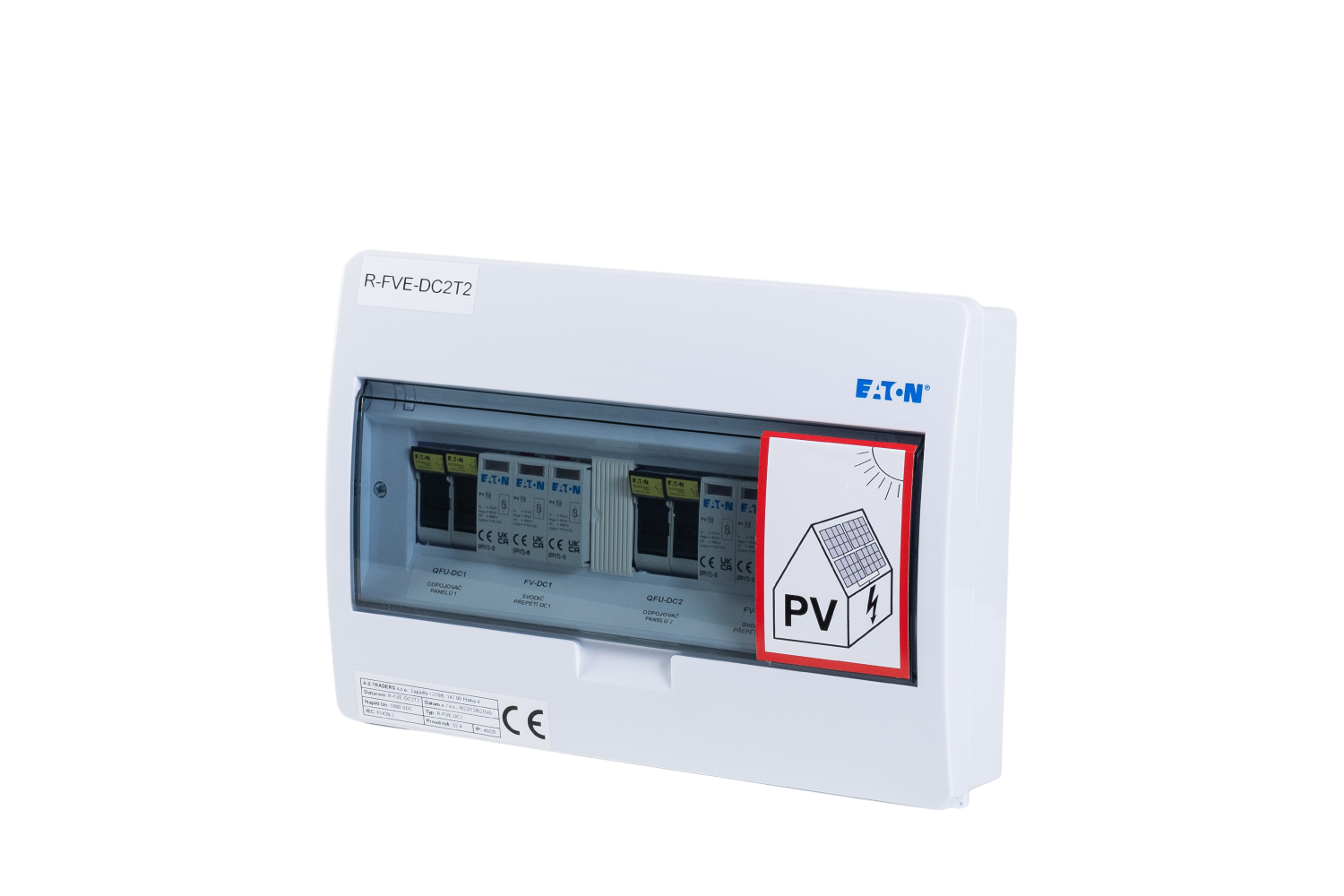

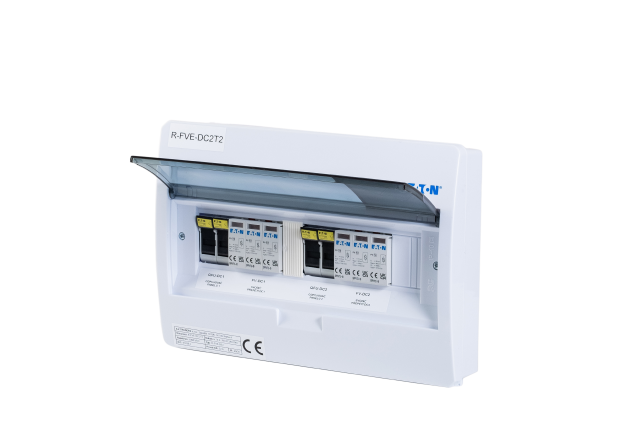

DC switchboard designed for wall mounting, IP40/20 serving as an input switchboard from photovoltaic panels (to the inverter) for the entire portfolio of photovoltaic power plants. Especially when using other switchgears, also EATON BC-O-1/12-ECO.

More information

Prices are visible only to registered users.

PRODUCT DESCRIPTION

Product description

Its advantage is its small size, the possibility of "stacking" with other AC switchboards next to each other or under each other, which makes it possible to install it even in areas where space is a problem.

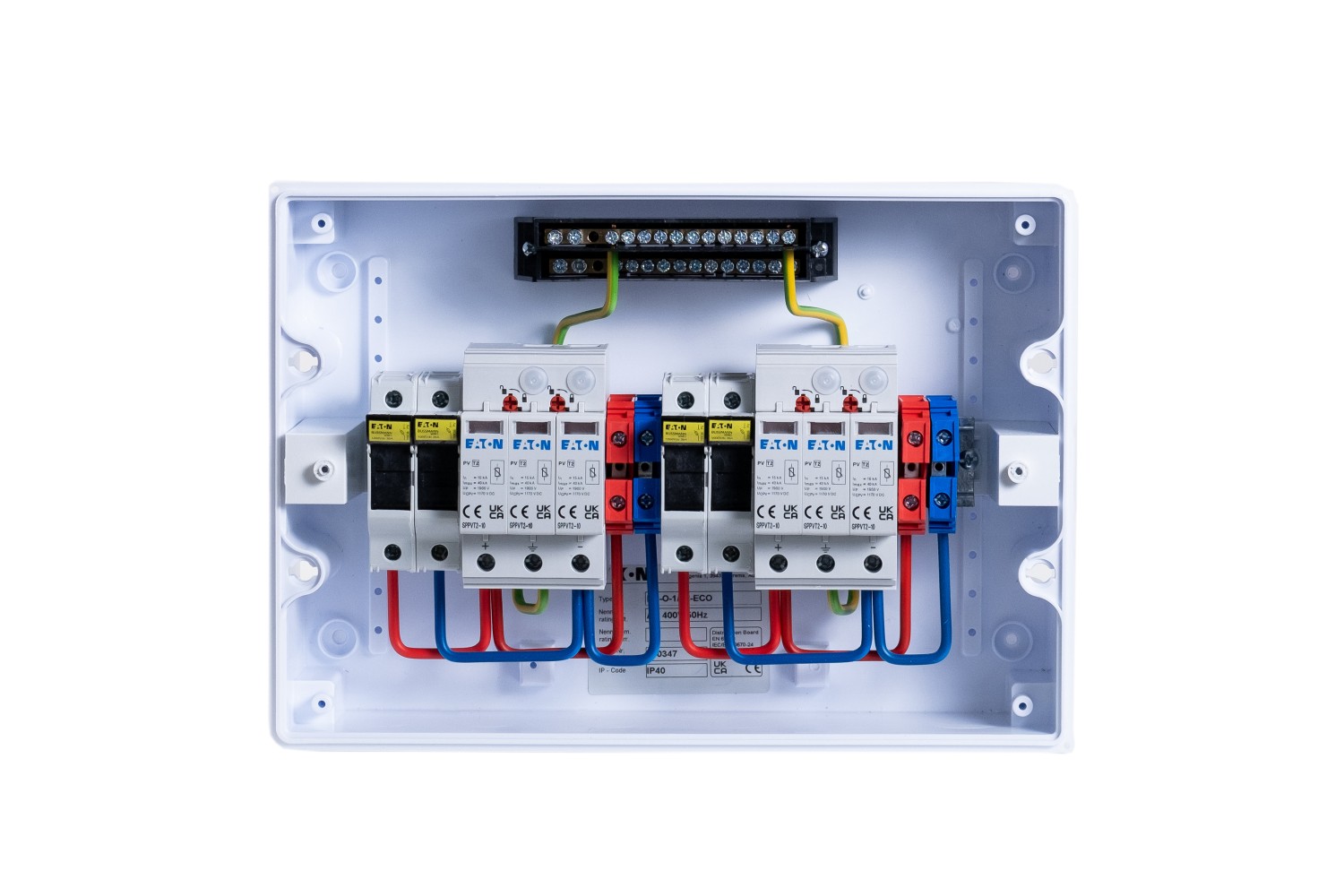

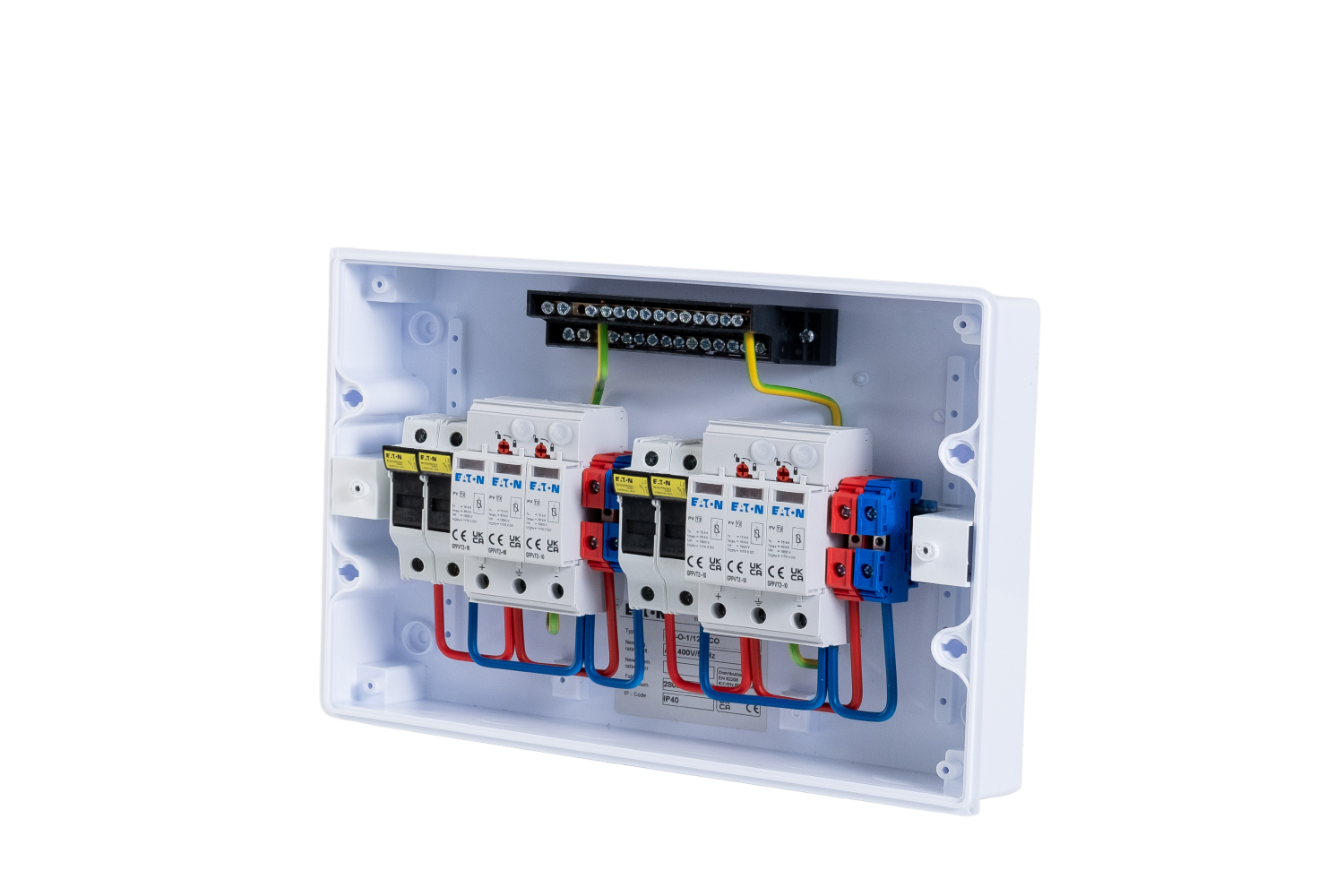

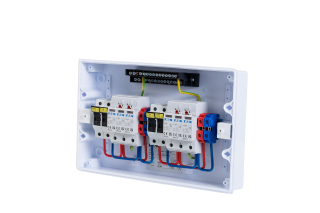

The switchboard is equipped with a DC surge arrester and fuse disconnectors including gPV fuses to protect the DC input to the inverter.

Suitable to combine with switchboards for the AC part of the installation fitted in EATON BC-O-1/12-ECO switchboards.

Main parameters

Use	Systems without backup circuits
Use	Systems with selected backup circuits
Use	Systems with backup of two sockets
Use	Manual full back-up systems of the whole house
Use	Full back-up systems of the entire house automation
Inverter type	All types of inverters

Other parameters

UV resistance	No
IP coverage	40/20
Number of strings	2

Inverter parameters

Inverter power (max. kW)	3.7kW
Inverter power (max. kW)	11kW
Inverter power (max. kW)	13.8kW
Inverter power (max. kW)	17.3kW
Inverter power (max. kW)	22.1kW
Inverter power (max. kW)	27.6kW
Inverter power (max. kW)	34.5kW
Inverter power (max. kW)	43.5kW
Inverter power (max. kW)	55.2kW
Inverter power (max. kW)	69.0kW
Inverter power (max. kW)	86.3kW
Inverter power (max. kW)	110.4kW
Suitable for hybrid inverters	Yes
Suitable for mains inverters	Yes

Inverter brands

Suitable for Growatt	Yes
suitable for Solis	Yes
Suitable for GoodWe	Yes
Suitable for DEYE	Yes
Suitable for Solax	Yes

Code	Manufacturer	Product	Description	Number of pieces
280347	EATON	BC-O-1/12-ECO	Switchboard ON plaster, transparent plastic. door, 1 row, 12 modules	1
176090	EATON	SPPVT2-10-2+PE	Surge arrester T2 (II, C), photovoltaic applications 1000V DC, max. short-circuit current 160A	2
2625085	EATON/ETI/OEZ	CH10x38 gPV 15A/1000V DC	Ultra-fast cylindrical fuse for photovoltaics, (UL standard), 10x38mm, 1100V DC, 15A	4
CHPV2U	EATON	CHPV2U	Fuse disconnector, photovoltaic applications, 2-pole, 1000V AC / 30A, C10 (10x38mm)	2
