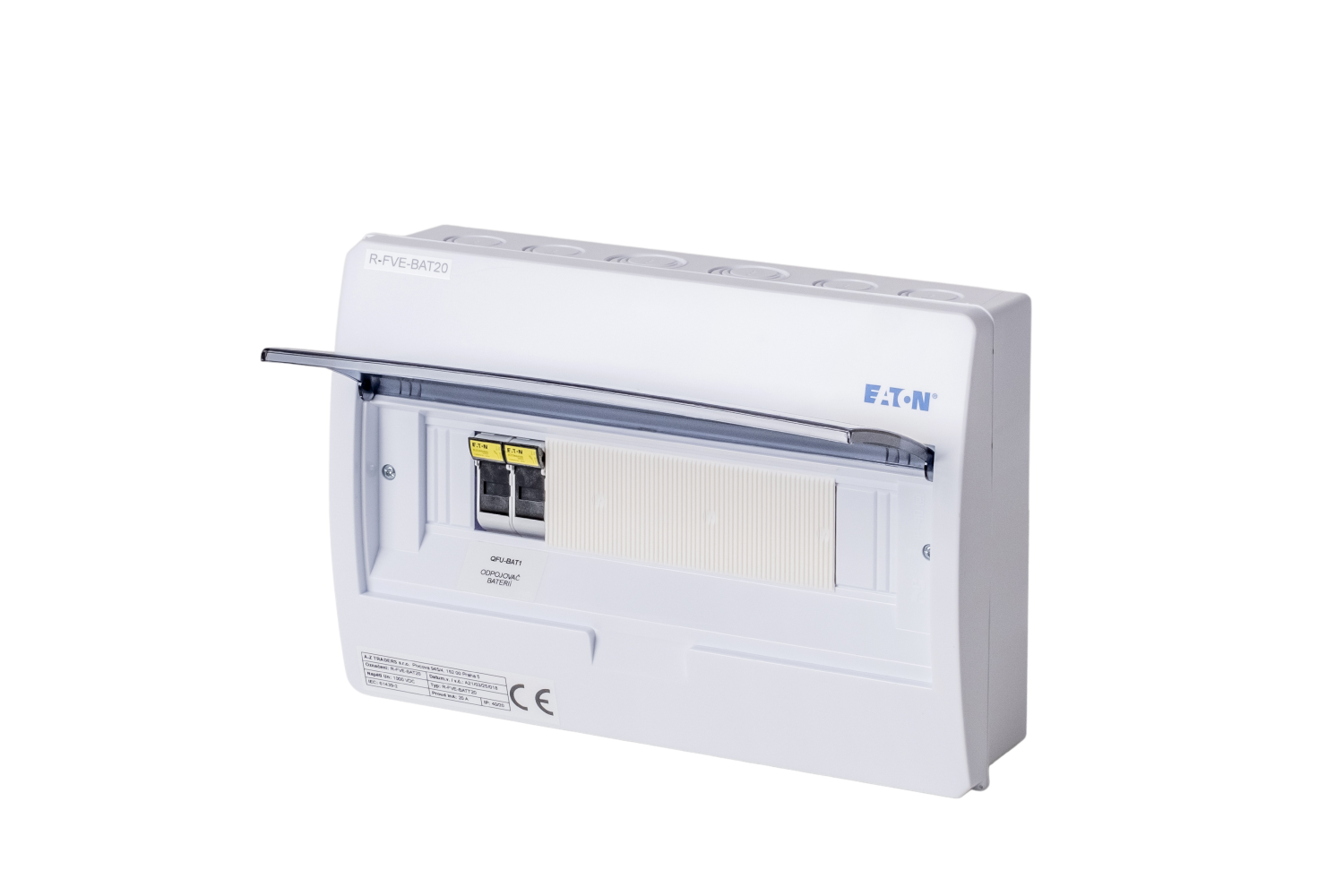

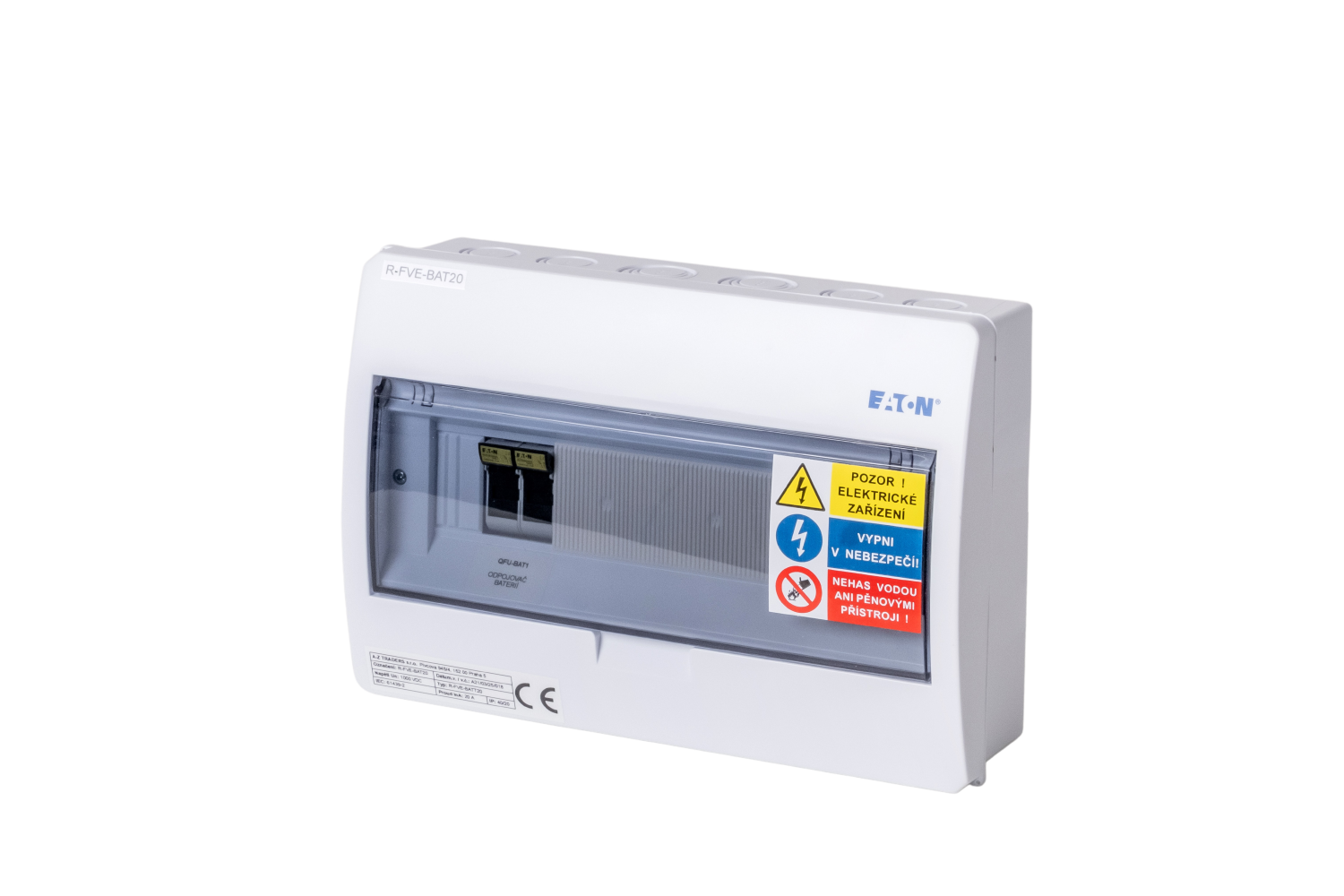

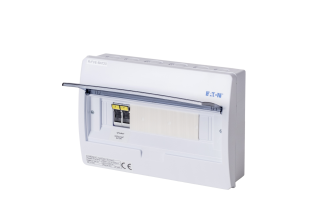

Switchboard R-FVE-BAT20

EAN: 8594217350154 SKU: R-FVE-BAT20

DC switchgear designed for wall mounting, IP40/20 serving as battery protection (at the inverter) for single-phase photovoltaic power plants (typically GoodWe 3648-EM and 3648D-ES inverter). So as to secure the battery input.

More information

Prices are visible only to registered users.

PRODUCT DESCRIPTION

Product description

Its advantage is its small size, the possibility to "stack" with other AC switchboards next to or below each other, which makes it possible to install them even in areas where there is a problem with a lack of free space.

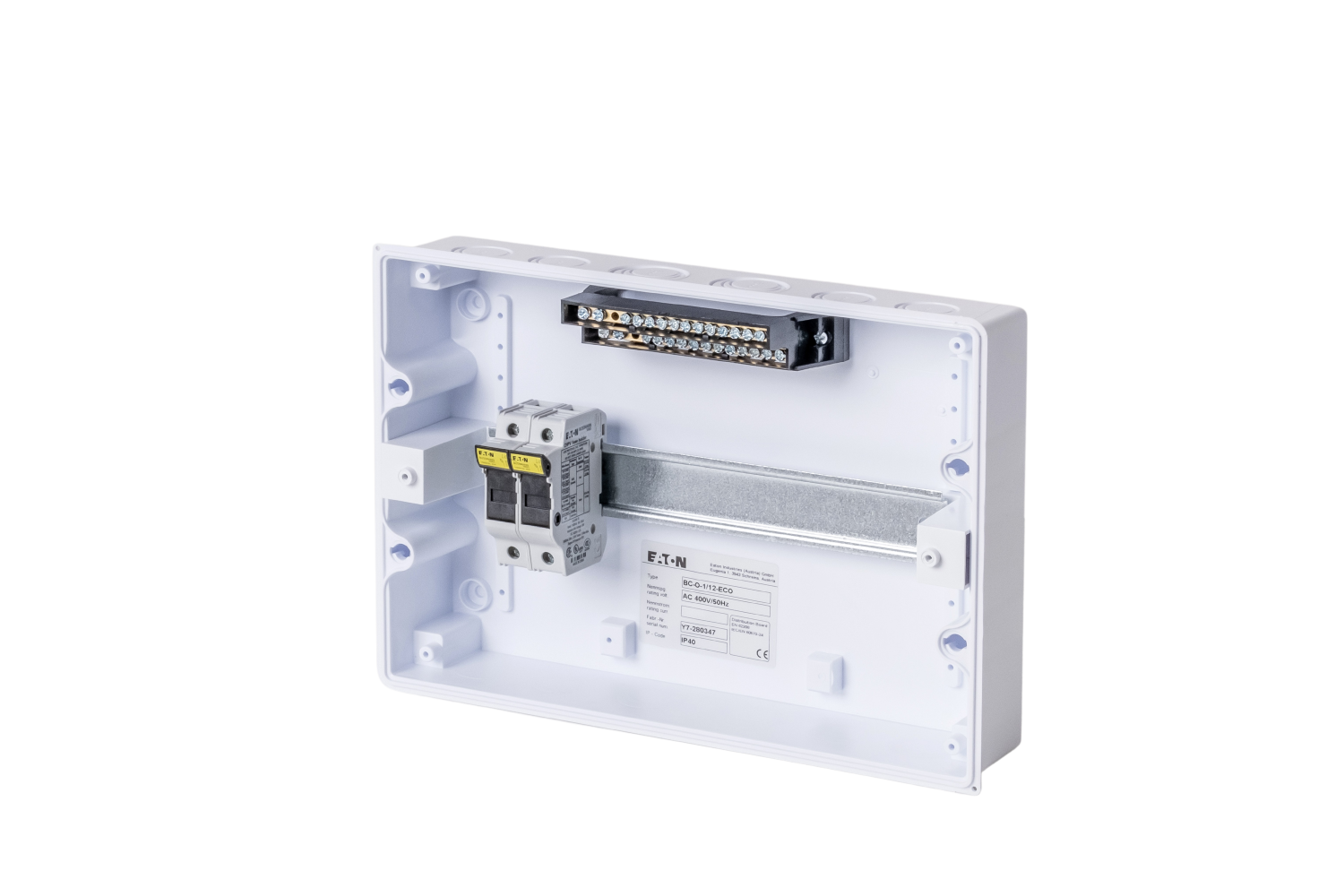

The switchboard is fitted with a fuse disconnector including a 20A gPV fuse to protect the input from the batteries.

Suitable to combine with switchboards for the AC part of the installation installed in EATON BC-O-1/12-ECO switchboards. Suitable to combine with R-FVE-DC1, R-FVE-DC2 and R-FVE-H switchgear.

Code	Manufacturer	Product	Description	Number of pieces
280347	EATON	BC-O-1/12-ECO	Switchboard ON plaster, transparent plastic. door, 1 row, 12 modules	1
CHPV2U	EATON	CHPV2U	Fuse disconnector, photovoltaic applications, 2-pole, 1000V AC / 30A, C10 (10x38mm)	1
2625081	EATON/ETI/OEZ	CH10x38 gPV 20A/1000V DC	Ultra-fast cylindrical fuse for photovoltaics, (UL standard), 10x38mm, 1100V DC, 20A	2
