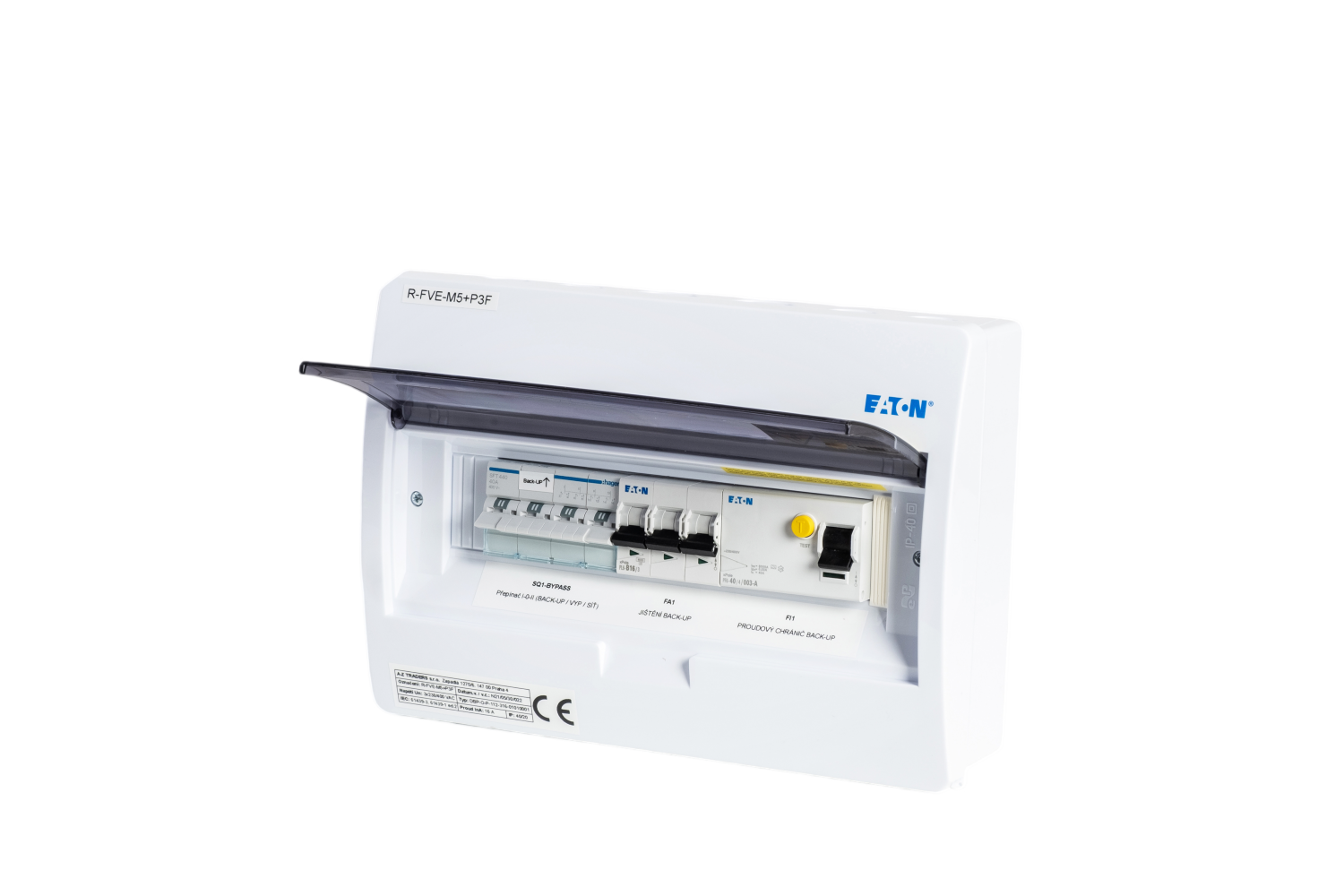

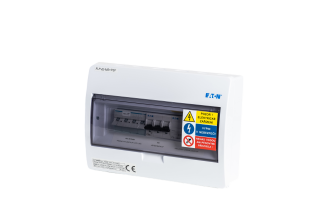

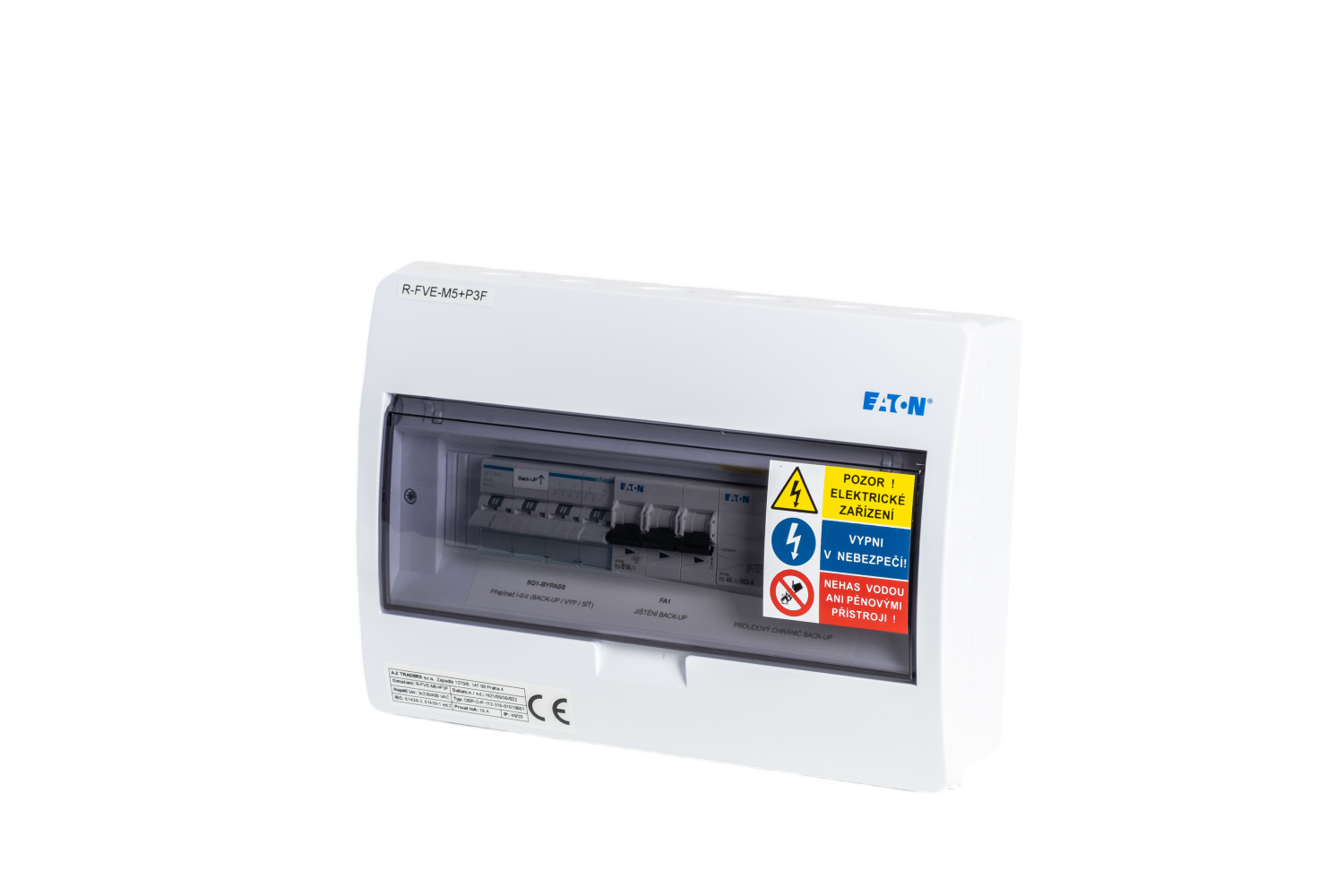

Switchgear R-FVE-M5+P3F

EAN: 8594217350338 SKU: R-FVE-M5+P3F

AC switchgear designed for wall mounting, IP40/20 serving as an output switchgear (at the inverter) for three-phase photovoltaic power plants (typically 4 to 10K-ET inverter) so as to ensure the protection of the output, including the circuit breaker and the switch, in the event of a fault or the inverter is switched off .

More information

Prices are visible only to registered users.

PRODUCT DESCRIPTION

Product description

Its advantage is its small size, the possibility of "stacking" with other AC switchboards next to each other or under each other, which makes it possible to install it even in a space where space is a problem.

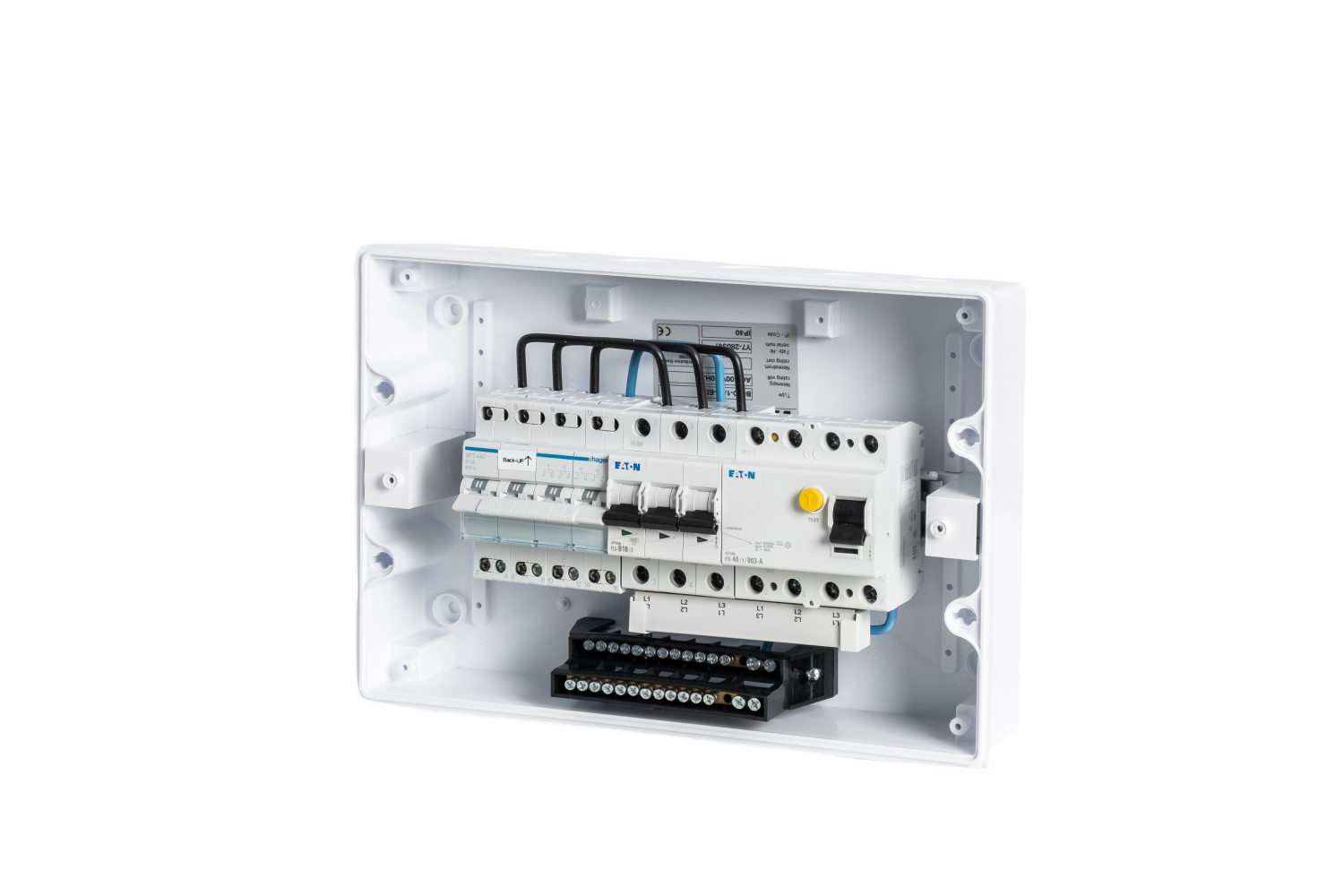

The switchboard is fitted with a B16/3 circuit breaker to protect the output from the backup of the inverter, a type A current protector and a manual four-pole switch for bridging the backup circuits during servicing or switching off the inverter.

It is suitable to combine with the switchboard R-FVE-DC1, R-FVE-DC2 for the direct current part of the installation and the switchboard R-FVE-M4 intended for the input of the inverter.

Main parameters

Use	Systems with selected backup circuits
Inverter type	Without measurement / It is not placed in the switchboard

Other parameters

UV resistance	No
IP coverage	40/20
Inverter circuit breaker	16
Number of phases	3

Inverter parameters

Inverter power (max. kW)	11kW
Suitable for hybrid inverters	Yes
Suitable for mains inverters	Yes

Inverter brands

Suitable for Growatt	Yes
suitable for Solis	Yes
Suitable for GoodWe	Yes
Suitable for DEYE	Yes
Suitable for Solax	Yes

Distribution board layout

Option of two inverters

Code	Manufacturer	Product	Description	Number of pieces
280347	EATON	BC-O-1/12-ECO	Switchboard ON plaster, transparent plastic. door, 1 row, 12 modules	1
286589	EATON	PL6-B16/3	Circuit breaker PL6, char B, 3-pole, Icn=6kA, In=16A	1
112933	EATON	PF6-40/4/003-A	Protector Ir=250A, type A, 4-pole, Idn=0.03A, In=40A	1
SFT440	HAGER	PREPINAC SITI SFT440 (I-0-II) 4P/40A	Group switch (I-0-II) 4P / 40A - output contact up	1
