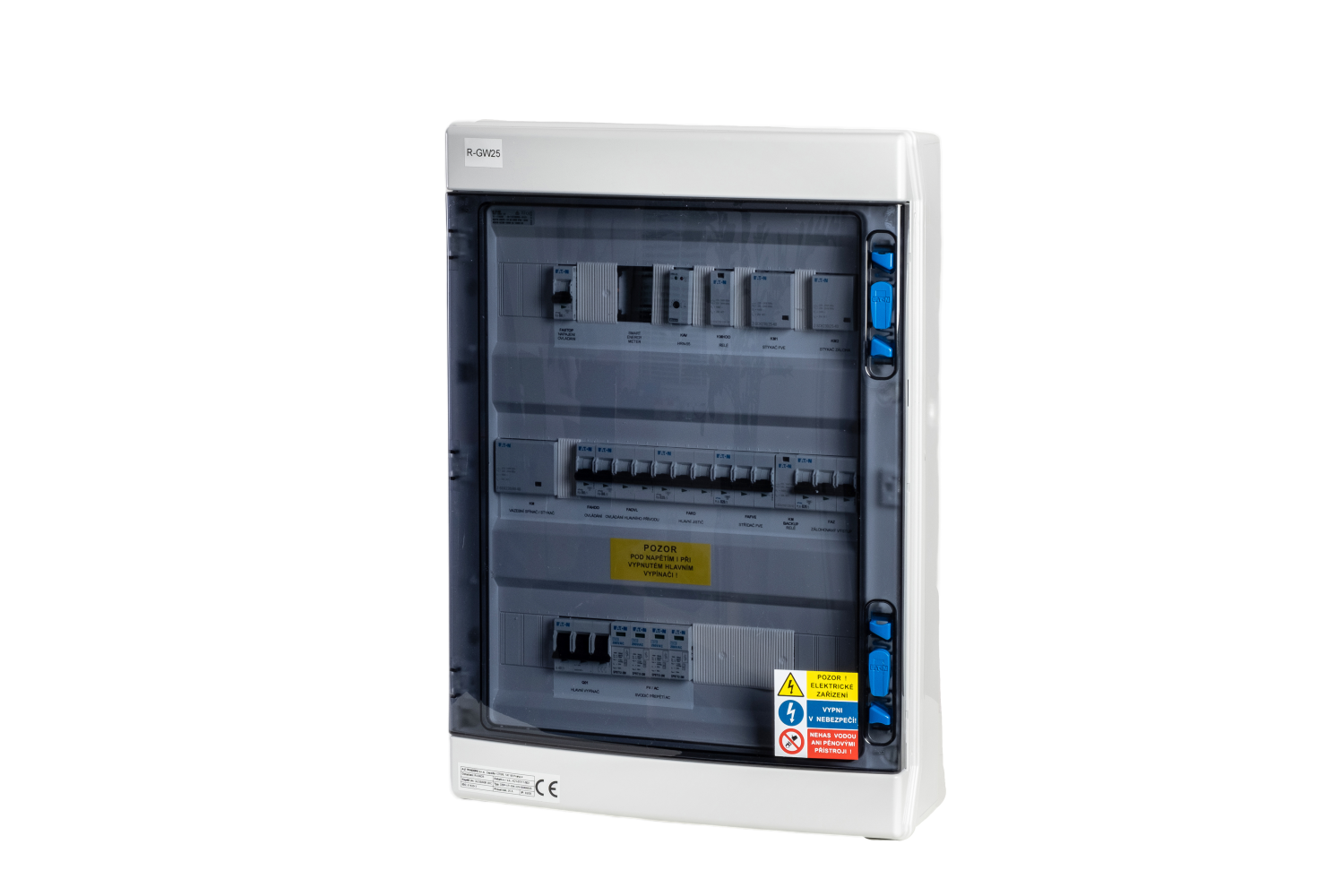

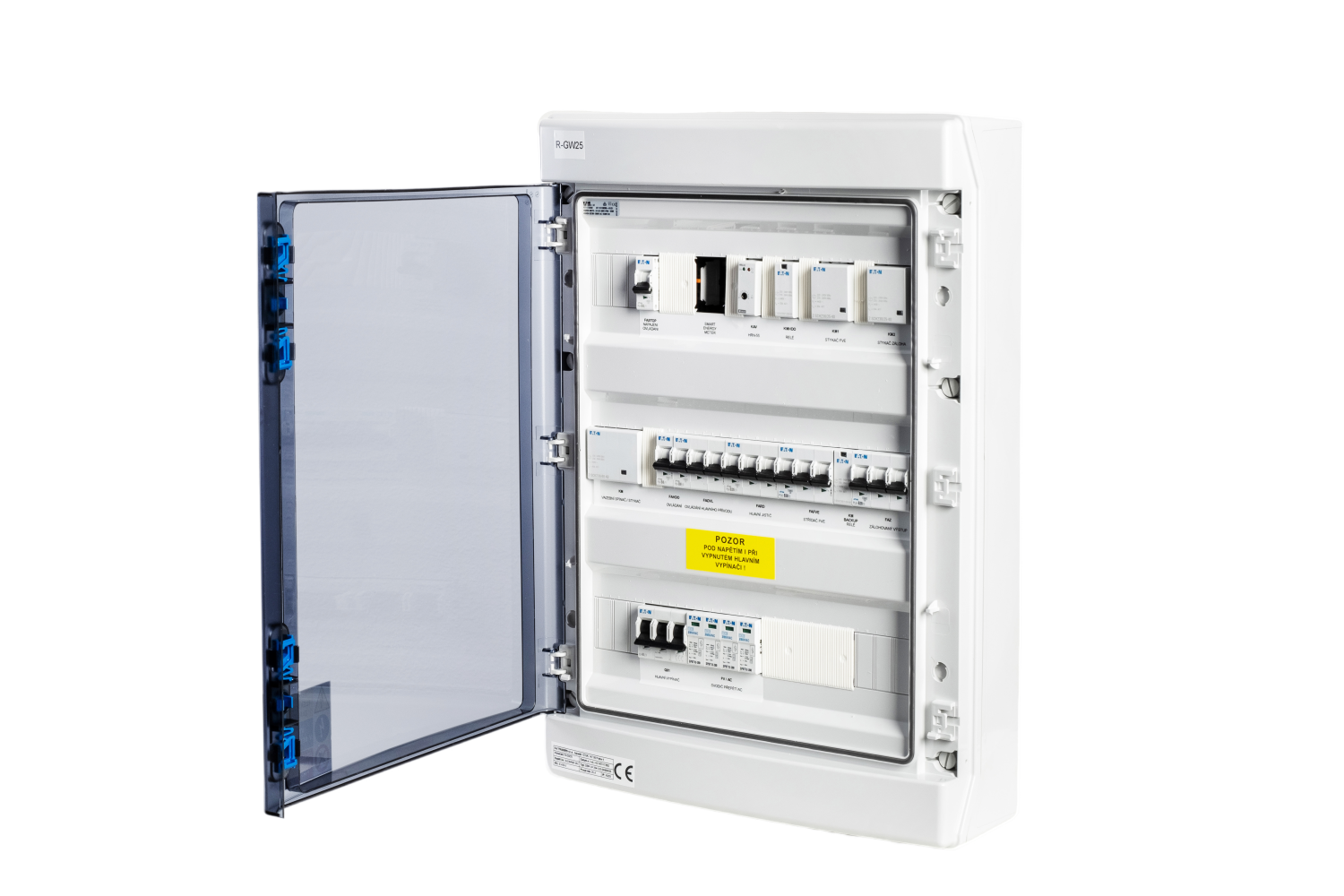

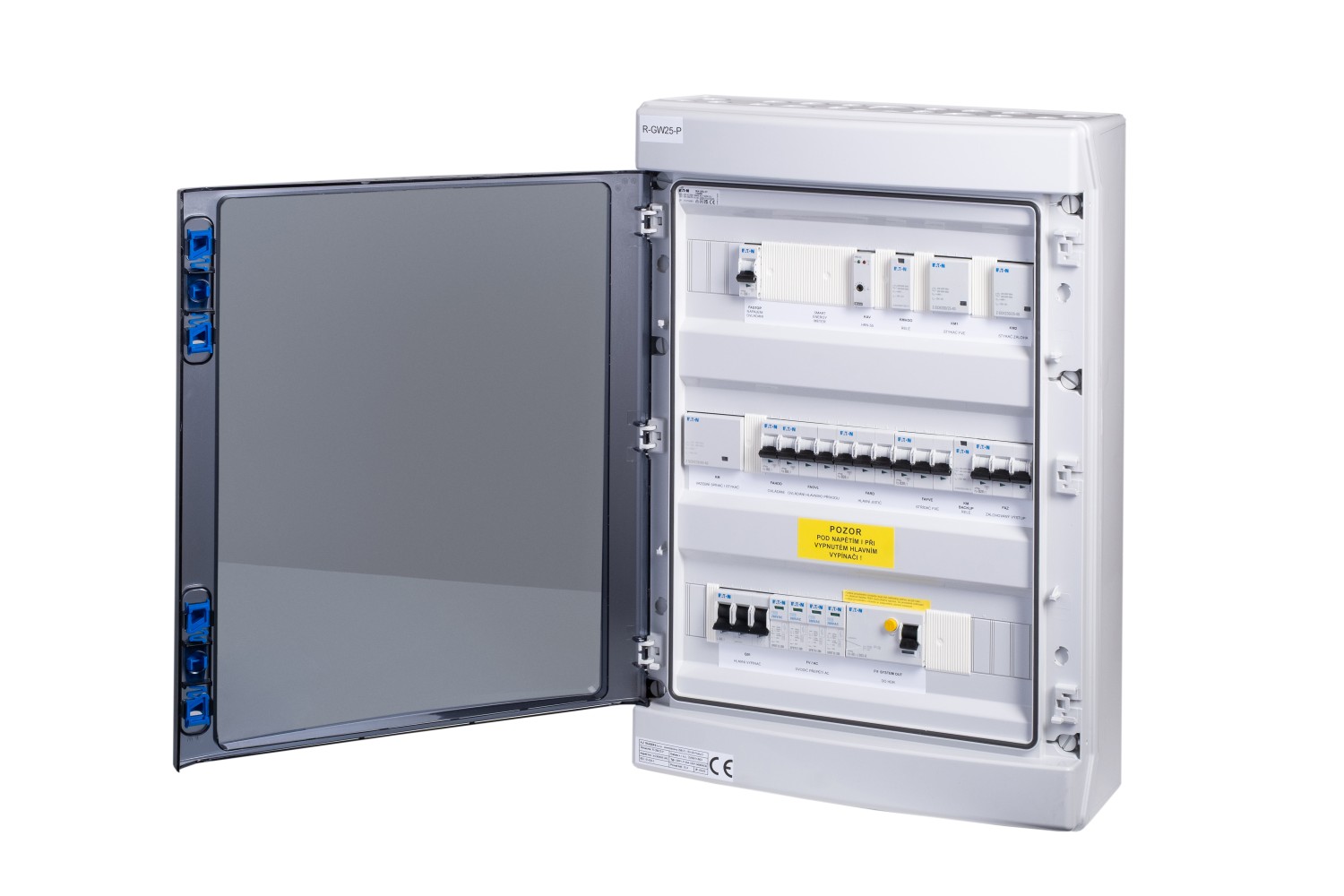

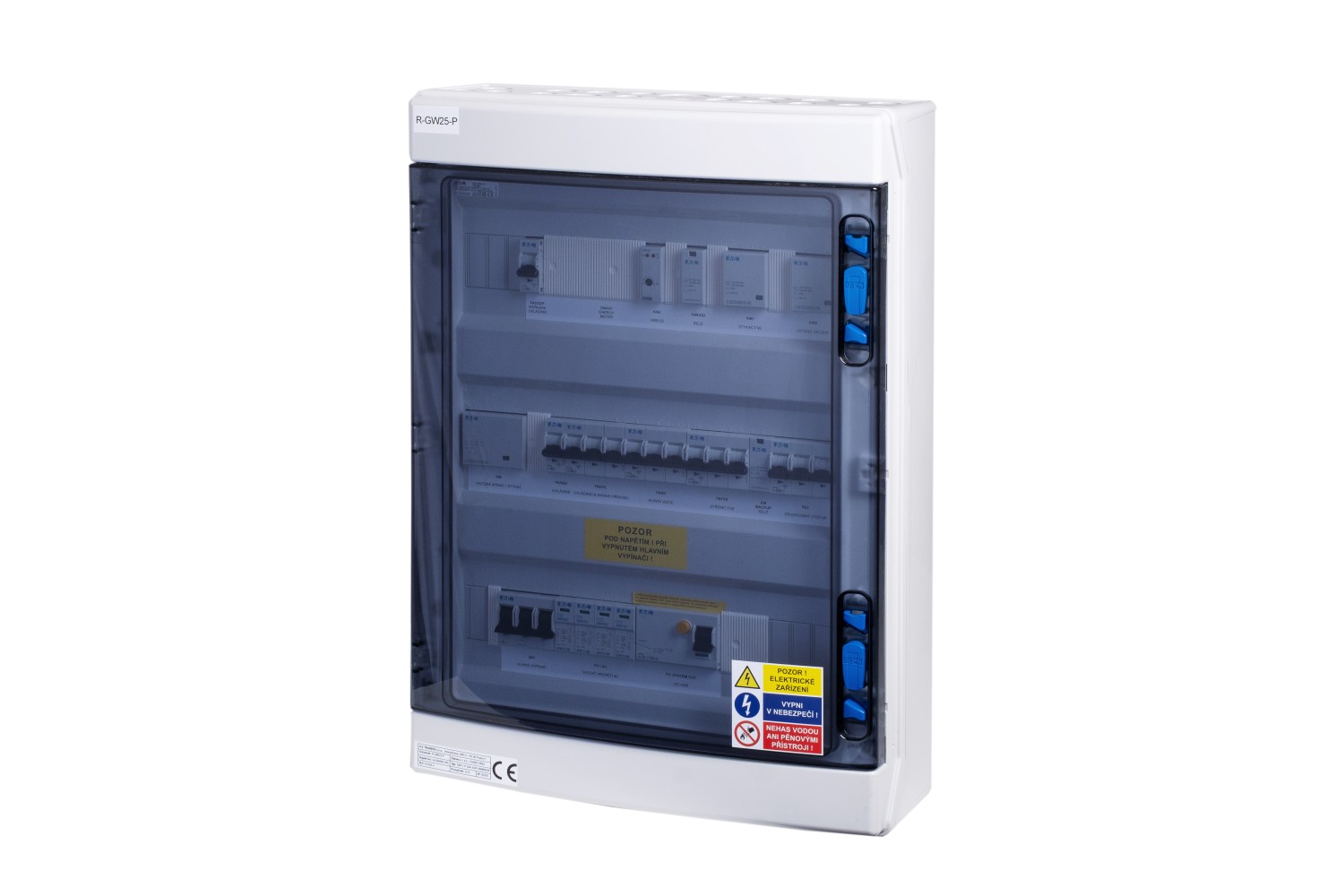

Switchgear R-FVE-GW25-P – protection class I+II

AC switchgear designed for wall mounting, IP65 used to operate a three-phase photovoltaic power plant (typically a Goodwe 4 to 10K-ET inverter).

Prices are visible only to registered users.
PRODUCT DESCRIPTION

PDF Product description

AC switchgear designed for wall mounting, IP65 used to operate a three-phase photovoltaic power plant (typically a Goodwe 4 to 10K-ET inverter).

Its advantage is the automatic switching between standard operation from the network and backup. It is necessary to control the load during a power failure to avoid overloading, as its function switches the whole house to inverter backup.

An indisputable advantage is the minimal intervention in the customer's switchboard - the Smartmeter (inverter measurement), the common breakdown point and all fuses are part of this switchboard. It is enough to make a loop between hl. switchgear and technology placement.

Note The Smartmeter is not part of the delivery of AZ TRADERS.sro If the customer supplies Smartmeters, we are able to install them in the switchboards.

The switchboard is also equipped with emergency disconnection of the HDO inverter (N0%) and preparation for the installation of the FIRE-SAFETY solution. The GW25 type is designed for the main breaker in the 25A pole.

There is a slight time delay when switching (switching of contactors) - so it is not a fail-safe backup solution

Main parameters

UseFull back-up systems of the entire house automation

Other parameters

Weight9.2kg

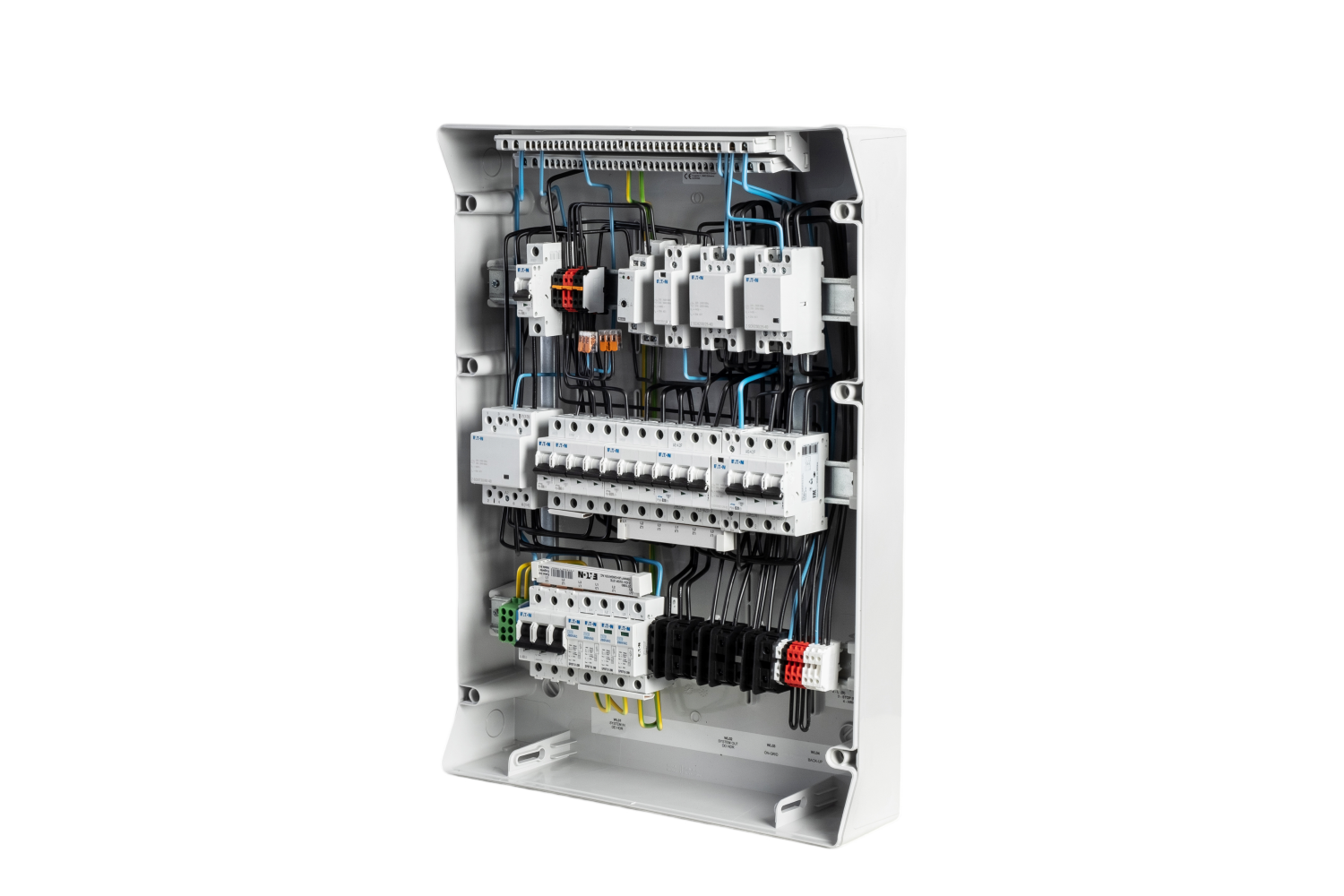

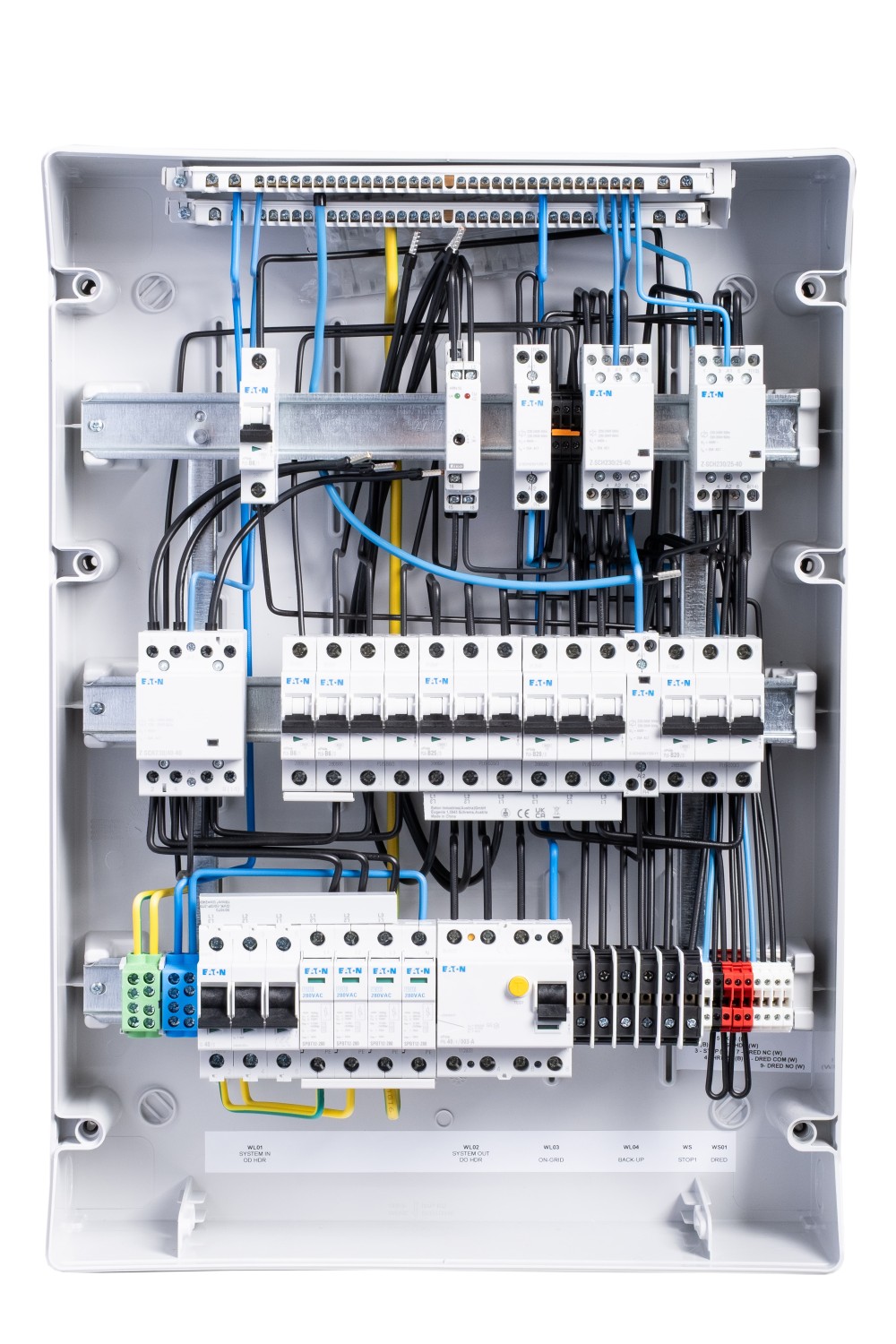

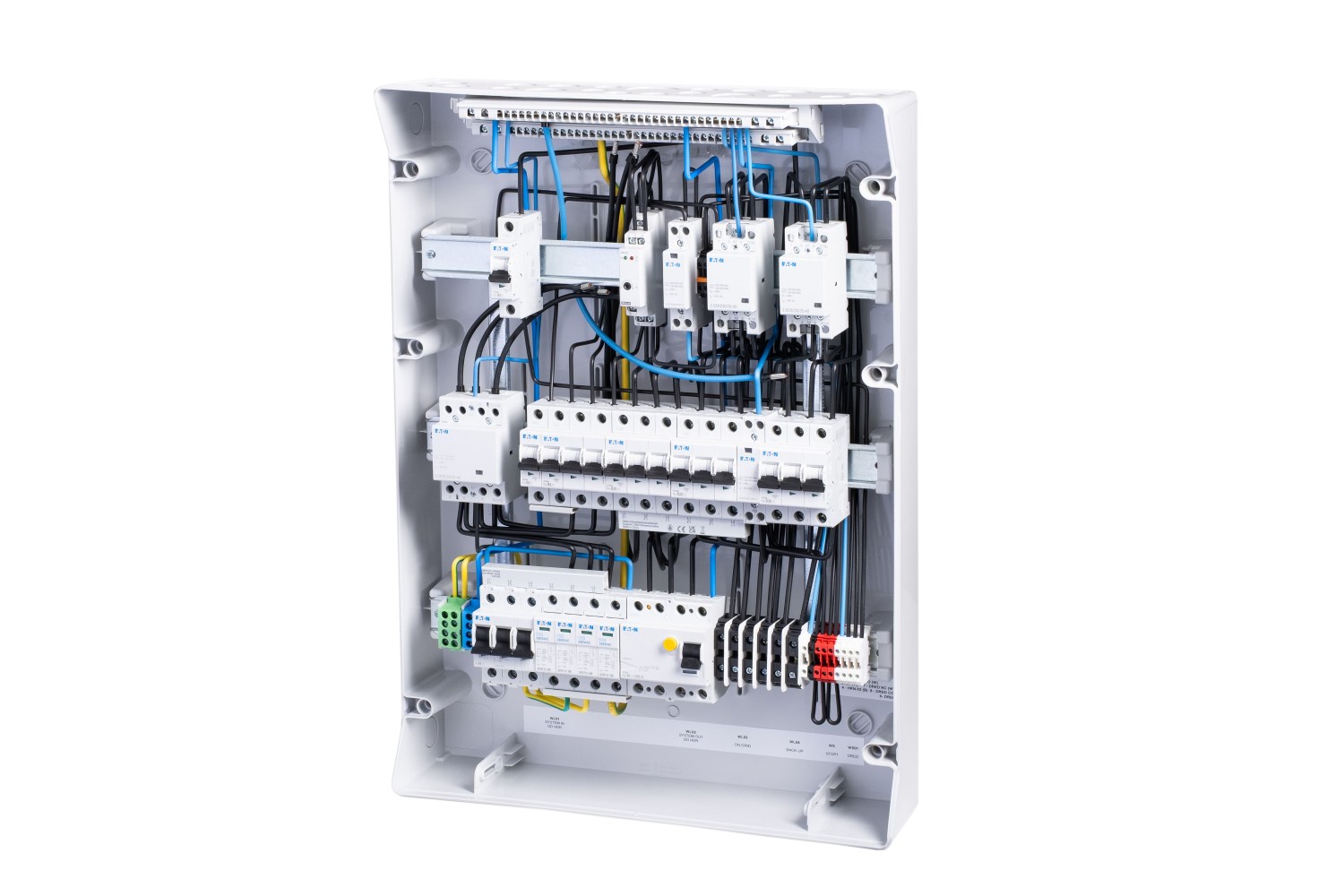

Code Manufacturer Product Description Number of pieces
174202 EATON IKA-3/54-ST Switchboard ON IP65 plaster, transparent door, 3 rows, 54 modules 1
158331 EATON SPBT12-280/4 Surge arrester class T1+T2 (B+C), 4-pole set for TN-S 1
276272 EATON IS-40/3 Main switch, 240V, 40A, 3HP 1
286518 EATON PL6-B6/1 Circuit breaker PL6, characteristic B, 1-pole, Icn=6kA, In=6A 2
286521 EATON PL6-B16/1 Circuit breaker PL6, characteristic B, 1-pole, Icn=6kA, In=16A 1
3722 ELKO EP HRN-55 Monitoring voltage relay 1
40.52.8.230.0000 FINDER 2P/8A 230VAC 40.52.8.230.0000 Relay 1NC, 1NO 1
193886 EATON Z-SCH230/1/25-11 Installation contactor, 230VAC/50Hz, 1S, 1R, 25A 1
248847 EATON Z-SCH230/25-40 Installation contactor, 230VAC/50Hz, 4S, 25A 2
248852 EATON Z-SCH-230/40-40 Installation contactor, 230VAC/50Hz, 4S, 40A 1
286586 EATON PL6-B6/3 Circuit breaker PL6, characteristic B, 3-pole, Icn=6kA, In=6A 1
286589 EATON PL6-B16/3 Circuit breaker PL6, characteristic B, 3-pole, Icn=6kA, In=16A 1
286516 EATON PL6-B2/1 Circuit breaker PL6, characteristic B, 1-pole, Icn=6kA, In=2A 1
286590 EATON PL6-B20/3 Circuit breaker PL6, characteristic B, 3-pole, Icn=6kA, In=20A 2
VARIANTS

Switchboard R-FVE-GW25 – protection class I+II

In stock 6 pcs
prices after
registration
Detail
