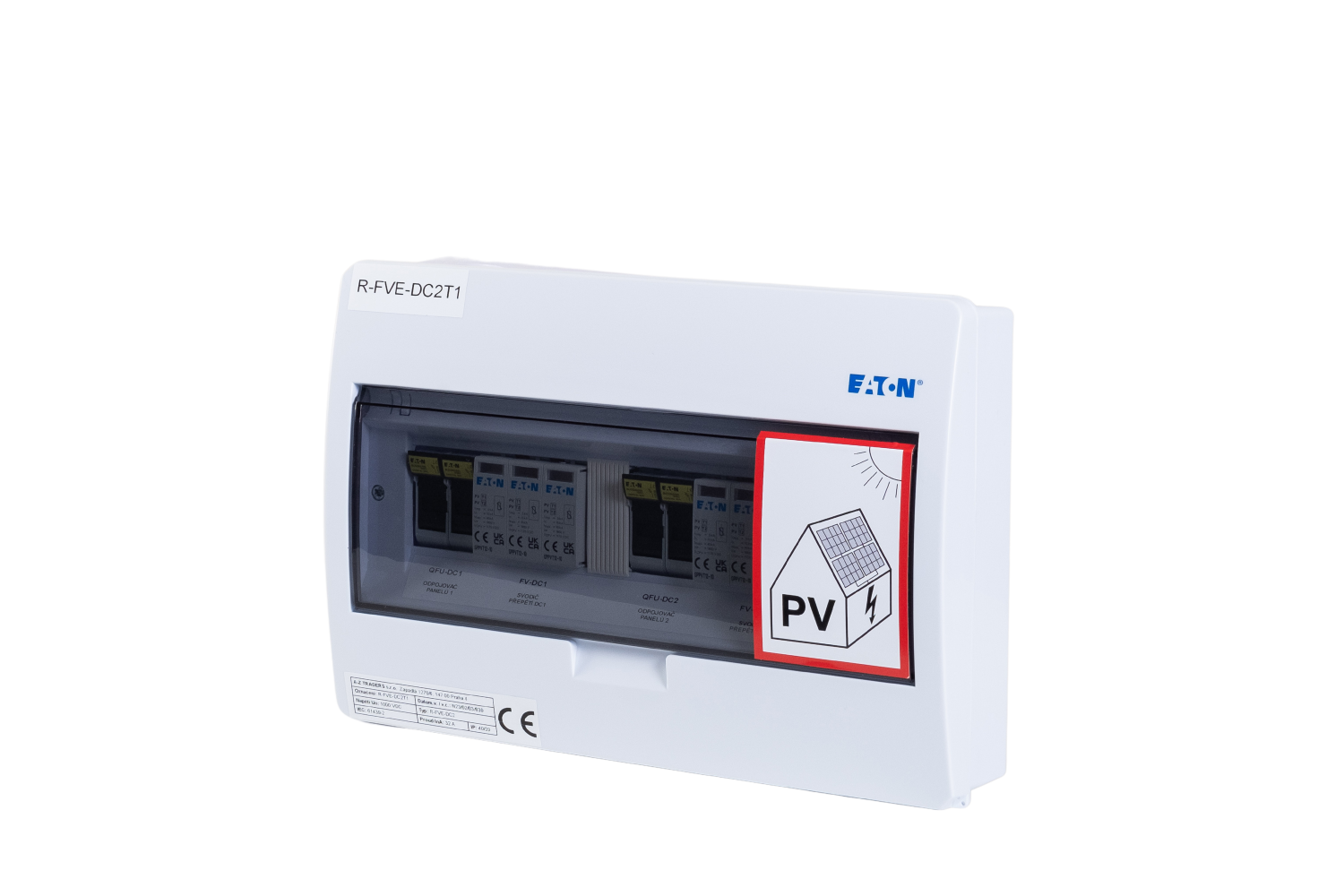

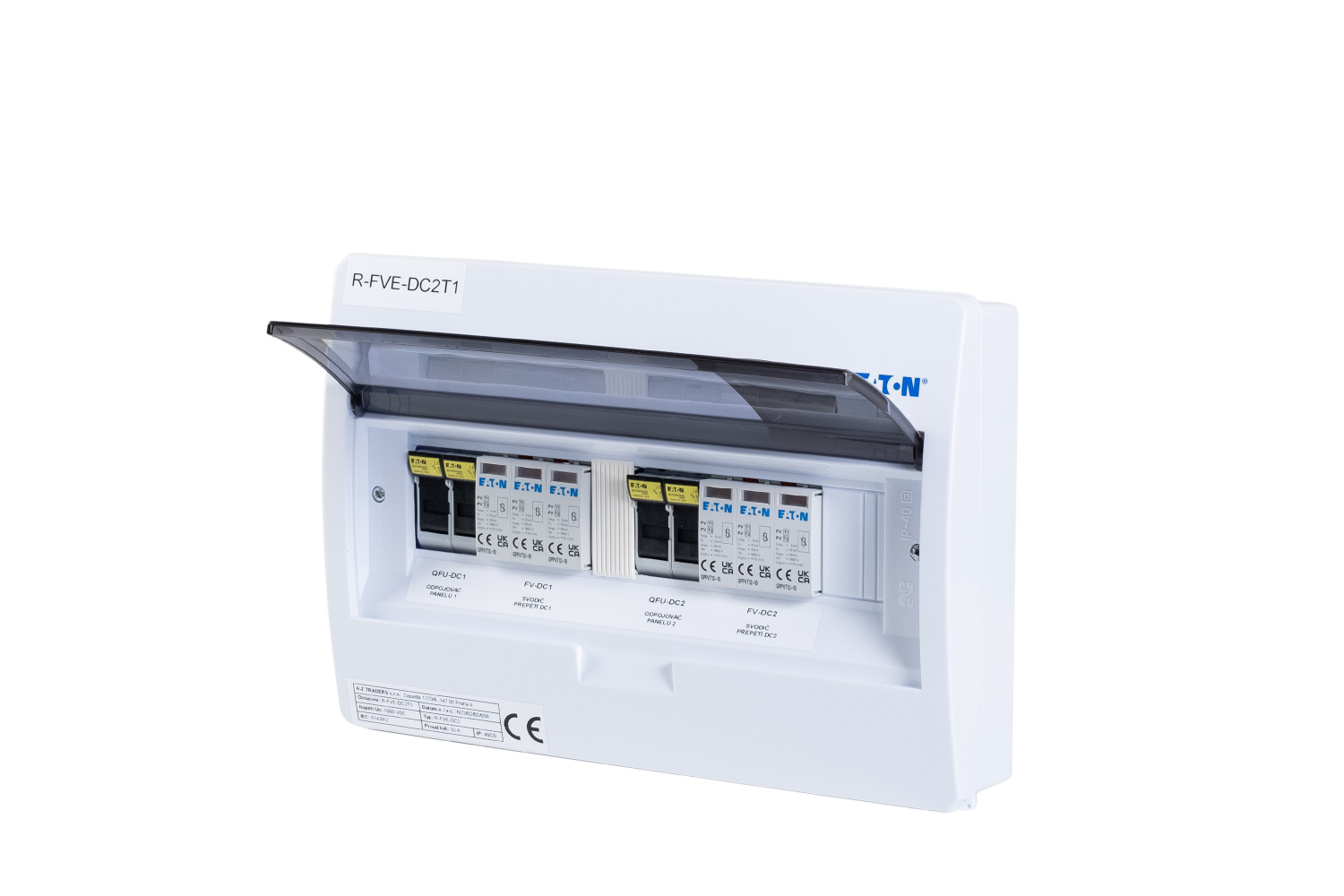

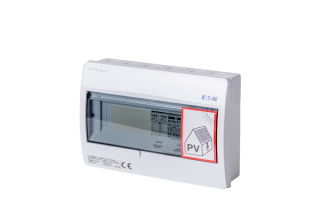

DC switchboard intended for wall mounting, IP40/20 serving as an input switchboard from photovoltaic panels (to the inverter) for the entire portfolio of photovoltaic power plants. Especially when using other switchgears, also EATON BC-O-1/12-ECO.
DC switchboard intended for wall mounting, IP40/20 serving as an input switchboard from photovoltaic panels (to the inverter) for the entire portfolio of photovoltaic power plants. Especially when using other switchgears, also EATON BC-O-1/12-ECO.
Its advantage is its small size, the possibility to "stack" with other AC switchboards next to each other or under each other, which makes it possible to install them even in a space where it can be problematic to find enough free space.

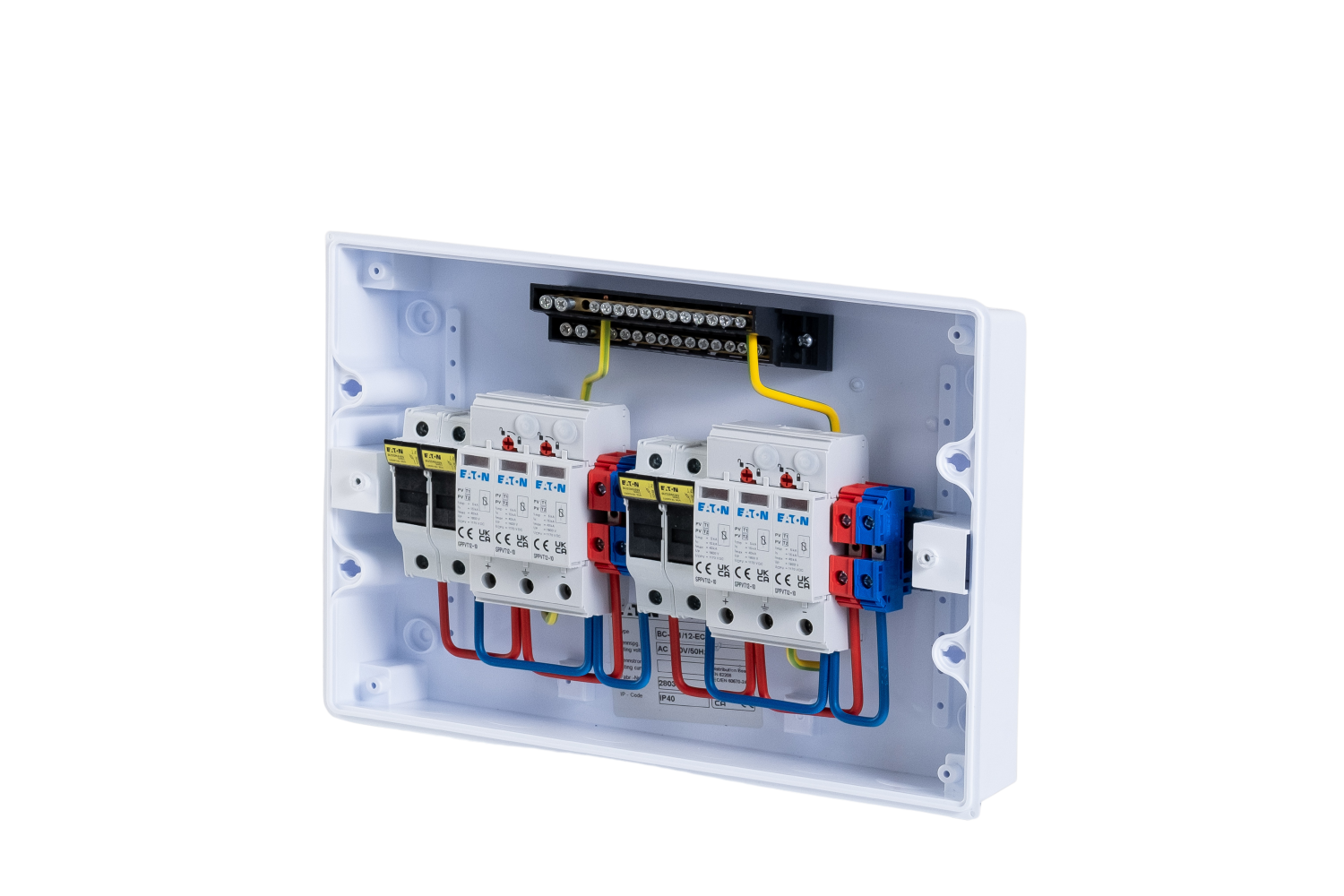

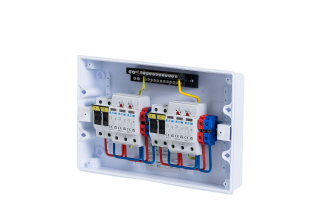

The switchboard is equipped with a DC overvoltage arrester with fuse disconnectors including gPV fuses to protect the DC input to the inverter.
Suitable to combine with switchboards for the AC part of the installation installed in EATON BC-O-1/12-ECO switchboards.
UV resistance | No |
IP coverage | 40/20 |
Number of strings | 2 |
Inverter power (max. kW) | 3.7kW |
Inverter power (max. kW) | 11kW |
Inverter power (max. kW) | 13.8kW |
Inverter power (max. kW) | 17.3kW |
Inverter power (max. kW) | 22.1kW |
Inverter power (max. kW) | 27.6kW |
Inverter power (max. kW) | 34.5kW |
Inverter power (max. kW) | 43.5kW |
Inverter power (max. kW) | 55.2kW |
Inverter power (max. kW) | 69.0kW |
Inverter power (max. kW) | 86.3kW |
Inverter power (max. kW) | 110.4kW |
Suitable for hybrid inverters | Yes |
Suitable for mains inverters | Yes |
Suitable for Growatt | Yes |
suitable for Solis | Yes |
Suitable for GoodWe | Yes |
Suitable for DEYE | Yes |
Suitable for Solax | Yes |
Code | Manufacturer | Product | Description | Number of pieces |
---|---|---|---|---|
280347 | EATON | BC-O-1/12-ECO | Switchboard ON plaster, transparent plastic. door, 1 row, 12 modules | 1 |
177256 | EATON | SPPVT12-10-2+PE | Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 1000V DC, max. short-circuit current 1000A | 2 |
2625085 | EATON/ETI/OEZ | CH10x38 gPV 15A/1000V DC | Ultra-fast cylindrical fuse for photovoltaics, (UL standard), 10x38mm, 1100V DC, 15A | 4 |
CHPV2U | EATON | CHPV2U | Fuse disconnector, photovoltaic applications, 2-pole, 1000V AC / 30A, C10 (10x38mm) | 2 |
