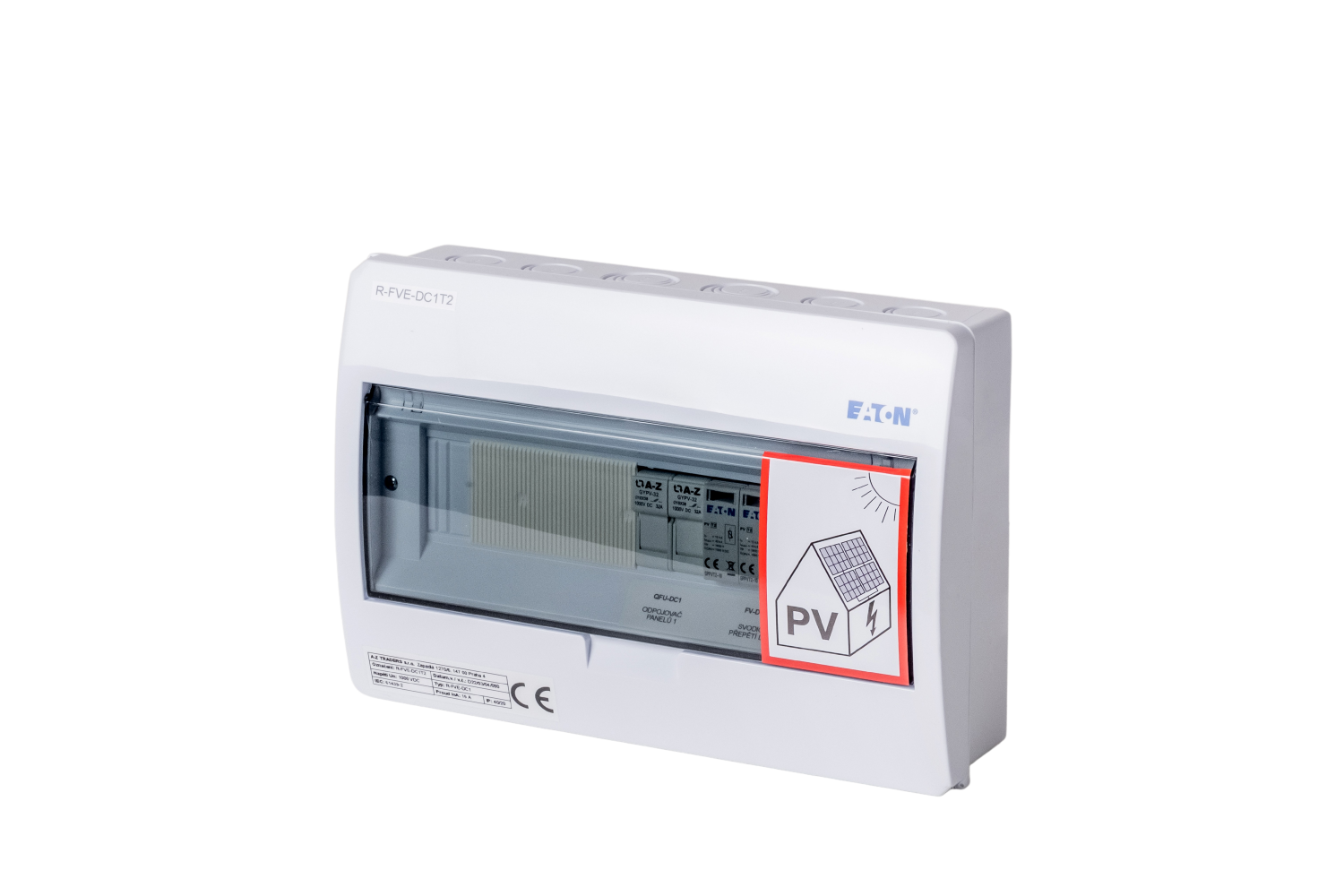

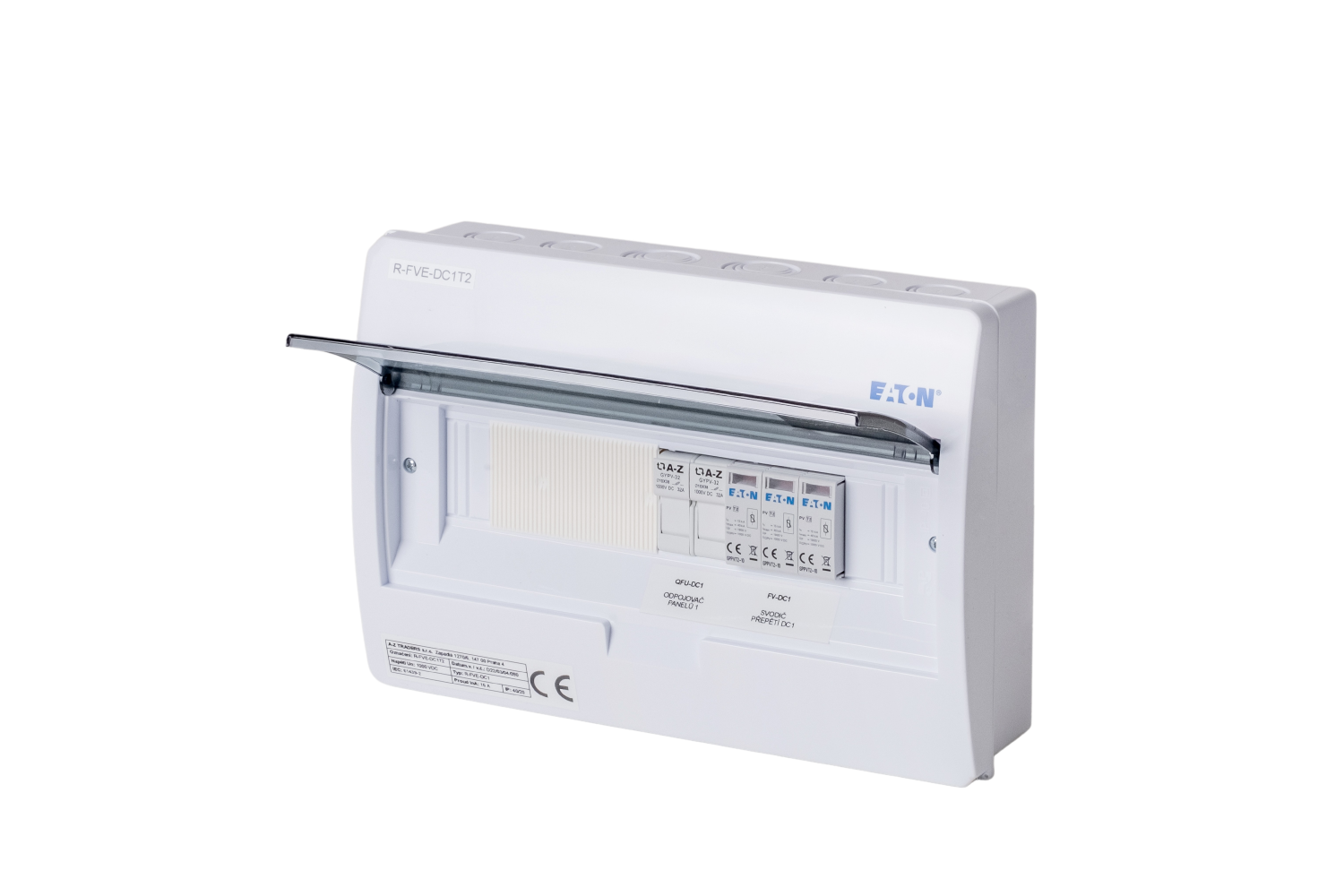

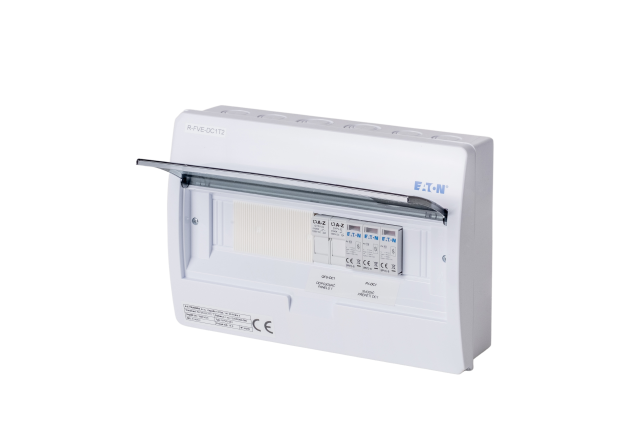

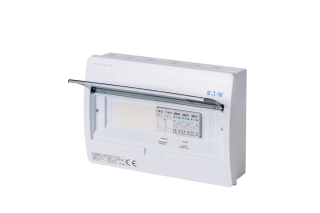

Switchgear R-FVE-DC1 - protection class II

EAN: 8594217350536 SKU: R-FVE-DC1T2

A complete certified switchboard protecting the DC line by max. voltage 1000 V. This type is intended for surface mounting and includes a two-pole fuse disconnector and a surge arrester to protect one string of the photovoltaic system.

More information

Prices are visible only to registered users.

PRODUCT DESCRIPTION

Product description

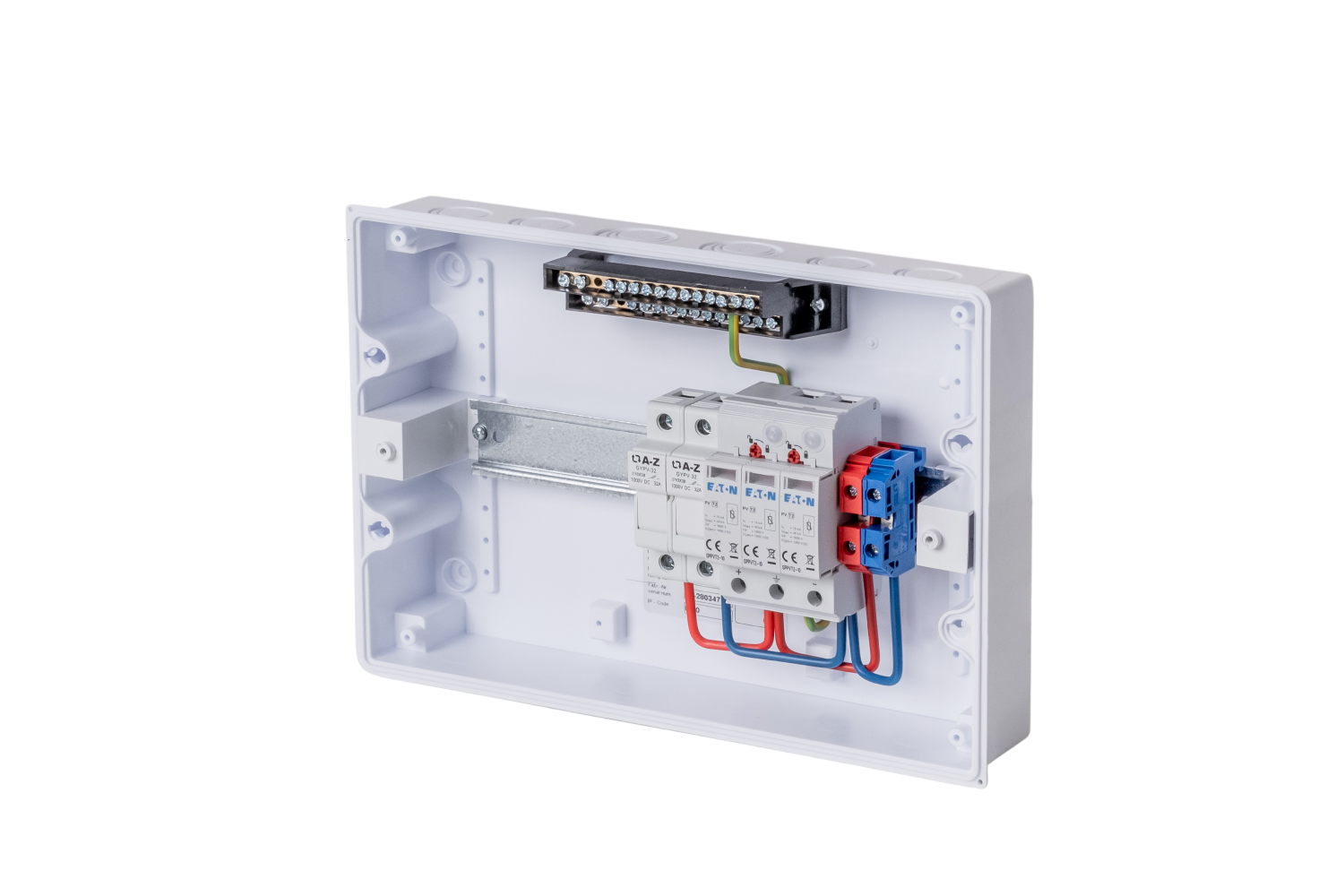

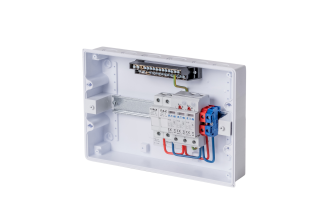

The individual components placed on the DIN rail are already interconnected, which ensures time savings during assembly.

Main parameters

Use	Systems without backup circuits
Use	Systems with selected backup circuits
Use	Systems with backup of two sockets
Use	Manual full back-up systems of the whole house
Use	Full back-up systems of the entire house automation
Inverter type	All types of inverters

Other parameters

UV resistance	No
IP coverage	40/20
Number of strings	1

Inverter parameters

Inverter power (max. kW)	3.7kW
Inverter power (max. kW)	11kW
Inverter power (max. kW)	13.8kW
Inverter power (max. kW)	17.3kW
Inverter power (max. kW)	22.1kW
Inverter power (max. kW)	27.6kW
Inverter power (max. kW)	34.5kW
Inverter power (max. kW)	43.5kW
Inverter power (max. kW)	55.2kW
Inverter power (max. kW)	69.0kW
Inverter power (max. kW)	86.3kW
Inverter power (max. kW)	110.4kW
Suitable for hybrid inverters	Yes
Suitable for mains inverters	Yes

Inverter brands

Suitable for Growatt	Yes
suitable for Solis	Yes
Suitable for GoodWe	Yes
Suitable for DEYE	Yes
Suitable for Solax	Yes

Code	Manufacturer	Product	Description	Number of pieces
280347	EATON	BC-O-1/12-ECO	Switchboard ON plaster, transparent plastic. door, 1 row, 12 modules	1
177256	EATON	SPPVT12-10-2+PE	Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 1000V DC, max. short-circuit current 1000A	1
2625085	EATON/ETI/OEZ	CH10x38 gPV 16A/1000V DC	Ultra fast cylindrical fuse for photovoltaics, (UL standard), 10x38mm, 1100V DC, 15A	2
CHPV2U	EATON	CHPV2U	Fuse disconnector, photovoltaic applications, 2-pole, 1000V AC / 30A, C10 (10x38mm)	1
