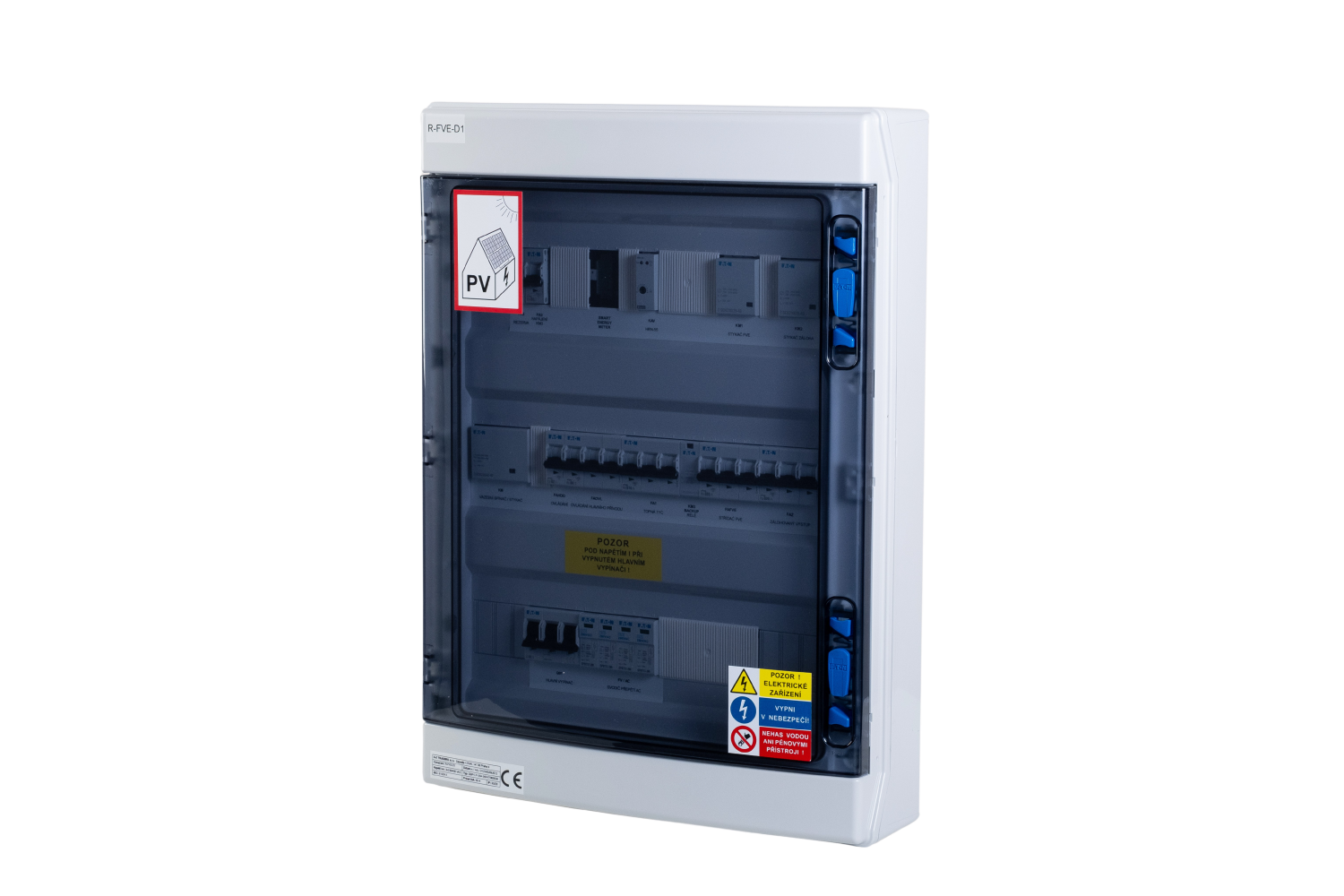

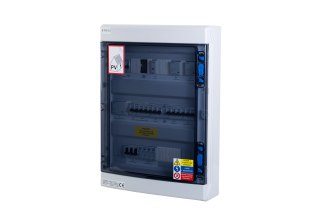

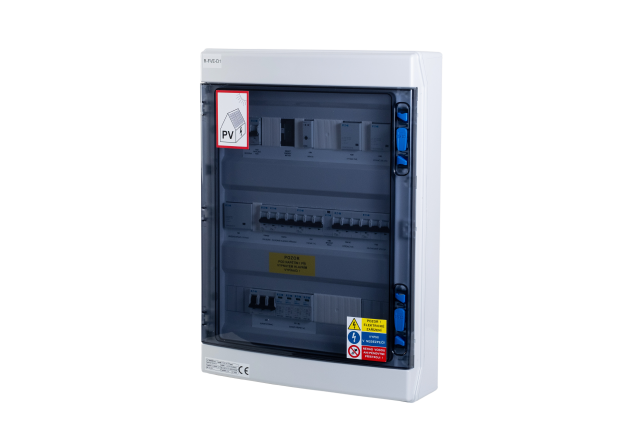

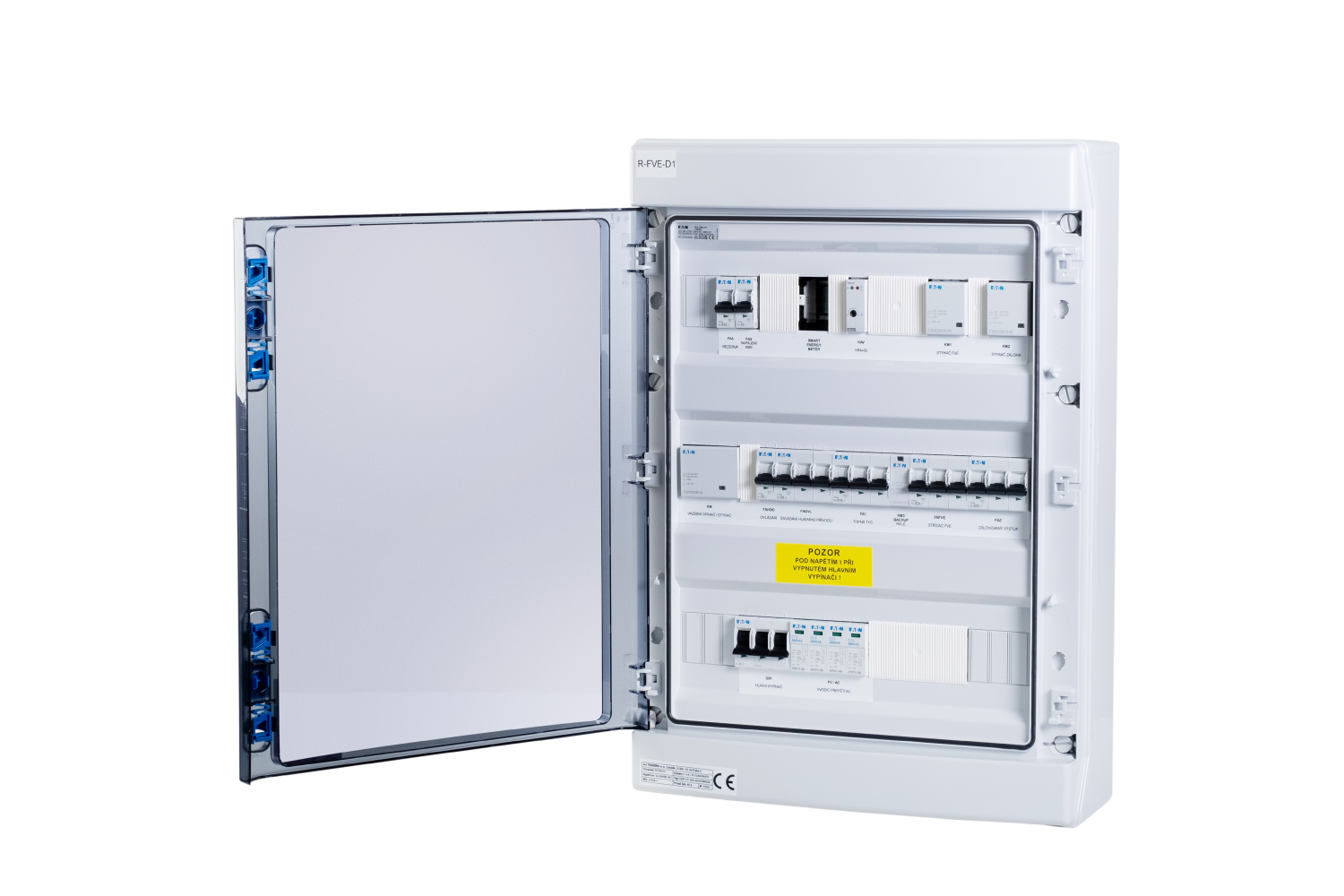

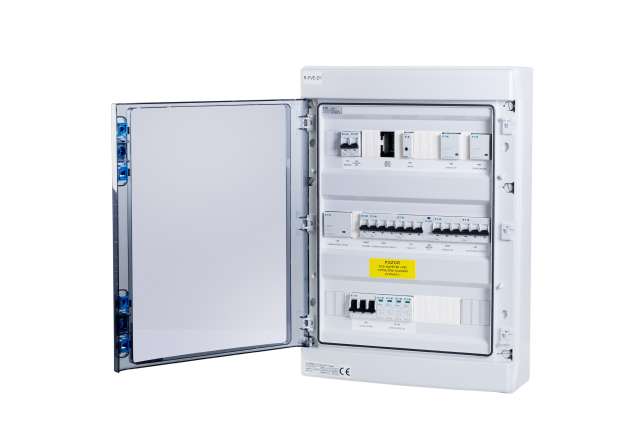

Switchgear R-FVE-D1

AC switchboard designed for wall mounting, IP65, used to operate a three-phase photovoltaic power plant (typically a GoodWe 4 to 10K-ET inverter).

Prices are visible only to registered users.
PRODUCT DESCRIPTION

PDF Product description

AC switchboard designed for wall mounting, IP65, used to operate a three-phase photovoltaic power plant (typically a GoodWe 4 to 10K-ET inverter).

Its advantage is the automatic switching between standard operation from the grid and backup. It is necessary to control the load during a power outage to avoid overload, because its function switches the entire house to the inverter backup.

The undisputed advantage is the minimal intervention in the customer's switchboard - Smartmeter (inverter measurement) common breakdown point and all fuses are part of this switchboard. So it is enough to make a loop between the main switchboard and the location of the technology. The switchboard also has a crisis disconnection of the inverter HDO (N0%) The R-FVE-D1 switchboard is designed for the main circuit breaker in the column to the B40/3 circuit breaker .

Note: Smartmeter is not part of the AZ TRADERS sro delivery. If the customer supplies Smartmeters, we are able to install them in the switchboards.

There is a slight time delay when switching (contactor switching) - so it is not a fail-safe backup solution.

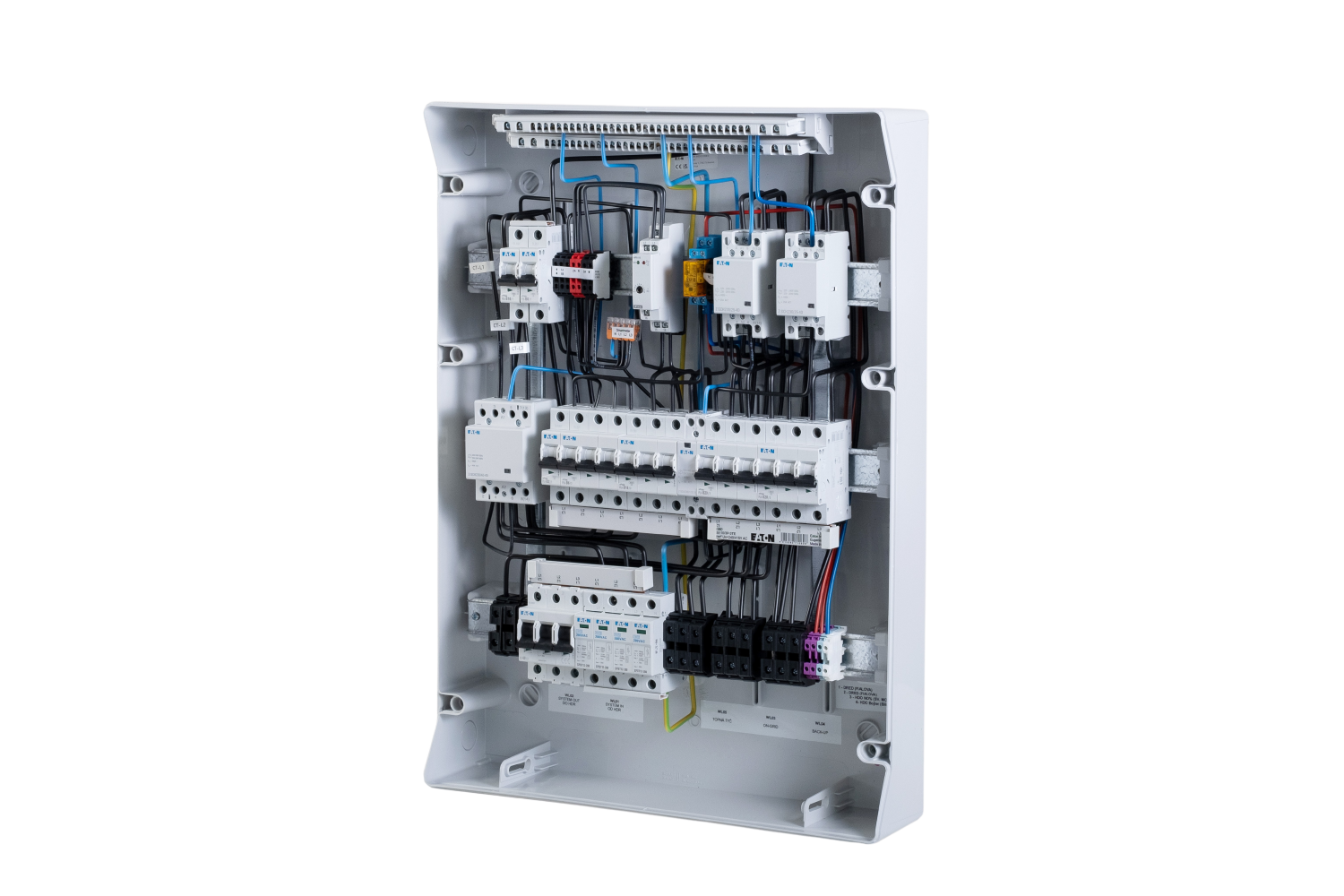

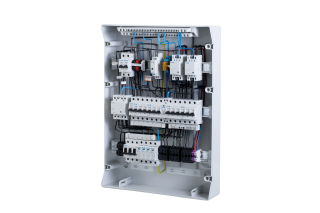

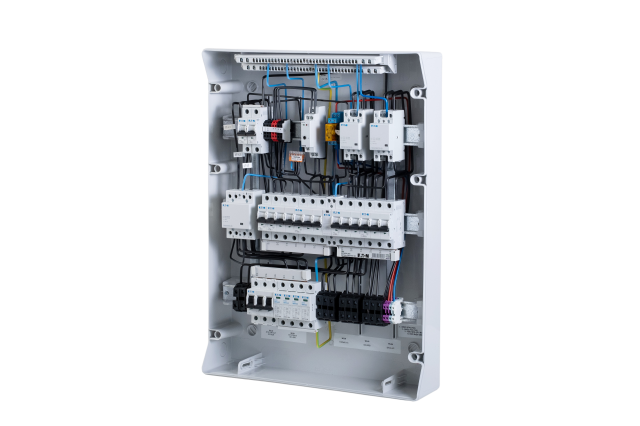

List of main components:

EATON IKA-3/54-ST switchboard, EATON SPBT12-280/4 class T1+T2 surge arrester, EATON IS40/3 main switch, preparation for boiler protection – EATON PL6-B16/3, protection of the inverter and backup circuits 2x EATON PL6-B20/3, contactor including ELKO HRN-55 monitoring relay and EATON Z-SCH230/40-40 contactor, protection for measurement and control, EATON PL6 circuit breakers and 2 contactors for autonomous switching of the object to backup Z-SCH230/25 + relay for controlling the emergency HDO.

In combination with the R-FVE-E1 (R-FVE-E2) switchboard, where the AZ Router is also located, you can connect the switches with a prepared cable harness and have complete technology in 2 switches, including regulation for DHW.

Main parameters

UseFull back-up systems of the entire house automation
Inverter typeIndirect measurement (coils)

Other parameters

UV resistanceNo
IP coverage65/20
Max. main circuit breaker40
Inverter circuit breaker20
Number of phases3
Weight9.2kg

Inverter parameters

Inverter power (max. kW)13.8kW
Suitable for hybrid invertersYes
Suitable for mains invertersNo

Inverter brands

Suitable for GrowattNo
suitable for SolisNo
Suitable for GoodWeYes
Suitable for DEYENo
Suitable for SolaxNo

Distribution board layout

Option of two invertersNO

Code Manufacturer Product Description Number of pieces
174202 EATON IKA-3/54-ST Switchboard ON IP65 plaster, transparent door, 3 rows, 54 modules 1
158331 EATON SPBT12-280/4 Surge arrester class T1+T2 (B+C), 4-pole set for TN-S 1
276272 EATON IS-40/3 Main switch, 240V, 40A, 3HP 1
286518 EATON PL6-B6/1 Circuit breaker PL6, characteristic B, 1-pole, Icn=6kA, In=6A 2
286521 EATON PL6-B16/1 Circuit breaker PL6, characteristic B, 1-pole, Icn=6kA, In=16A 1
3722 ELKO EP HRN-55 Monitoring voltage relay 1
40.52.8.230.0000 FINDER 2P/8A 230VAC 40.52.8.230.0000 Relay 1NC, 1NO 1
193886 EATON Z-SCH230/1/25-11 Installation contactor, 230VAC/50Hz, 1S, 1R, 25A 1
248847 EATON Z-SCH230/25-40 Installation contactor, 230VAC/50Hz, 4S, 25A 2
248852 EATON Z-SCH-230/40-40 Installation contactor, 230VAC/50Hz, 4S, 40A 1
286586 EATON PL6-B6/3 Circuit breaker PL6, characteristic B, 3-pole, Icn=6kA, In=6A 1
286589 EATON PL6-B16/3 Circuit breaker PL6, characteristic B, 3-pole, Icn=6kA, In=16A 1
286516 EATON PL6-B2/1 Circuit breaker PL6, characteristic B, 1-pole, Icn=6kA, In=2A 1
286590 EATON PL6-B20/3 Circuit breaker PL6, characteristic B, 3-pole, Icn=6kA, In=20A 2
