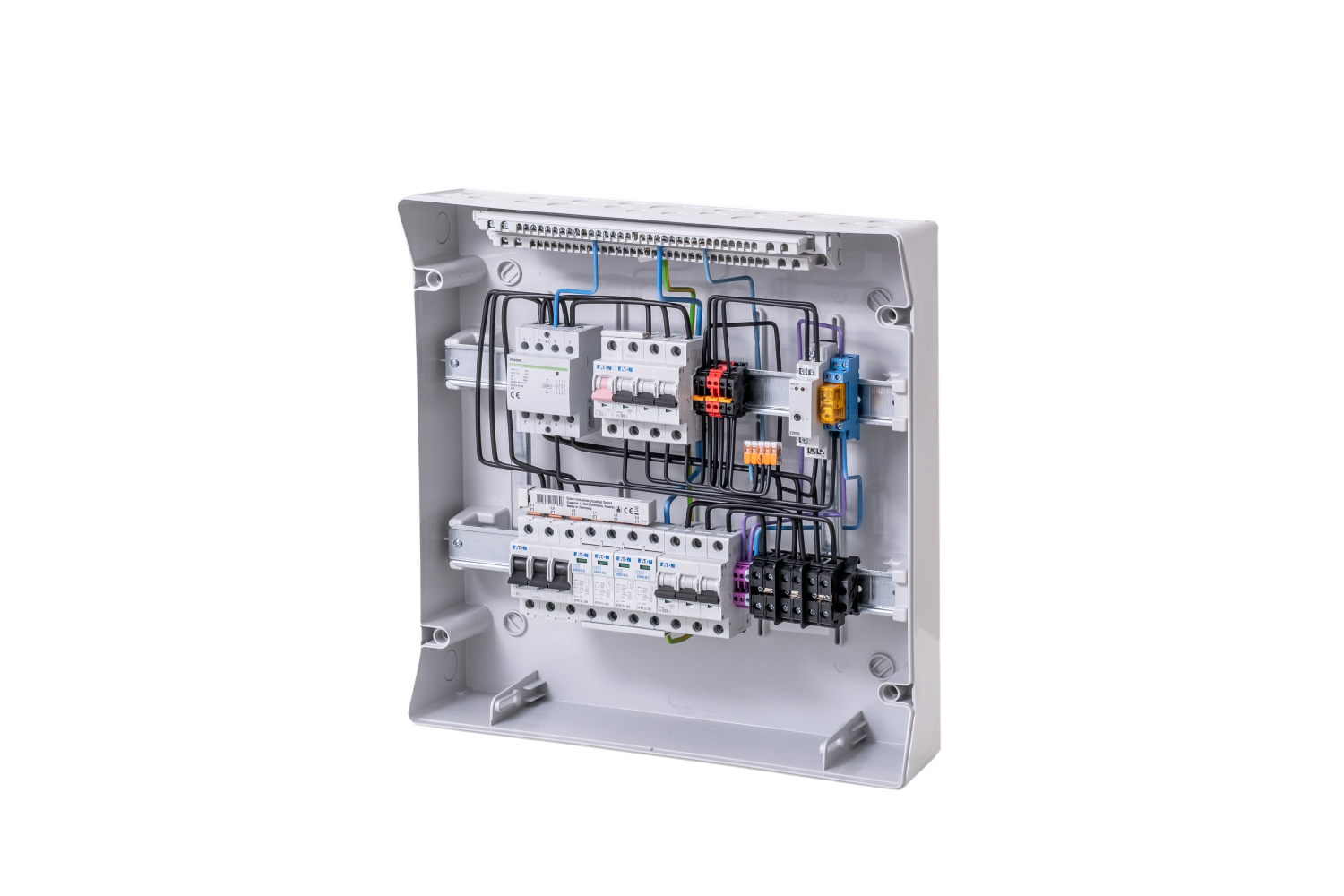

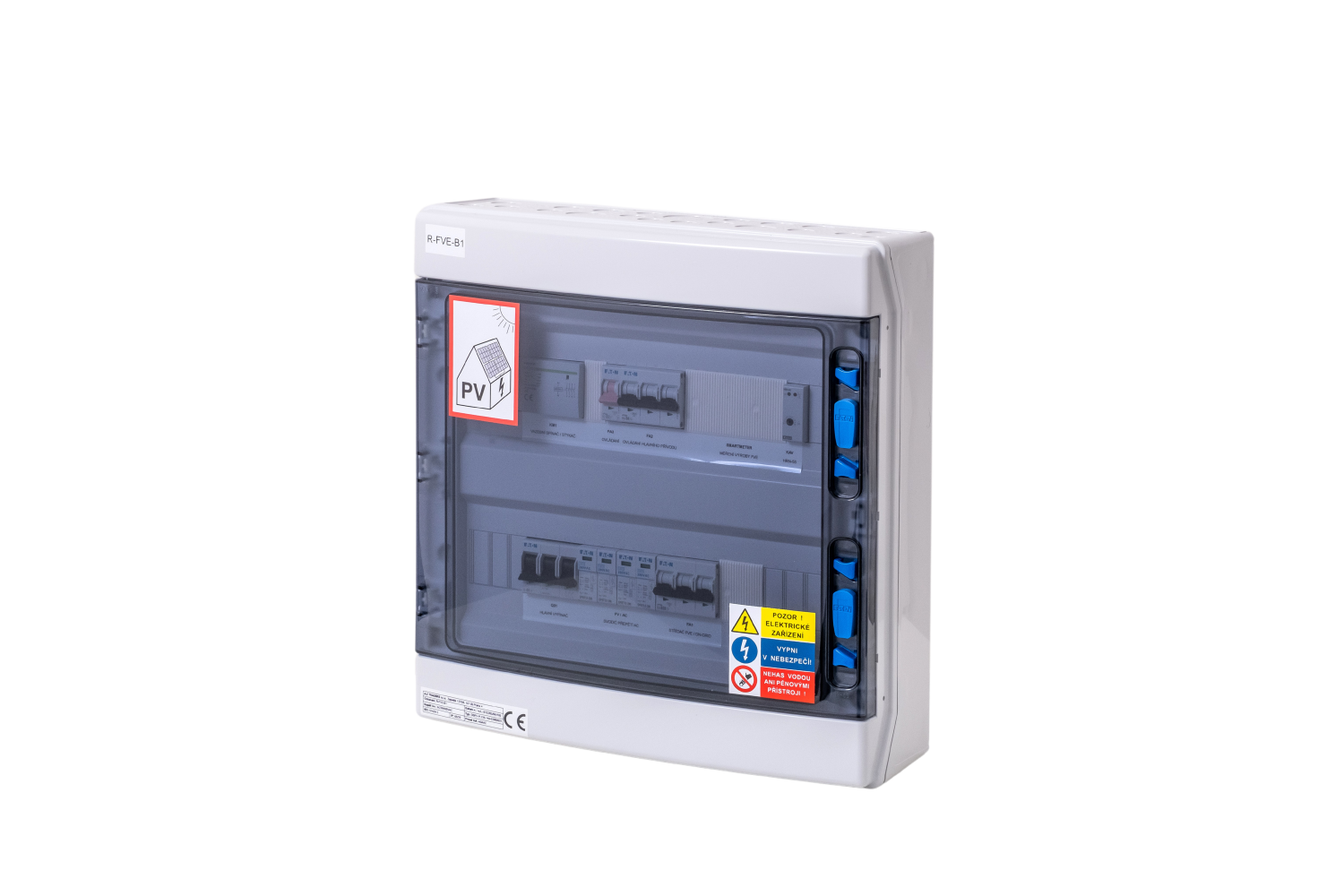

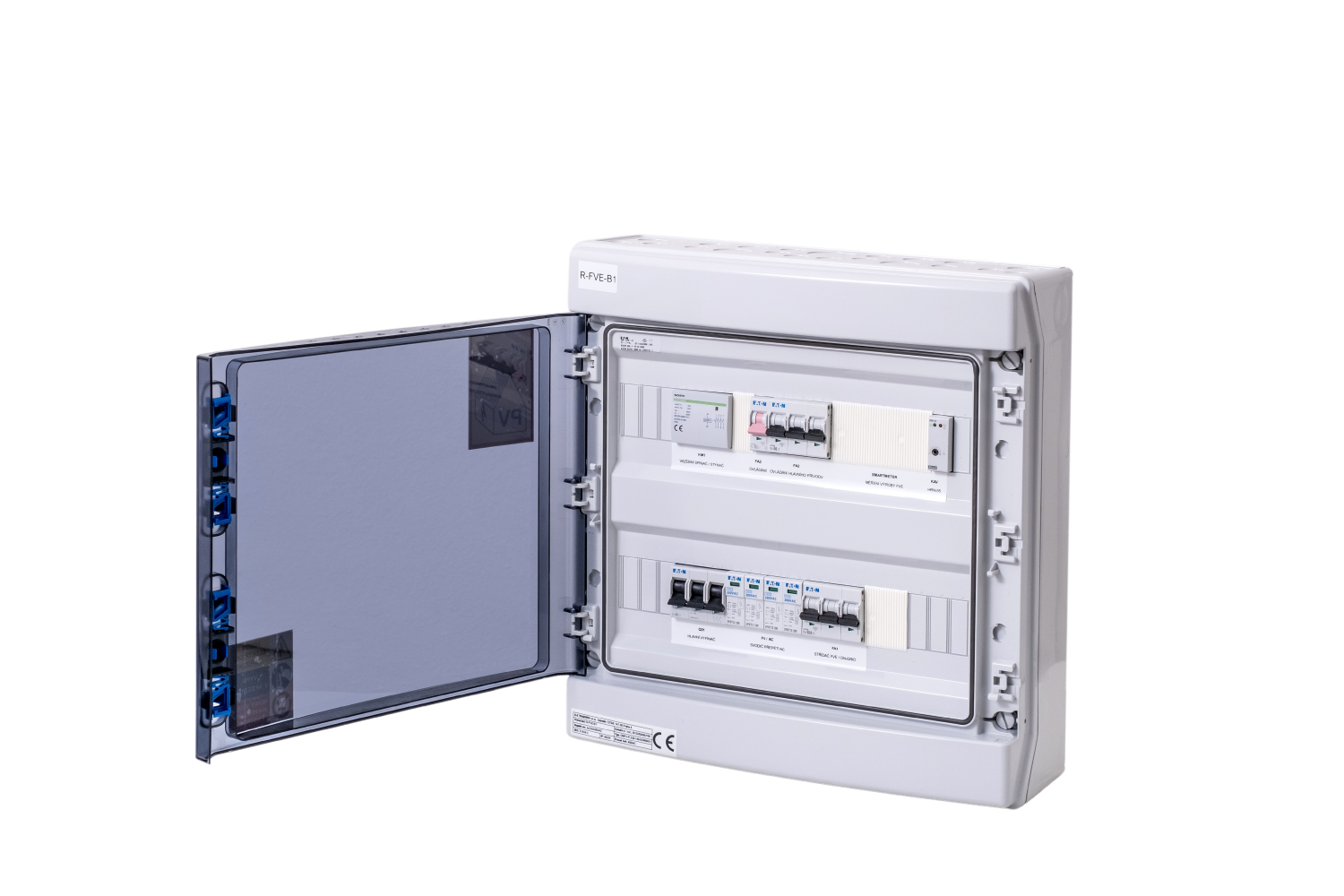

Switchgear R-FVE-B1

AC+DC switchboards designed for wall mounting, IP65, are used to operate a three-phase photovoltaic power plant in combination with a switch (typically a GoodWe 4 to 10K-ET inverter).

Prices are visible only to registered users.
PRODUCT DESCRIPTION

PDF Product description

AC+DC switchboards designed for wall mounting, IP65, are used to operate a three-phase photovoltaic power plant in combination with a switch (typically a GoodWe 4 to 10K-ET inverter).

Its advantage is manual transition from the network and backup. It is necessary to control the load during a power failure to avoid overloading after switching the switch, because its function switches the whole house to inverter backup.

An indisputable advantage is minimal intervention in the customer's switchboard - Smartmeter (inverter measurement), the common breakdown point and all fuses are part of this switchboard. It is enough to make a loop between hl. switchgear and technology placement.

Note Smartmeter is not part of the delivery of AZ TRADERS s.r.o. If the customer supplies Smartmeters, we are able to install them in switchboards.

The switchboard is also equipped with an emergency disconnection of the HDO inverter (N0%). The R-FVE-B1 switchgear is designed for a main circuit breaker in the column with a maximum of 40 A. R-FVE-A1 (A2) also contains DC fuse disconnectors and surge arresters (A1 one for one chain, A2 for two chains). When switching, there is a slight time delay (switching of contactors) - so it is not a fail-safe backup solution.

Main parameters

UseSystems without backup circuits
Inverter typeIndirect measurement (coils)

Other parameters

UV resistanceNo
IP coverage65/20
Max. main circuit breaker40
Inverter circuit breaker20
Number of phases3

Inverter parameters

Inverter power (max. kW)13.8kW
Suitable for hybrid invertersYes
Suitable for mains invertersNo

Inverter brands

Suitable for GrowattNo
suitable for SolisNo
Suitable for GoodWeYes
Suitable for DEYENo
Suitable for SolaxNo

Distribution board layout

Option of two invertersNO

Code Manufacturer Product Description Number of pieces
174201 EATON IKA-2/36-ST Surface-mounted distribution board IP65, transparent door, 2 rows, 36 modules 1
158331 EATON SPBT12-280/4 Surge arrester class T1+T2 (B+C), 4-pole set for TN-S 1
276272 EATON IS-40/3 Main switch, 240V, 40A, 3HP 1
3722 ELKO EP HRN-55 Voltage monitoring relay 1
40528230 + 95.65 FINDER 2P/8A 230VAC 40.52.8.230.0000 Finder RELAY 1
248852 EATON Z-SCH-230/40-40 Installation contactor, 230VAC/50Hz, 4S, 40A 1
286586 EATON PL6-B6/3 Circuit breaker PL6, characteristic B, 3-pole, Icn=6kA, In=6A 1
286590 EATON PL6-B20/3 Circuit breaker PL6, characteristic B, 3-pole, Icn=6kA, In=20A 1
286516 EATON PL6-B2/1 Circuit breaker PL6, char B, 1-pole, Icn=6kA, In=2A 1
