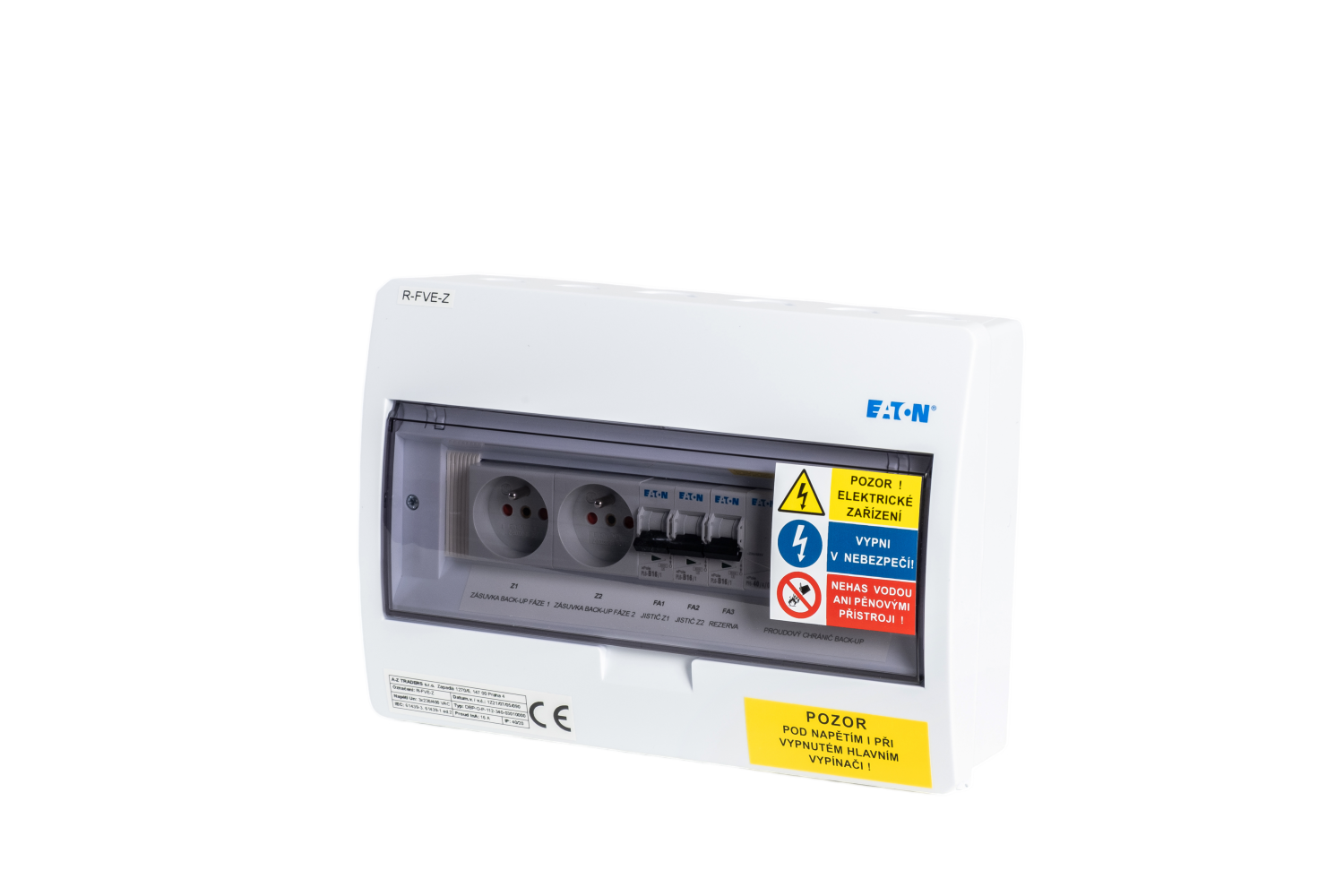

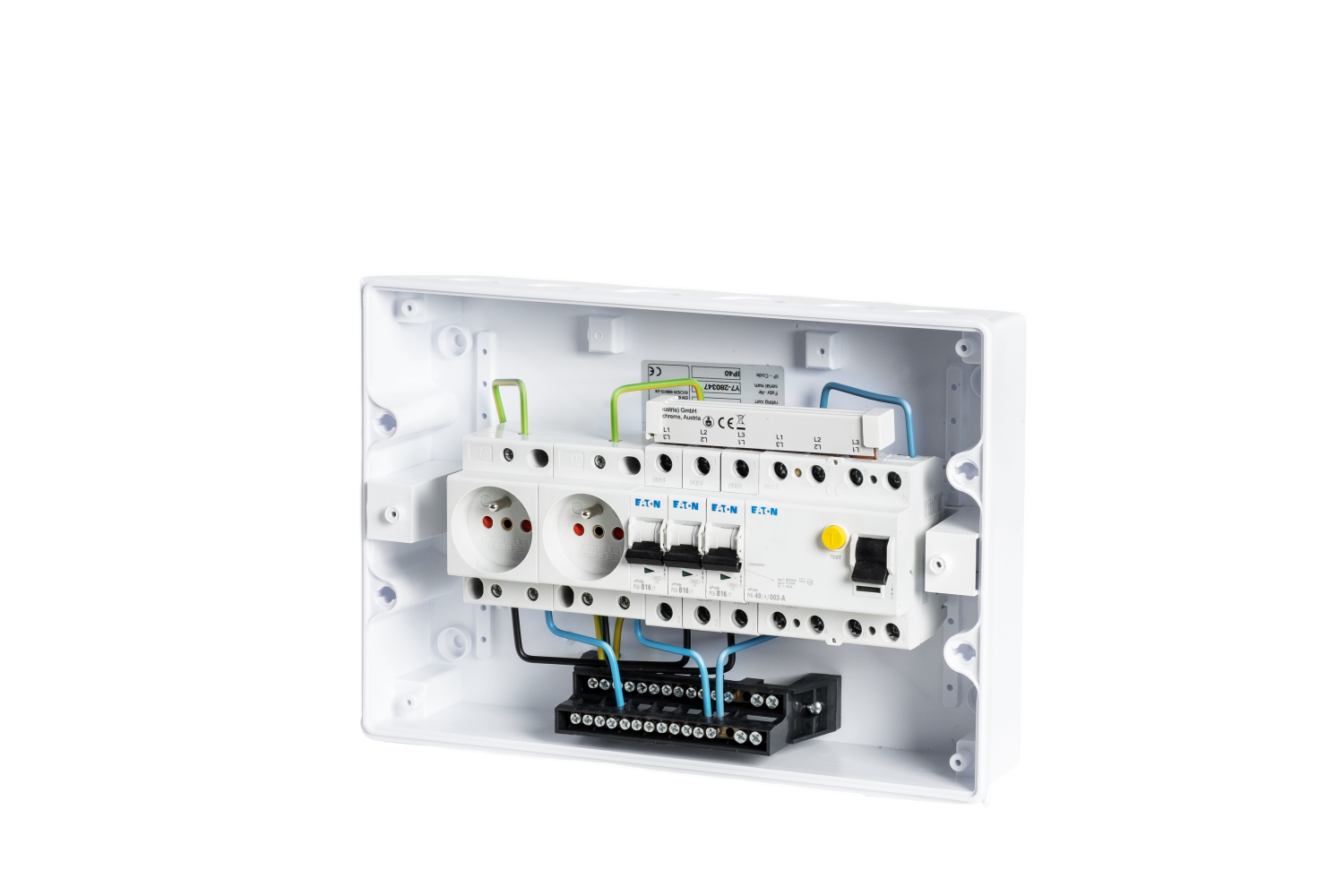

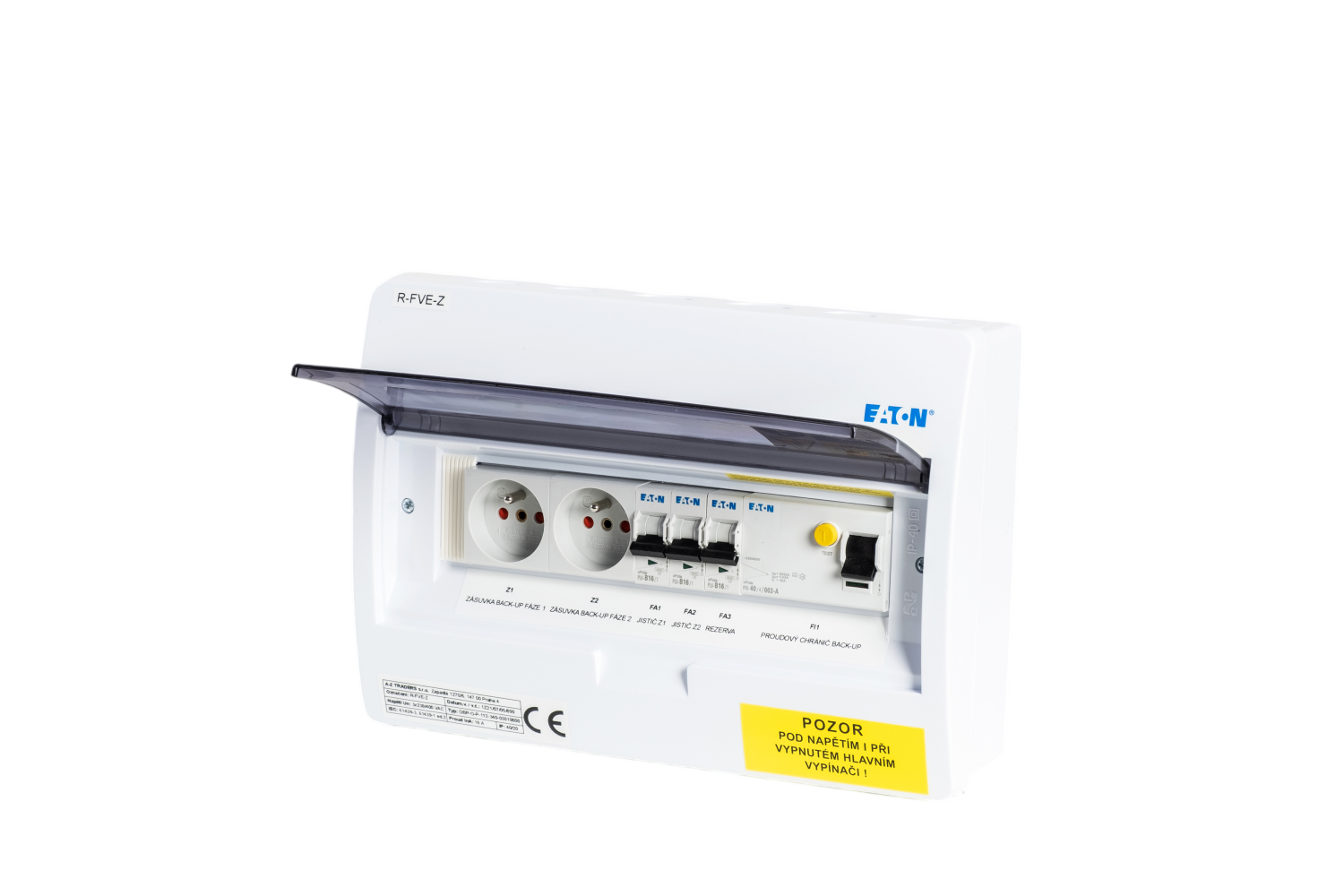

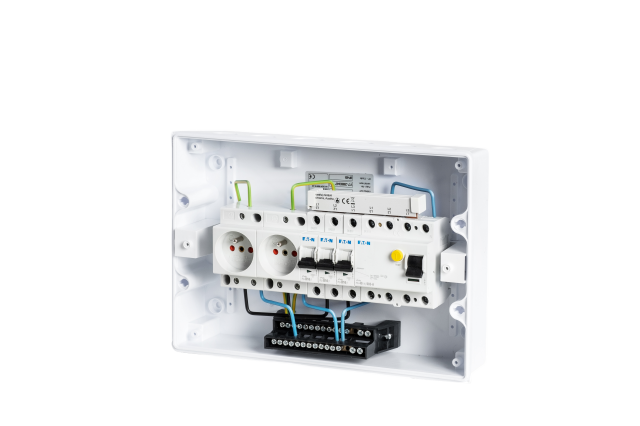

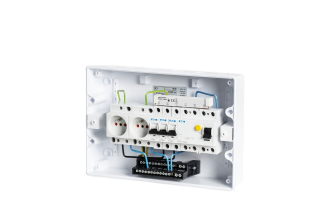

Switchboard R-FVE-Z3

EAN: 8594217350406 SKU: R-FVE-Z3

AC switchgear designed for intended for wall mounting, IP40/20 serving as an output switchgear
(at the inverter) for three-phase photovoltaic power plants (typically GoodWe 4 to 10K-ET inverter).

More information

Prices are visible only to registered users.

PRODUCT DESCRIPTION

Product description

AC switchgear designed for intended for wall mounting, IP40/20 serving as an output switchgear
(at the inverter) for three-phase photovoltaic power plants (typically GoodWe 4 to 10K-ET inverter).

Where it is not possible to use selected circuits for backup in the existing switchboard, but only sockets and a backup circuit breaker for selected appliances can be used.

Its advantage is its small size, the possibility to "stack" with other AC switchboards next to each other or underneath each other, which makes it possible to install them even in areas where there is a problem with a lack of free space.

The switchboard is fitted with a B16/1 circuit breaker to protect two sockets and one reserve for a separate consumer from the backup of the inverter and a type A circuit breaker.

Suitable to combine with the R-FVE-DC1, R-FVE-DC2 switchboard for the DC part of the installation and the R-FVE-M4 switchboard, which is intended for the inverter input.

Main parameters

Use	Systems with backup of two sockets
Inverter type	All types of inverters

Other parameters

UV resistance	No
IP coverage	40/20
Inverter circuit breaker	16
Number of phases	3

Inverter parameters

Inverter power (max. kW)	11kW
Suitable for hybrid inverters	Yes
Suitable for mains inverters	No

Inverter brands

Suitable for Growatt	Yes
suitable for Solis	Yes
Suitable for GoodWe	Yes
Suitable for DEYE	Yes
Suitable for Solax	Yes

Distribution board layout

Option of two inverters

Code	Manufacturer	Product	Description	Number of pieces
280347	EATON	BC-O-1/12-ECO	Switchboard ON plaster, transparent plastic. door, 1 row, 12 modules	1
286521	EATON	PL6-B16/1	Circuit breaker PL6, char B, 1-pole, Icn=6kA, In=16A	1
112933	EATON	PF6-40/4/003-A	Protector Ir=250A, type A, 4-pole, Idn=0.03A, In=40A	1
266876	EATON	Z-SD230-BS	DIN rail socket with apertures and pin	2
