Switchboard R-FVE-Z1

EAN: 8594217350390 SKU: R-FVE-Z1

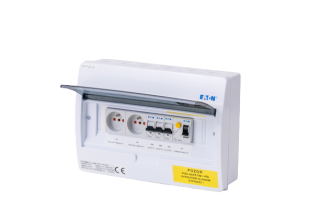

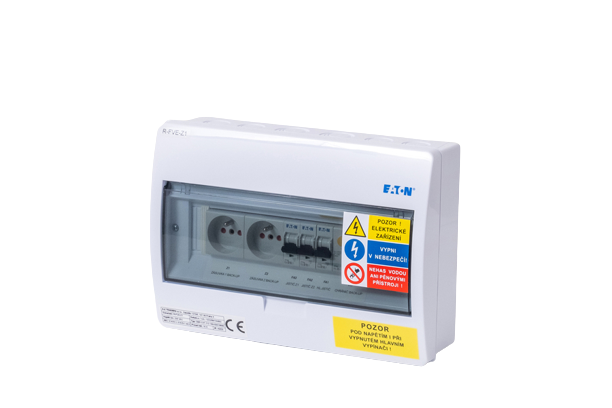

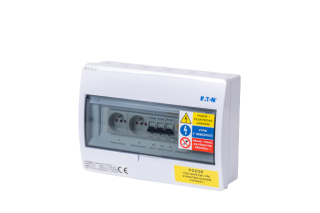

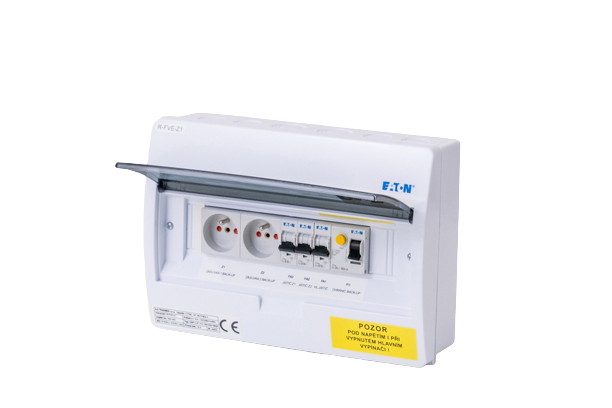

AC switchgear designed for wall mounting, IP40/20 serving as an output switchgear (at the inverter) for single-phase photovoltaic power plants (typically Goodwe 3648-EM and 3648D-ES inverter). Where it is not possible to use selected circuits for backup in the existing switchboard, but only sockets and a backup circuit breaker for selected appliances can be…

More information

Prices are visible only to registered users.

PRODUCT DESCRIPTION

Product description

Its advantage is its small size, the possibility of "stacking" with other AC switchboards next to each other or under each other, which makes it possible to install them even in areas where space is a problem.

Three B16/1 circuit breakers are installed in the switchboard to protect two sockets and one reserve for a separate consumer from the backup of the inverter and a type A circuit breaker.

Suitable to combine with the switchboard R-FVE-DC1, R-FVE-DC2 for the DC part of the installation and the switchboard R-FVE-M, R-FVE-H intended for the input of the inverter or for input, output and backup circuits with a switch.

Main parameters

Use	Systems with backup of two sockets
Inverter type	All types of inverters

Other parameters

UV resistance	No
IP coverage	40/20
Inverter circuit breaker	16
Number of phases	1
Weight	2kg

Inverter parameters

Inverter power (max. kW)	3.7kW
Suitable for hybrid inverters	Yes
Suitable for mains inverters	No

Inverter brands

Suitable for Growatt	Yes
suitable for Solis	Yes
Suitable for GoodWe	Yes
Suitable for DEYE	Yes
Suitable for Solax	Yes

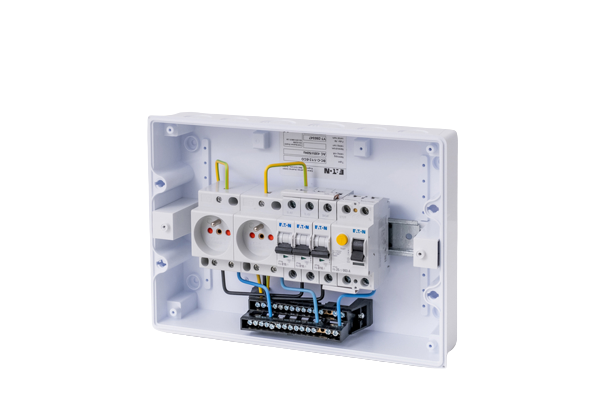

Distribution board layout

Option of two inverters

Code	Manufacturer	Product	Description	Number of pieces
280347	EATON	BC-O-1/12-ECO	Surface-mounted distribution board, transparent plastic door, 1 row, 12 modules	1
286521	EATON	PL6-B16/1	Circuit breaker PL6, char B, 1-pole, Icn=6kA, In=16A	1
262674	EATON	PL6-B10/1	Circuit breaker PL6, char B, 1-pole, Icn=6kA, In=10A	2
112921	EATON	PF6-25/4/003-A	Protector Ir=250A, type A, 2-pole, Idn=0.03A, In=25A	1
266876	EATON	Z-SD230-BS	DIN rail socket with shutters and pin	2
