Switchboard R-FVE-M5

EAN: 8594217350321 SKU: R-FVE-M5

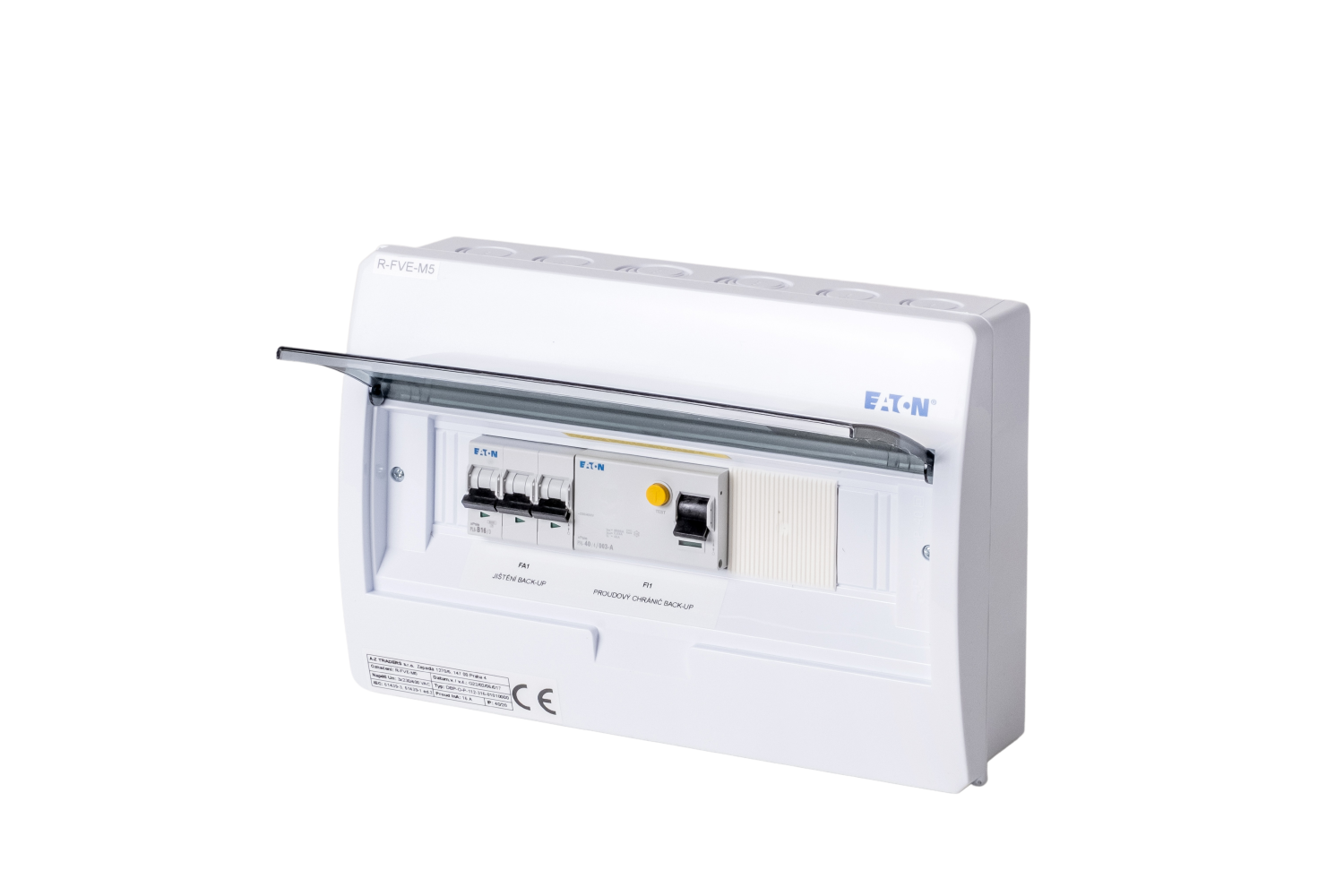

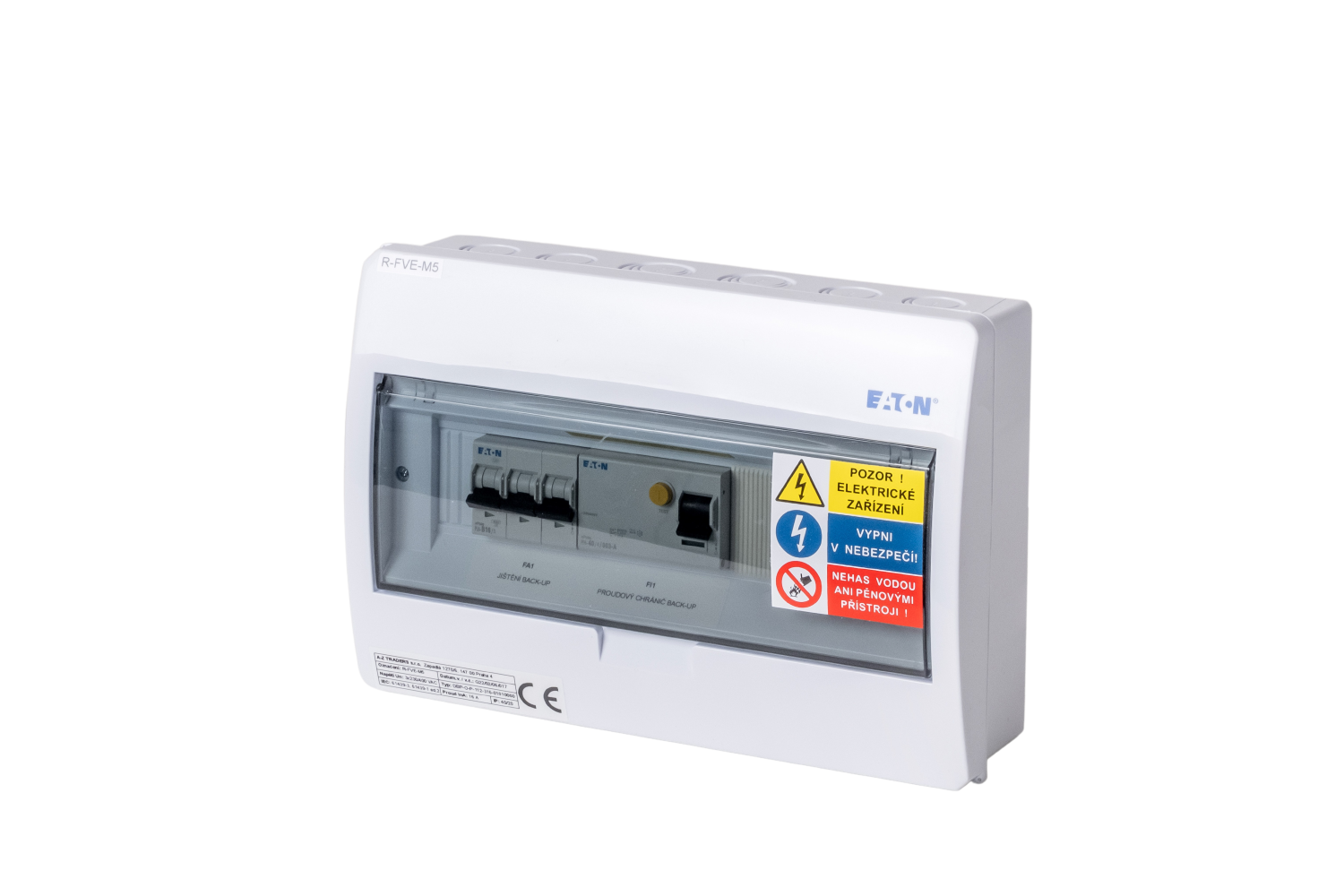

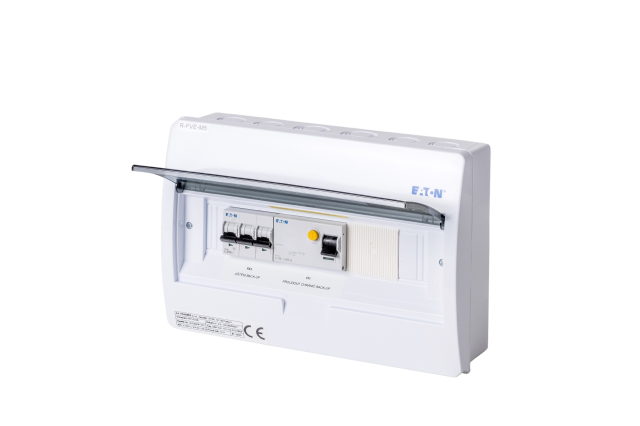

AC switchgear designed for wall mounting, IP40/20 serving as an output switchgear (at the inverter) for three-phase photovoltaic power plants (typically 4 to 10K-ET inverter) so as to ensure the protection of the output including the current protector.

More information

Prices are visible only to registered users.

PRODUCT DESCRIPTION

Product description

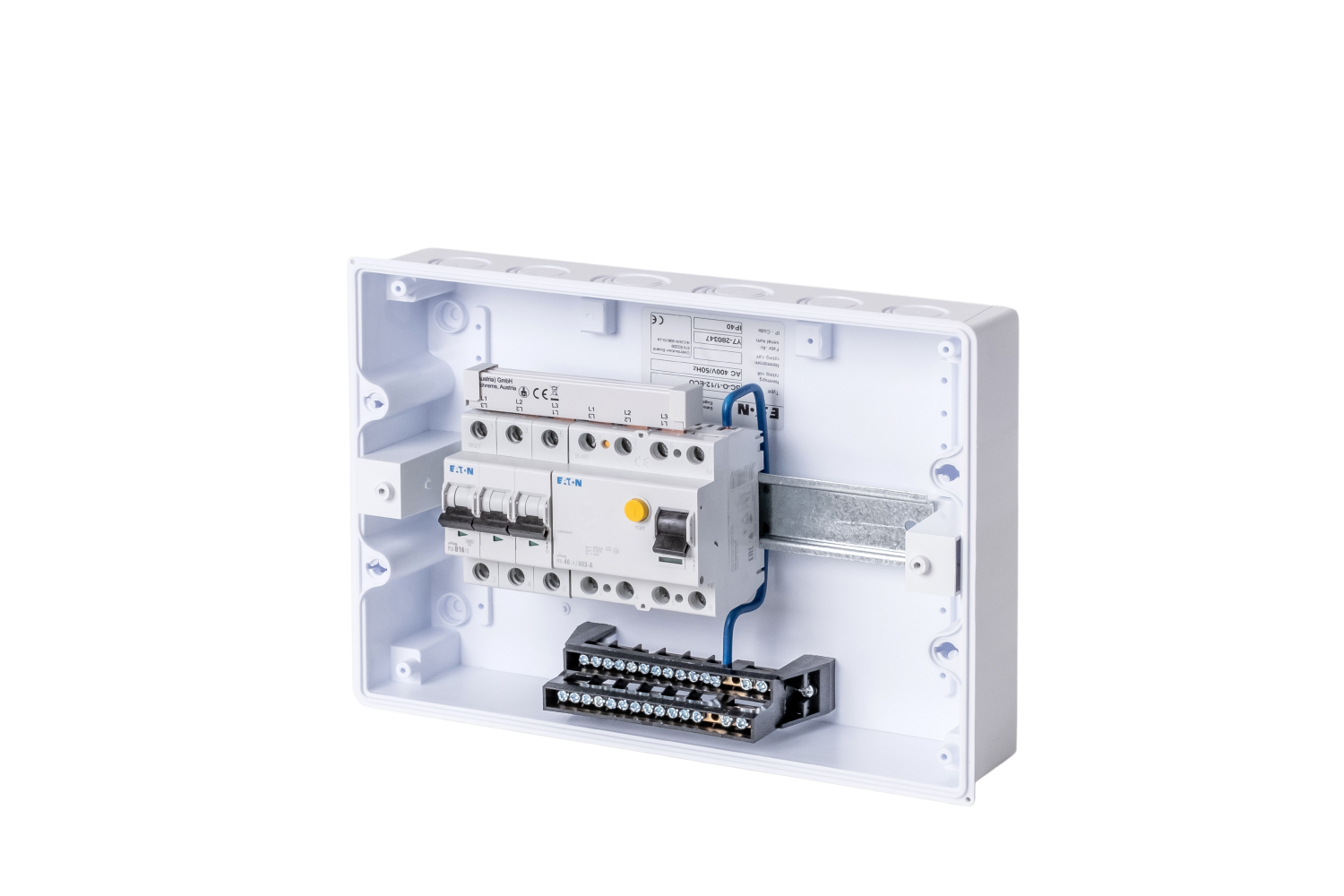

Its advantage is its small size, the possibility of "stacking" with other AC switchboards next to each other or under each other, which makes it possible to install it even in a space where space is a problem.

The switchboard is equipped with a B16/3 circuit breaker to protect the output from the backup of the inverter, type A circuit breaker.

Suitable to combine with the R-FVE-DC1, R-FVE-DC2 switchboard for the DC part of the installation and the R-FVE-M4 switchboard designed for the inverter input.

In extreme cases of necessity, some components can be exchanged for products with functionally equal or better characteristics.

Main parameters

Use	Systems without backup circuits
Inverter type	Without measurement / It is not placed in the switchboard

Other parameters

UV resistance	No
IP coverage	40/20
Inverter circuit breaker	16
Number of phases	3

Inverter parameters

Inverter power (max. kW)	11kW
Suitable for hybrid inverters	Yes
Suitable for mains inverters	No

Inverter brands

Suitable for Growatt	Yes
suitable for Solis	Yes
Suitable for GoodWe	Yes
Suitable for DEYE	Yes
Suitable for Solax	Yes

Distribution board layout

Option of two inverters

Code	Manufacturer	Product	Description	Number of pieces
280347	EATON	BC-O-1/12-ECO	Switchboard ON plaster, transparent plastic. door, 1 row, 12 modules	1
286589	EATON	PL6-B16/3	Circuit breaker PL6, char B, 3-pole, Icn=6kA, In=16A	1
112933	EATON	PF6-40/4/003-A	Protector Ir=250A, type AC, 4-pole, Idn=0.03A, In=40A	1
