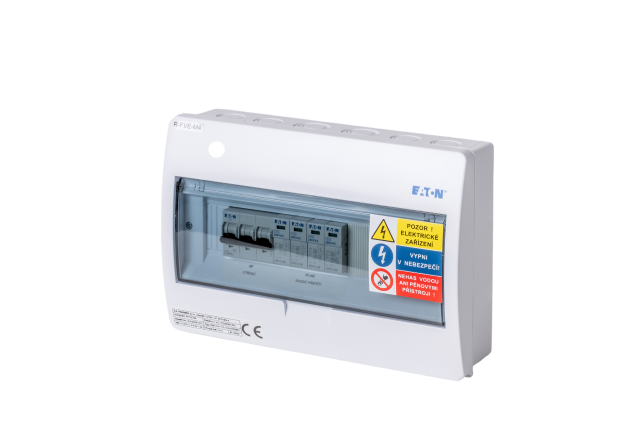

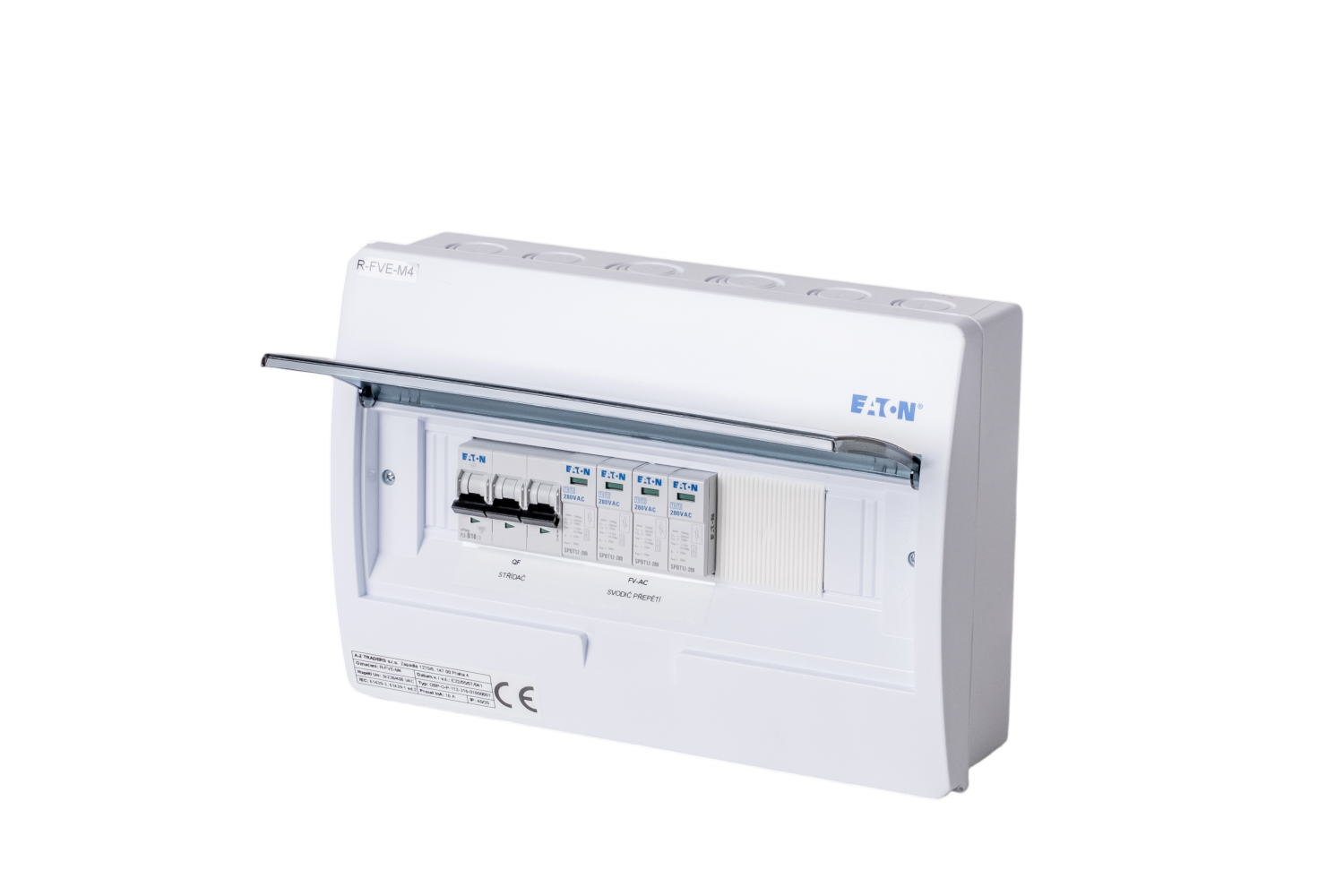

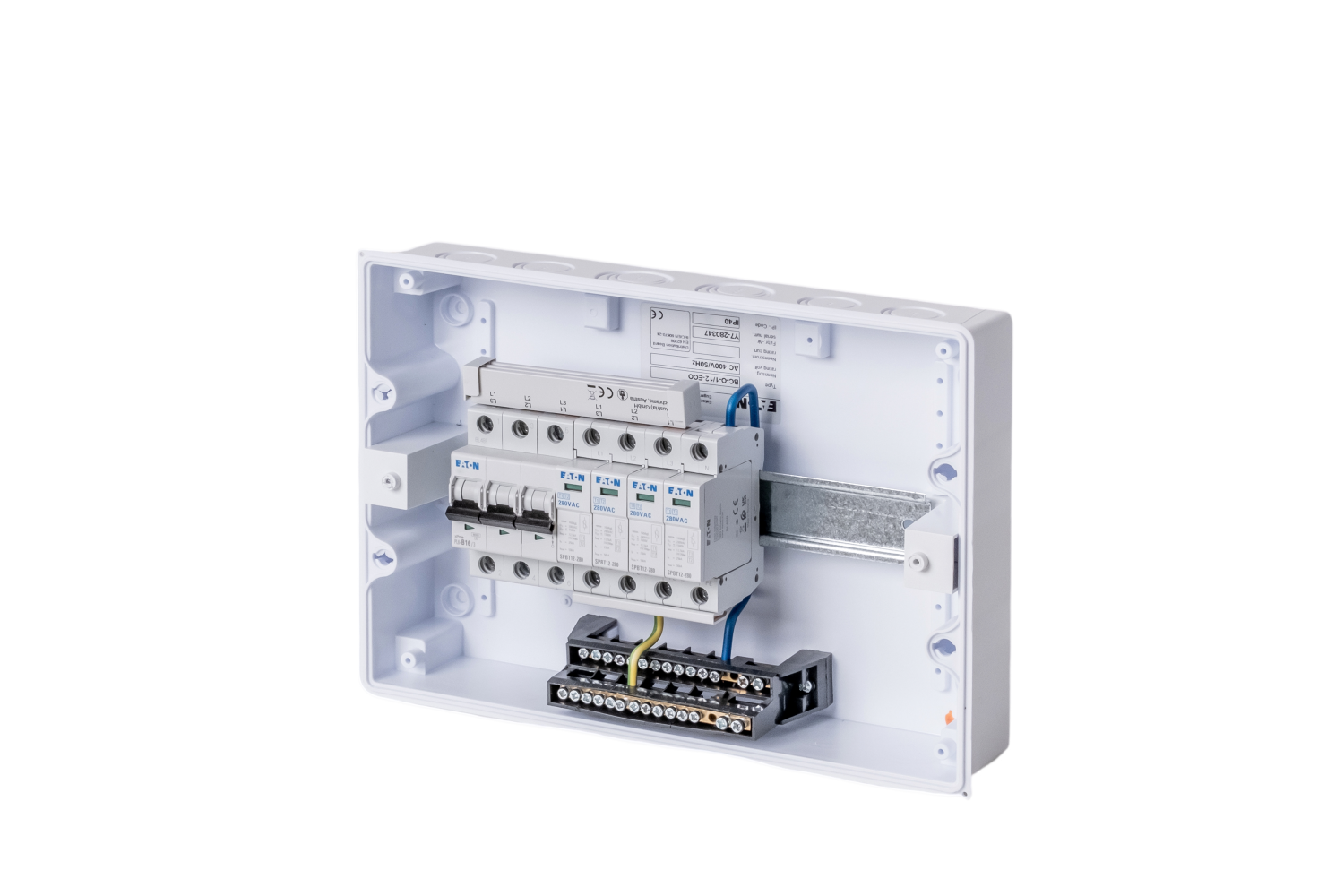

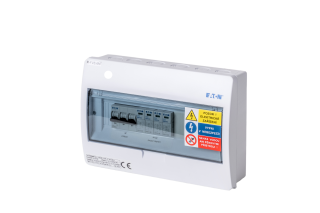

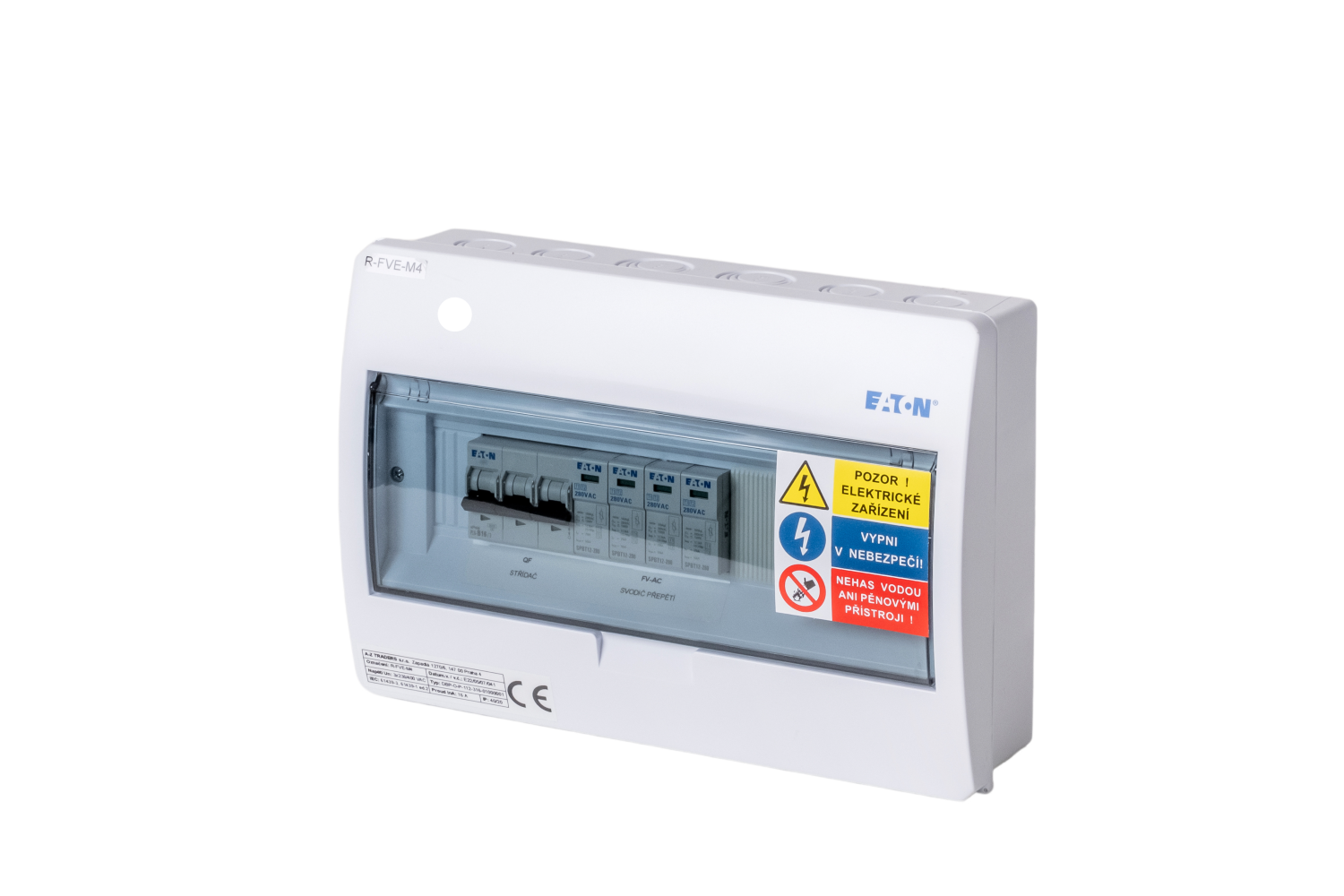

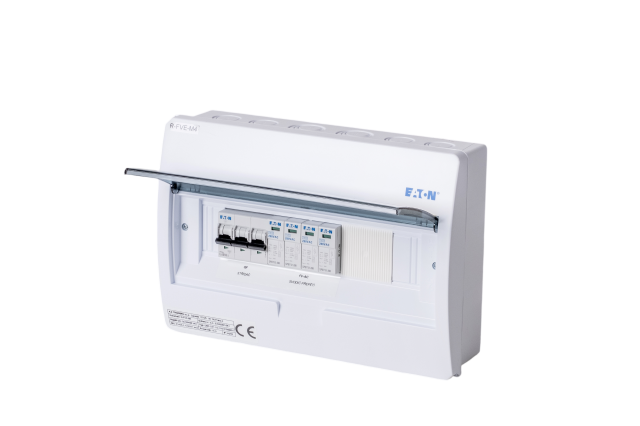

AC switchgear designed for wall mounting, IP40/20 serving as an input switchgear (at the inverter) for three-phase photovoltaic power plants (typically Goodwe 4 to 10K-DT, Goodwe 4 to 10K-ET inverter).
AC switchgear designed for wall mounting, IP40/20 serving as an input switchgear (at the inverter) for three-phase photovoltaic power plants (typically Goodwe 4 to 10K-DT, Goodwe 4 to 10K-ET inverter).
Its advantage is its small size, the possibility of "stacking" with other AC switchboards next to each other or under each other, which makes it possible to install them even in areas where space is a problem.
The switchboard is equipped with an AC overvoltage arrester and a B16/3 circuit breaker to protect the input to the inverter.
Suitable to combine with switchboard R-FVE-DC1, R-FVE-DC2 for the DC part of the installation and switchboard R-FVE-M5+P3F for backup circuits with manual switch (bypassing the inverter) and protector, or switchboard R-FVE-Z3 with current protector, sockets and fuse.
Use | Systems without backup circuits |
Inverter type | Without measurement / It is not placed in the switchboard |
UV resistance | No |
IP coverage | 40/20 |
Inverter circuit breaker | 16 |
Number of phases | 3 |
Inverter power (max. kW) | 11kW |
Suitable for hybrid inverters | Yes |
Suitable for mains inverters | Yes |
Suitable for Growatt | Yes |
suitable for Solis | Yes |
Suitable for GoodWe | Yes |
Suitable for DEYE | Yes |
Suitable for Solax | Yes |
Option of two inverters | NO |
Code | Manufacturer | Product | Description | Number of pieces |
---|---|---|---|---|
280347 | EATON | BC-O-1/12-ECO | Switchboard ON plaster, transparent plastic. door, 1 row, 12 modules | 1 |
158331 | EATON | SPBT12-280/4 | Surge arrester class T1+T2 (B+C), 4-pole set for TN-S | 1 |
286589 | EATON | PL6-B16/3 | Circuit breaker PL6, char B, 3-pole, Icn=6kA, In=16A | 1 |
