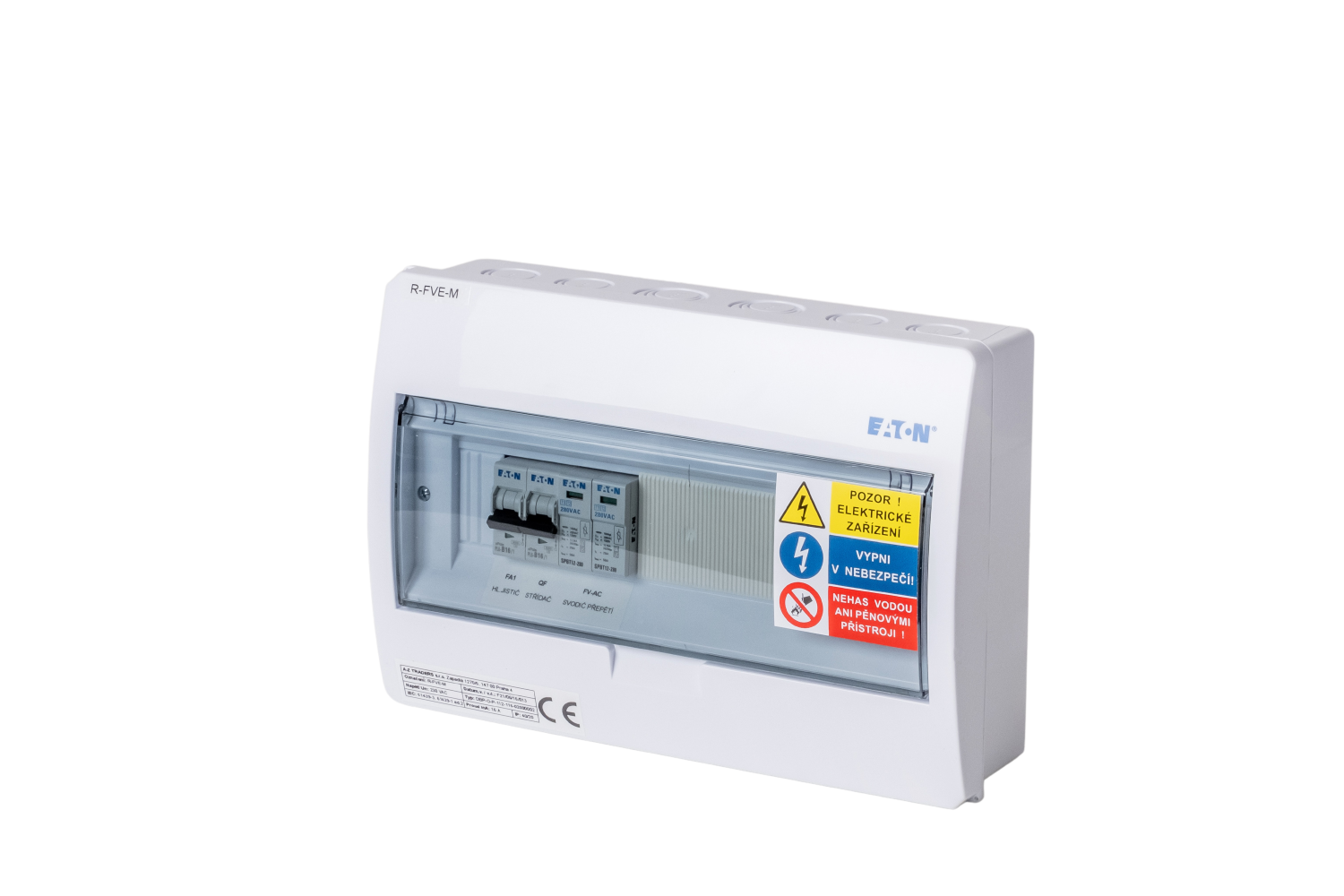

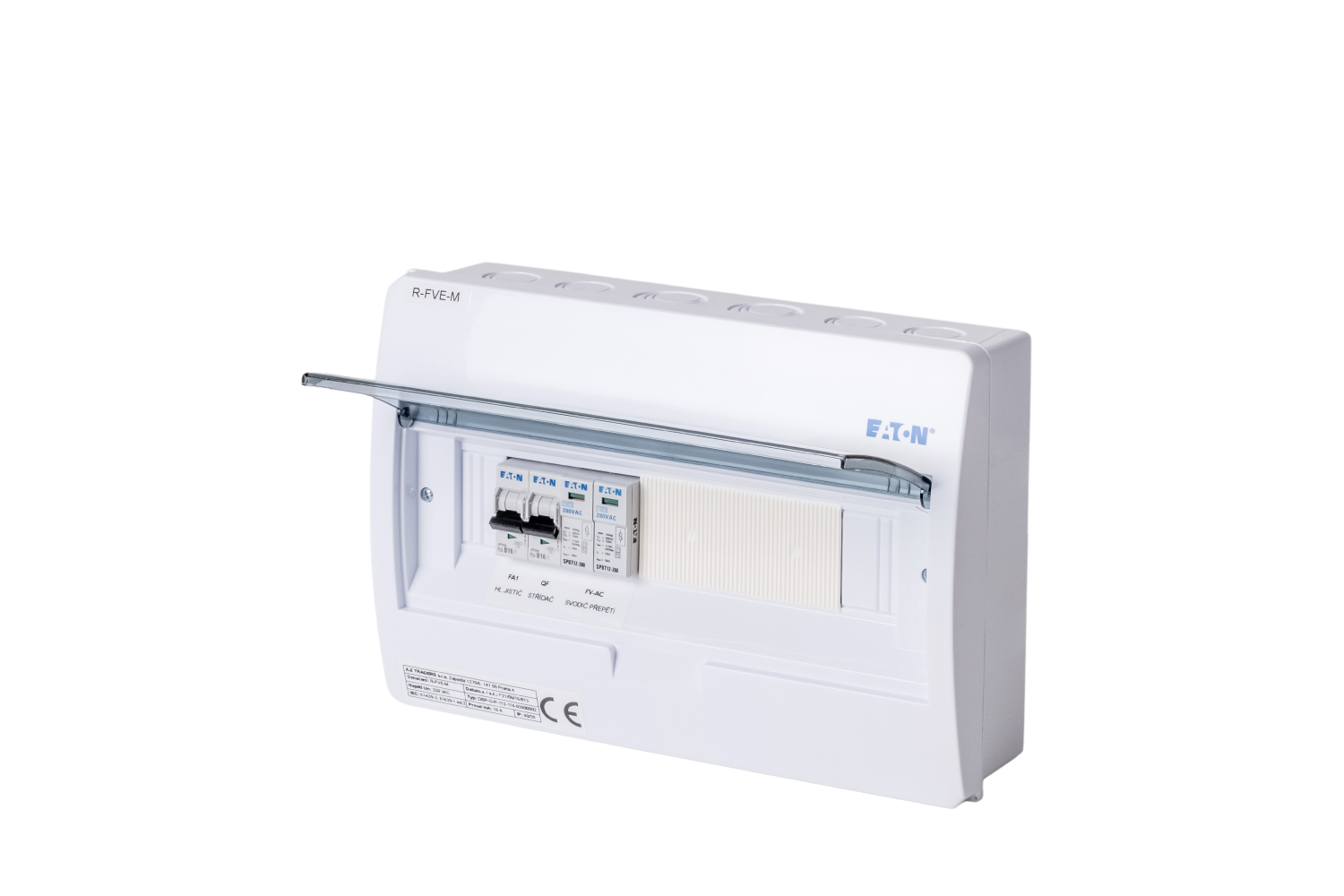

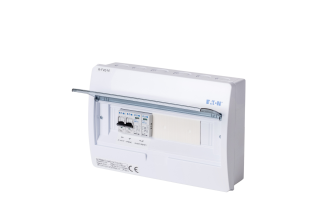

Switchboard R-FVE-M

AC switchgear designed for wall mounting, IP40/20 serving as an input switchgear (at the inverter) for single-phase photovoltaic power plants (typically Goodwe 1000-XS to 3000-XS inverter and Goodwe series 3000D-NS to 3600D-NS).

Prices are visible only to registered users.
PRODUCT DESCRIPTION

PDF Product description

AC switchgear designed for wall mounting, IP40/20 serving as an input switchgear (at the inverter) for single-phase photovoltaic power plants (typically Goodwe 1000-XS to 3000-XS inverter and Goodwe series 3000D-NS to 3600D-NS).

Its advantage is its small size, the possibility of "stacking" with other AC switchboards next to each other or under each other, which makes it possible to install it even in areas where space is a problem.

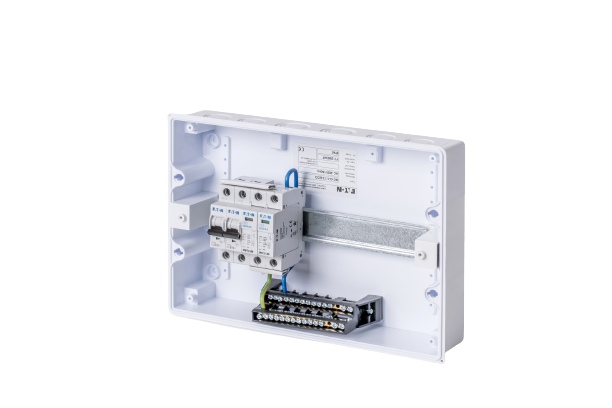

The switchboard is fitted with an AC overvoltage arrester, B16/1 circuit breakers to protect the input to the inverter.

Suitable to combine with the switchboard R-FVE-DC1 and R-FVE-DC2 for the DC part of the installation.

Main parameters

UseSystems without backup circuits
Inverter typeWithout measurement / It is not placed in the switchboard

Other parameters

UV resistanceNo
IP coverage40/20
Inverter circuit breaker16
Number of phases1

Inverter parameters

Inverter power (max. kW)3.7kW
Suitable for hybrid invertersNo
Suitable for mains invertersYes

Inverter brands

Suitable for GrowattYes
suitable for SolisYes
Suitable for GoodWeYes
Suitable for DEYEYes
Suitable for SolaxYes

Distribution board layout

Option of two invertersNO

Code Manufacturer Product Description Number of pieces
280347 EATON BC-O-1/12-ECO Switchboard ON plaster, transparent plastic. door, 1 row, 12 modules 1
158306 EATON SPBT12-280/1 Surge arrester class T1+T2 (B+C), 1-pole 2
286521 EATON PL6-B16/1 Circuit breaker PL6, char B, 1-pole, Icn=6kA, In=16A 2
