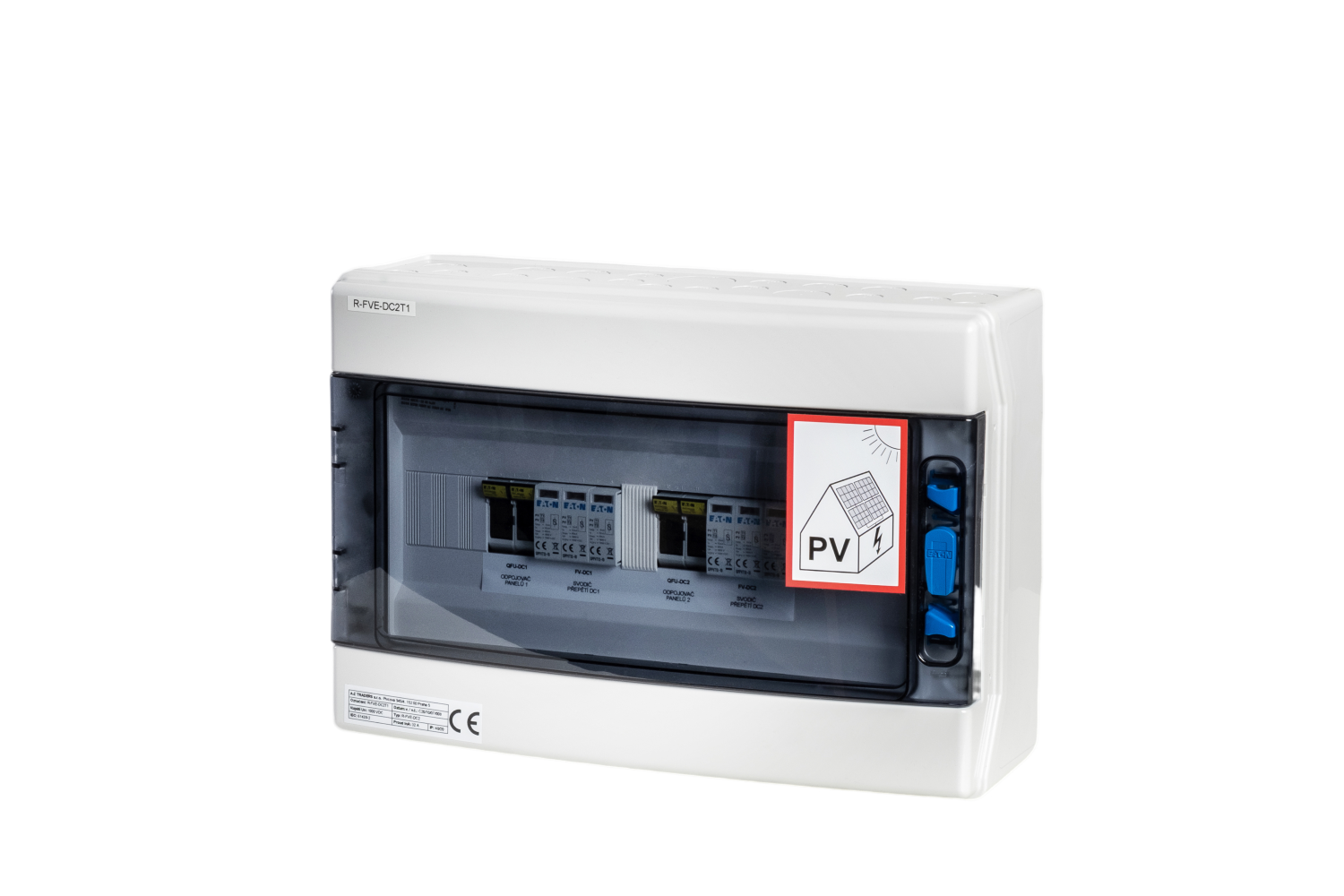

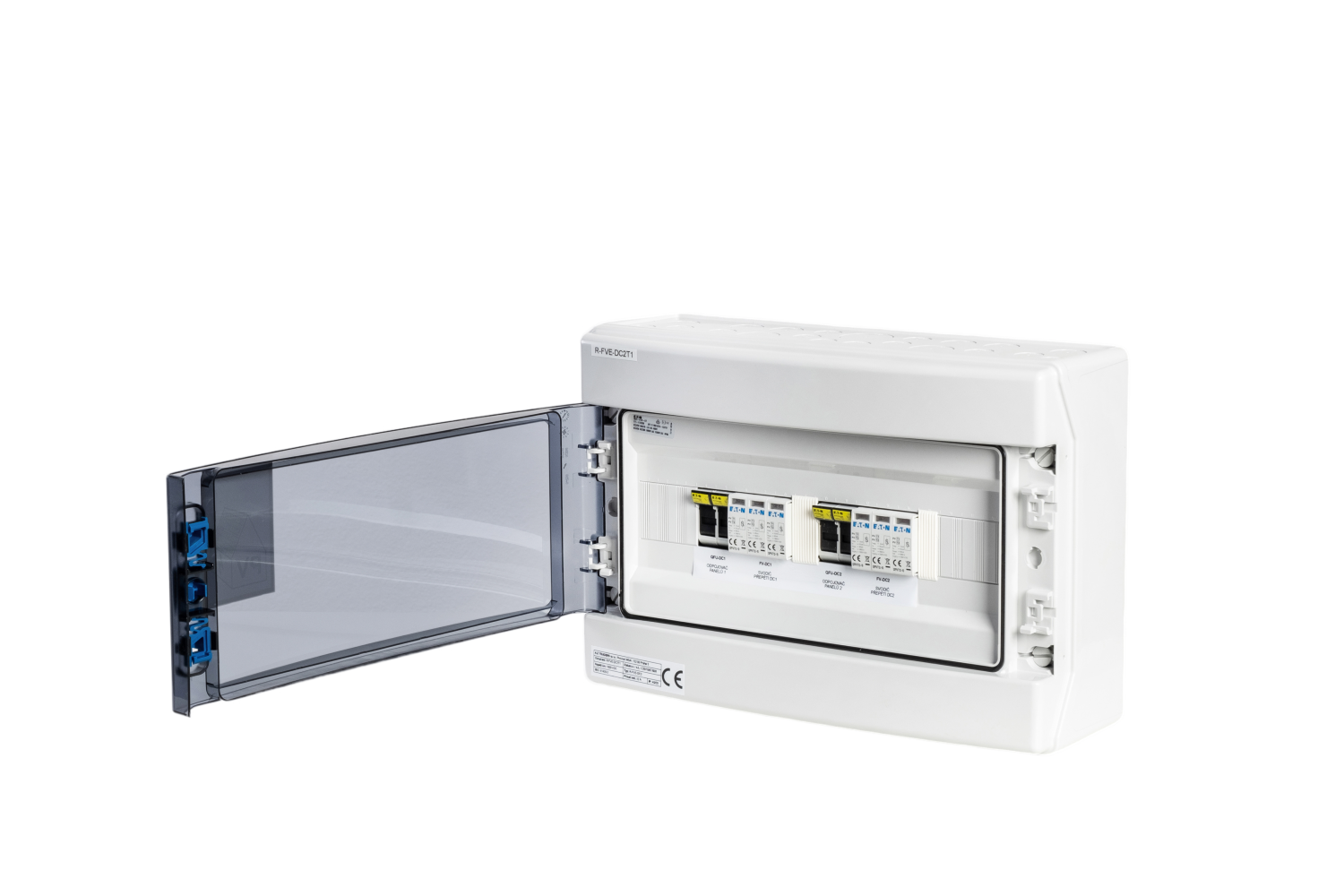

The DC switchboard designed for wall mounting, IP65, serves as an input switchboard from photovoltaic panels (to the inverter) for the entire portfolio of photovoltaic power plants. Especially when using other switchboards, also from EATON IKA.
The DC switchboard designed for wall mounting, IP65, serves as an input switchboard from photovoltaic panels (to the inverter) for the entire portfolio of photovoltaic power plants. Especially when using other switchboards, also from EATON IKA.
The switchboard is equipped with a DC surge arrester with fuse disconnectors including gPV fuses to protect the DC input to the inverter.
Suitable for combination with switchboards for the AC part of the installation fitted in EATON IKA switchboards.

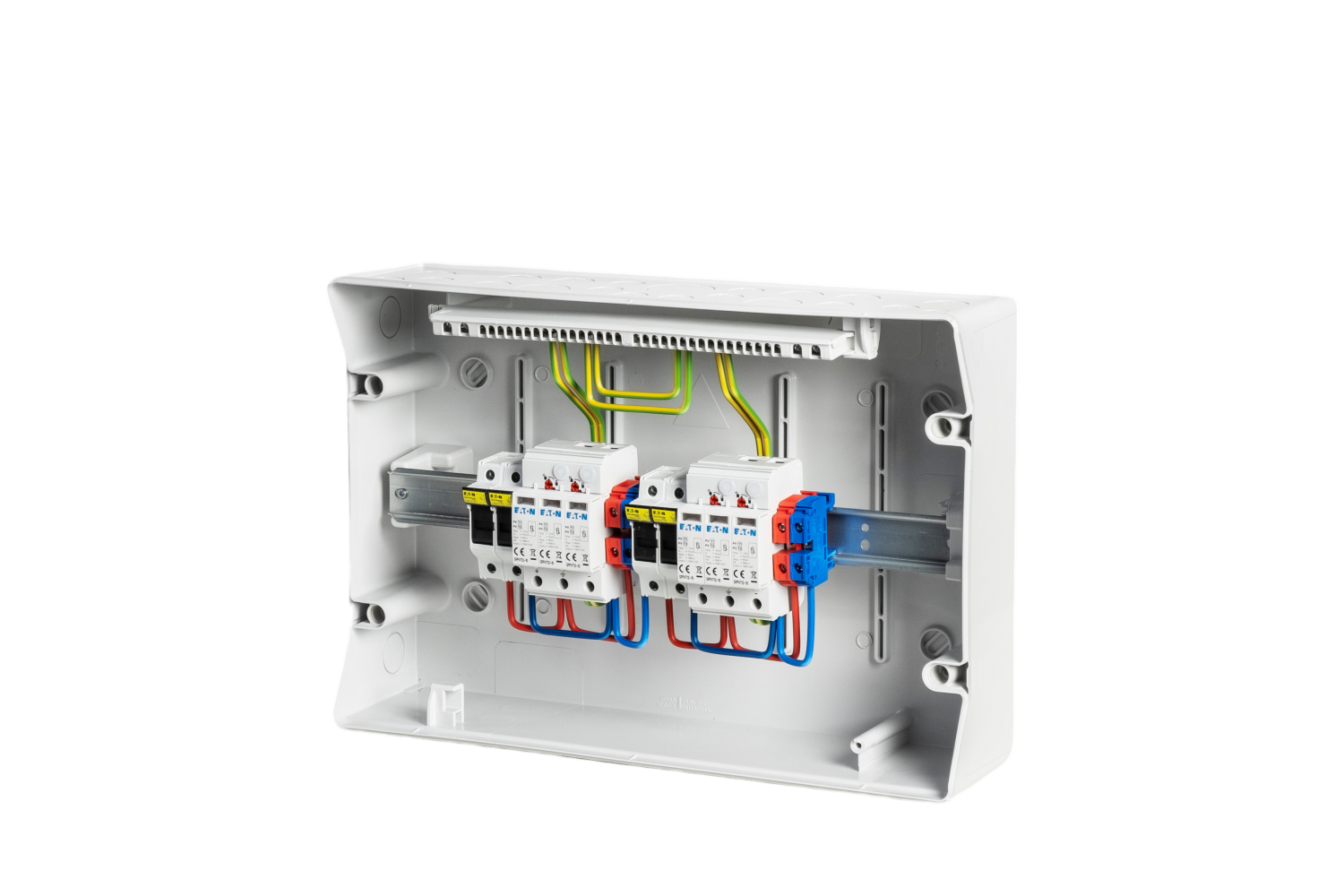

List of main components:
EATON IKA-1/18-ST switchboard, EATON SPPVT12-10-2+PE or EATON surge arrester
SPPVT2-10-2+PE. EATON CHPV2U fuse switch disconnectors including EATON PV15A10F gPV fuses.
Use | Manual full back-up systems of the whole house |
Use | Full back-up systems of the entire house automation |
Code | Manufacturer | Product | Description | Number of pieces |
---|---|---|---|---|
174200 | EATON | IKA-1/18-ST | Switchboard ON IP65 plaster, transparent door, 1 row, 18 modules | 1 |
177256 | EATON | SPPVT12-10-2+PE | Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 1000V DC, max. short-circuit current 1000A | 2 |
2625085 | EATON/ETI/OEZ | CH10x38 gPV 15A/1000V DC | Ultra-fast cylindrical fuse for photovoltaics, (UL standard), 10x38mm, 1100V DC, 15A | 4 |
CHPV2U | EATON | CHPV2U | Fuse disconnector, photovoltaic applications, 2-pole, 1000V AC / 30A, C10 (10x38mm) | 2 |
