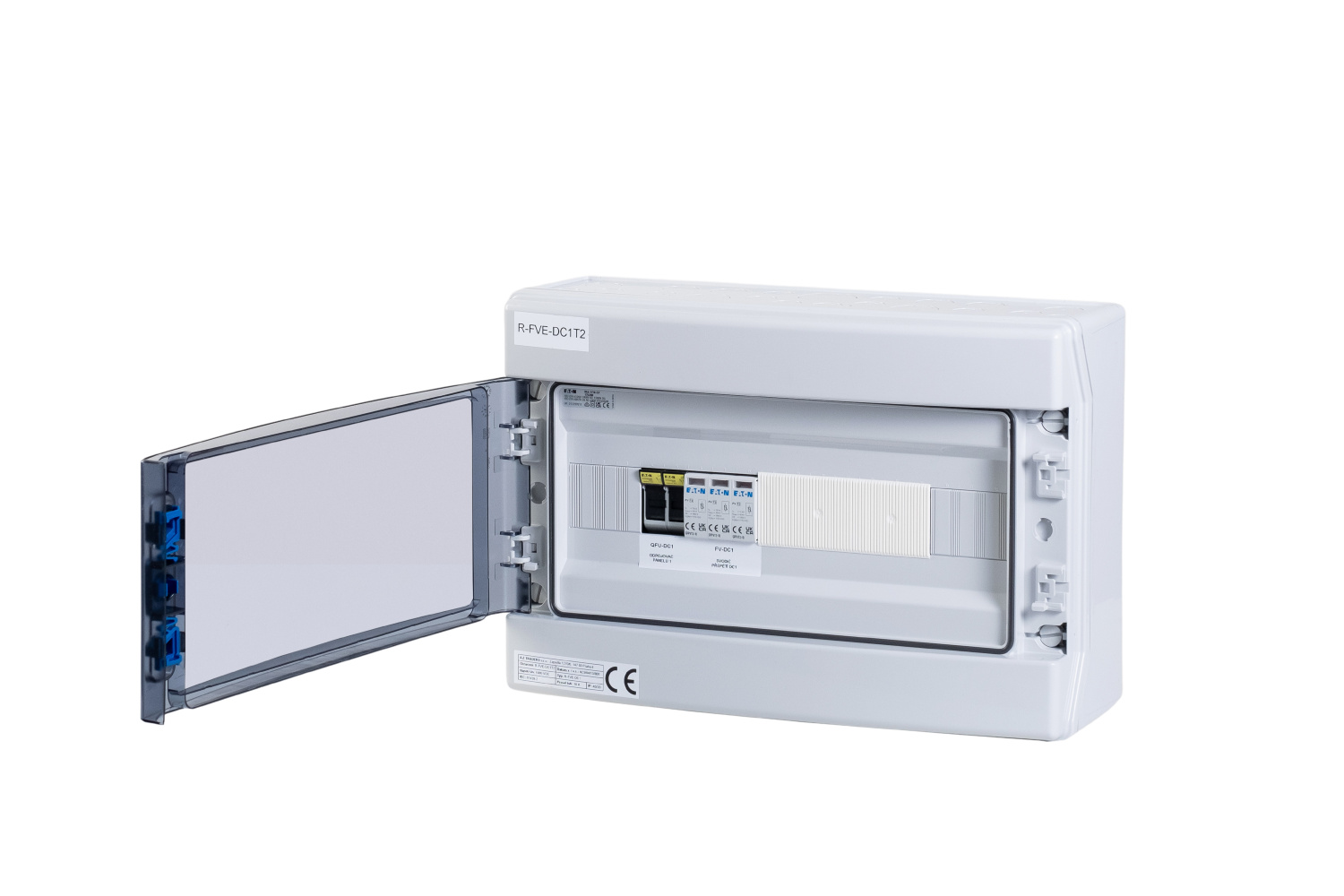

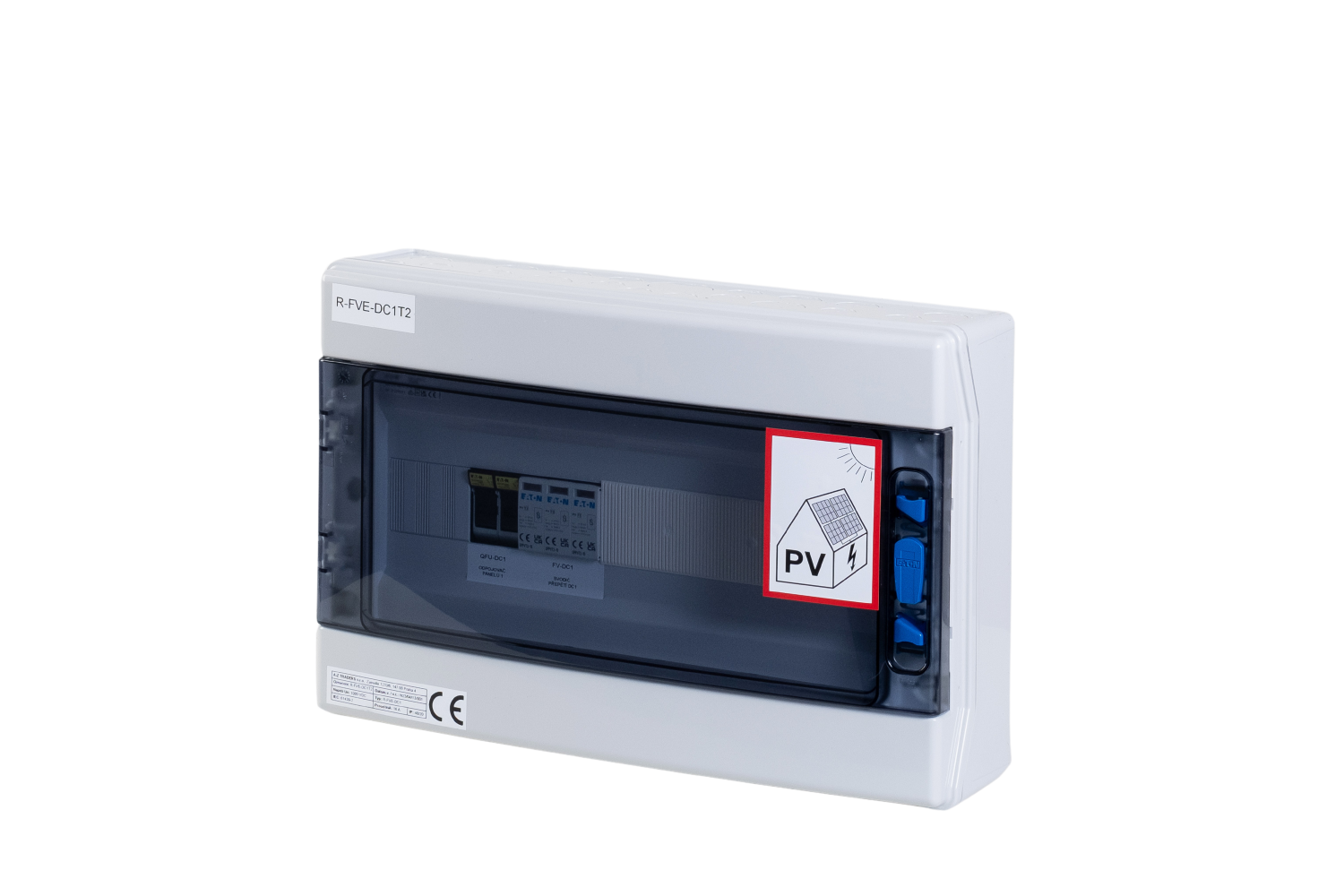

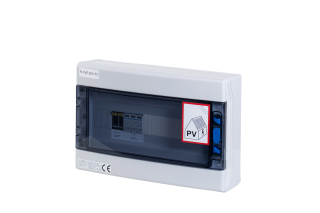

The DC switchboard designed for wall mounting, IP65, serves as the input switchboard from the photovoltaic panels (to the inverter) for the entire portfolio of photovoltaic power plants. Especially when using other switchboards, also EATON IKA.
The DC switchboard designed for wall mounting, IP65, serves as the input switchboard from the photovoltaic panels (to the inverter) for the entire portfolio of photovoltaic power plants. Especially when using other switchboards, also EATON IKA.

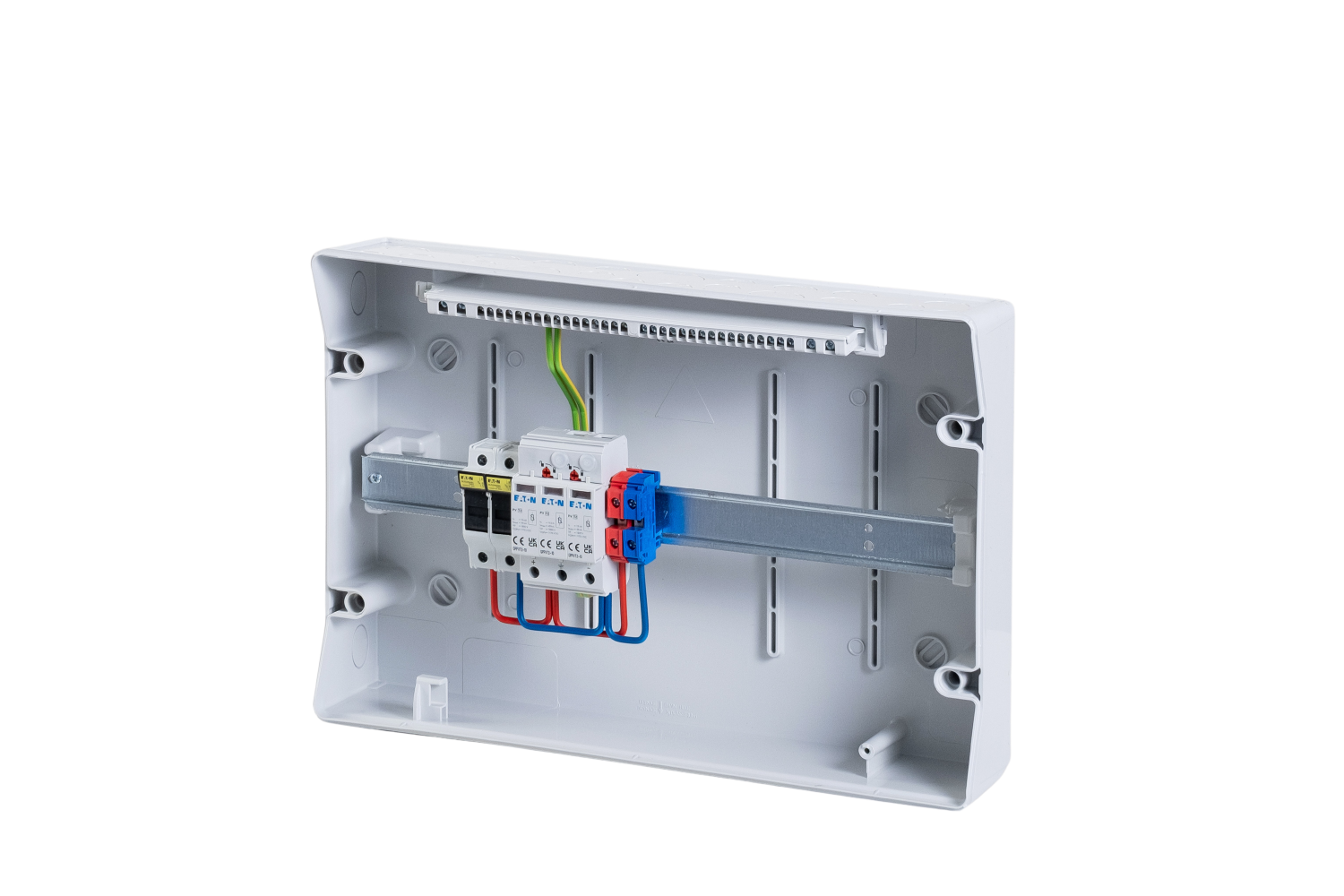

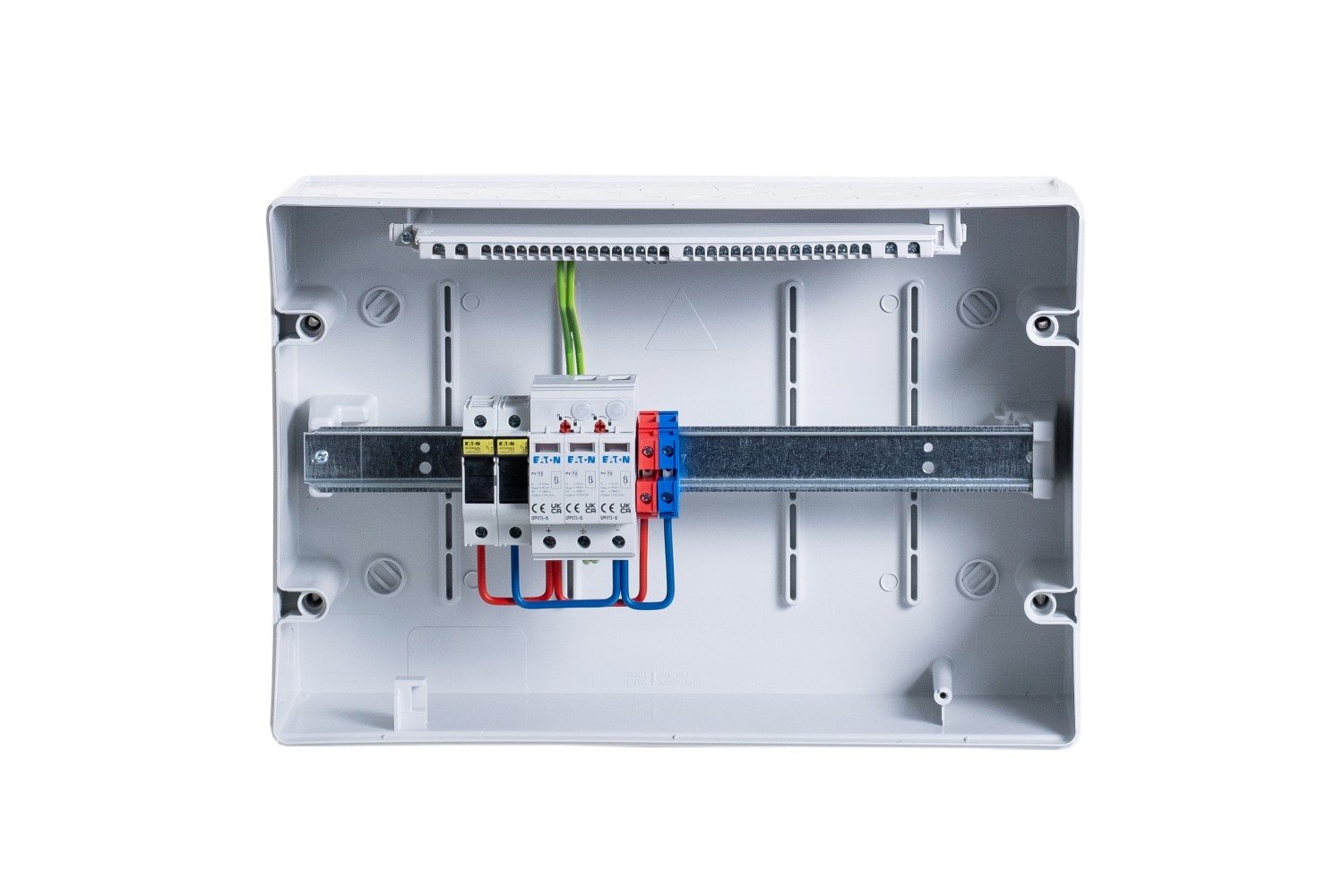

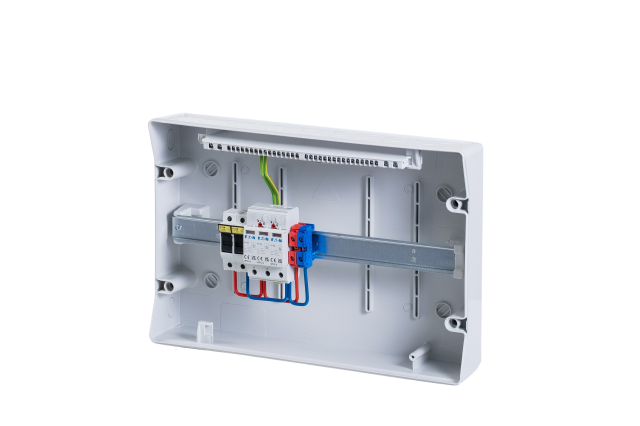

The switchboard is equipped with a DC overvoltage arrester with fuse disconnectors including gPV fuses to protect the DC input to the inverter.
Suitable to combine with switchboards for the alternating part of the installation installed in EATON IKA switchboards.
Inverter type | All types of inverters |
UV resistance | No |
IP coverage | 65/20 |
Number of strings | 1 |
Inverter power (max. kW) | 3.7kW |
Inverter power (max. kW) | 11kW |
Inverter power (max. kW) | 13.8kW |
Inverter power (max. kW) | 17.3kW |
Inverter power (max. kW) | 22.1kW |
Inverter power (max. kW) | 27.6kW |
Inverter power (max. kW) | 34.5kW |
Inverter power (max. kW) | 43.5kW |
Inverter power (max. kW) | 55.2kW |
Inverter power (max. kW) | 69.0kW |
Inverter power (max. kW) | 86.3kW |
Inverter power (max. kW) | 110.4kW |
Suitable for hybrid inverters | Yes |
Suitable for mains inverters | Yes |
Suitable for Growatt | Yes |
suitable for Solis | Yes |
Suitable for GoodWe | Yes |
Suitable for DEYE | Yes |
Suitable for Solax | Yes |
Code | Manufacturer | Product | Description | Number of pieces |
---|---|---|---|---|
174200 | EATON | IKA-1/18-ST | Switchboard ON IP65 plaster, transparent door, 1 row, 18 modules | 1 |
176090 | EATON | SPPVT2-10-2+PE | Surge arrester T2 (II, C), photovoltaic applications 1000V DC, max. short-circuit current 160A | 1 |
2625085 | EATON/ETI/OEZ | CH10x38 gPV 16A/1000V DC | Ultra-fast cylindrical fuse for photovoltaics, (UL standard), 10x38mm, 1100V DC, 15A | 2 |
CHPV2U | EATON | CHPV2U | Fuse disconnector, photovoltaic applications, 2-pole, 1000V AC / 30A, C10 (10x38mm) | 1 |
