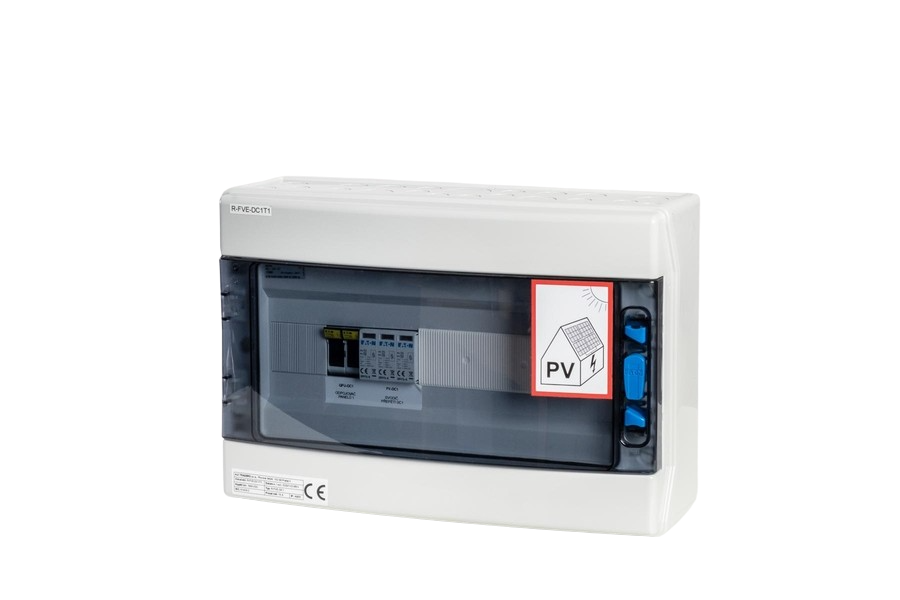

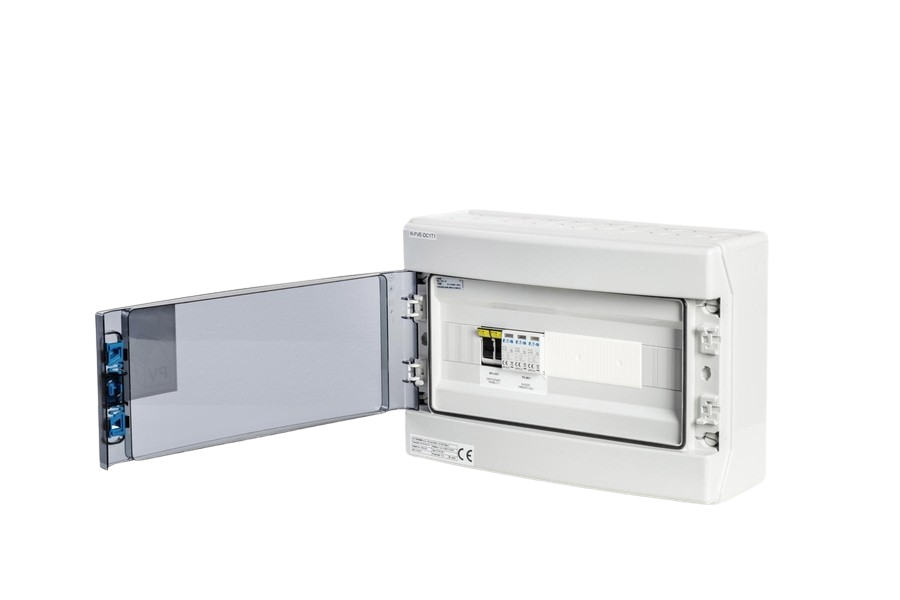

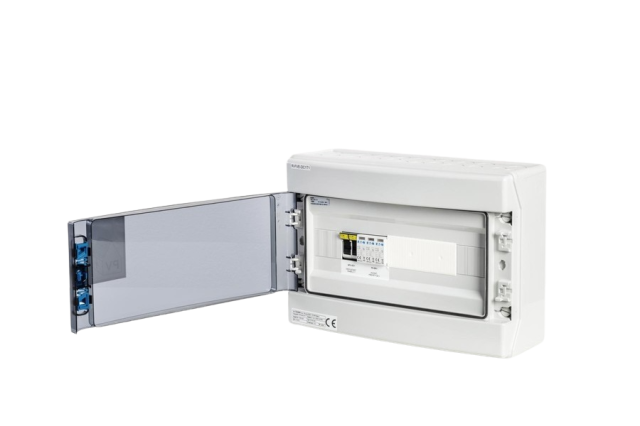

Switchboard R-FVE-DC1 IKA – protection class I+II

EAN: 8594217350215 SKU: R-FVE-DC1T1 IKA

DC switchboard designed for wall mounting, IP65 serving as an input switchboard from photovoltaic panels (to the inverter) for the entire portfolio of photovoltaic power plants. Especially when using other switchboards, also EATON IKA.

More information

Prices are visible only to registered users.

PRODUCT DESCRIPTION

Product description

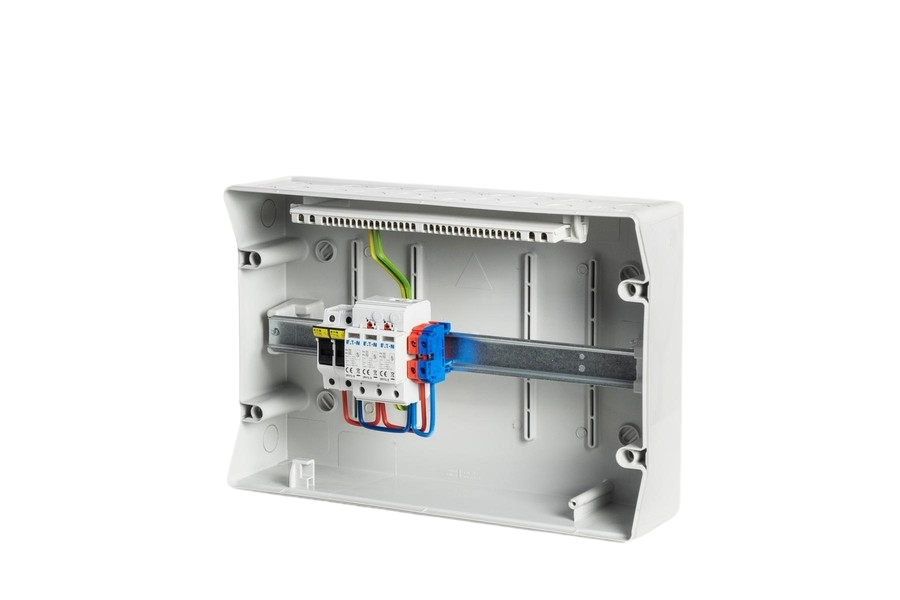

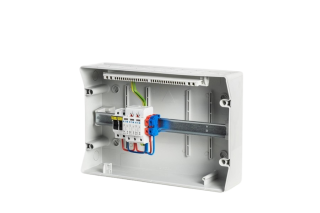

The switchboard is equipped with a DC overvoltage arrester with fuse disconnectors including gPV fuses to protect the DC input to the inverter.

Suitable to combine with switchboards for the AC part of the installation installed in EATON IKA switchboards.

Main parameters

Inverter type

All types of inverters

Other parameters

UV resistance	No
IP coverage	65/20
Number of strings	1
Weight	2.6kg

Inverter parameters

Inverter power (max. kW)	3.7kW
Inverter power (max. kW)	11kW
Inverter power (max. kW)	13.8kW
Inverter power (max. kW)	17.3kW
Inverter power (max. kW)	22.1kW
Inverter power (max. kW)	27.6kW
Inverter power (max. kW)	34.5kW
Inverter power (max. kW)	43.5kW
Inverter power (max. kW)	55.2kW
Inverter power (max. kW)	69.0kW
Inverter power (max. kW)	86.3kW
Inverter power (max. kW)	110.4kW
Suitable for hybrid inverters	Yes
Suitable for mains inverters	Yes

Code	Manufacturer	Product	Description	Number of pieces
174200	EATON	IKA-1/18-ST	Switchboard ON IP65 plaster, transparent door, 1 row, 18 modules	1
177256	EATON	SPPVT12-10-2+PE	Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 1000V DC, max. short-circuit current 1000A	1
2625085	EATON/ETI/OEZ	CH10x38 gPV 16A/1000V DC	Ultra-fast cylindrical fuse for photovoltaics, (UL standard), 10x38mm, 1100V DC, 15A	2
CHPV2U	EATON	CHPV2U	Fuse disconnector, photovoltaic applications, 2-pole, 1000V AC / 30A, C10 (10x38mm)	1
