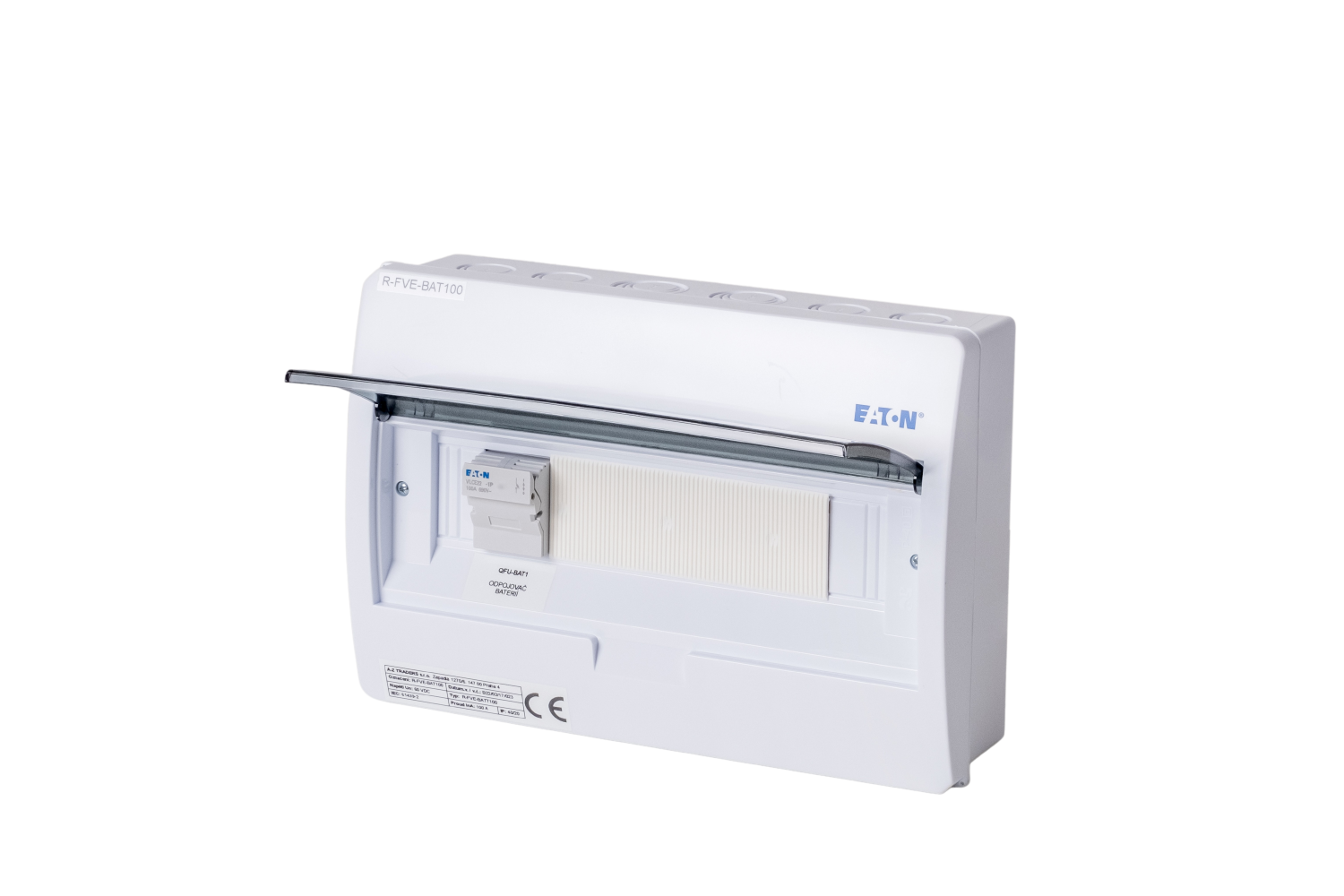

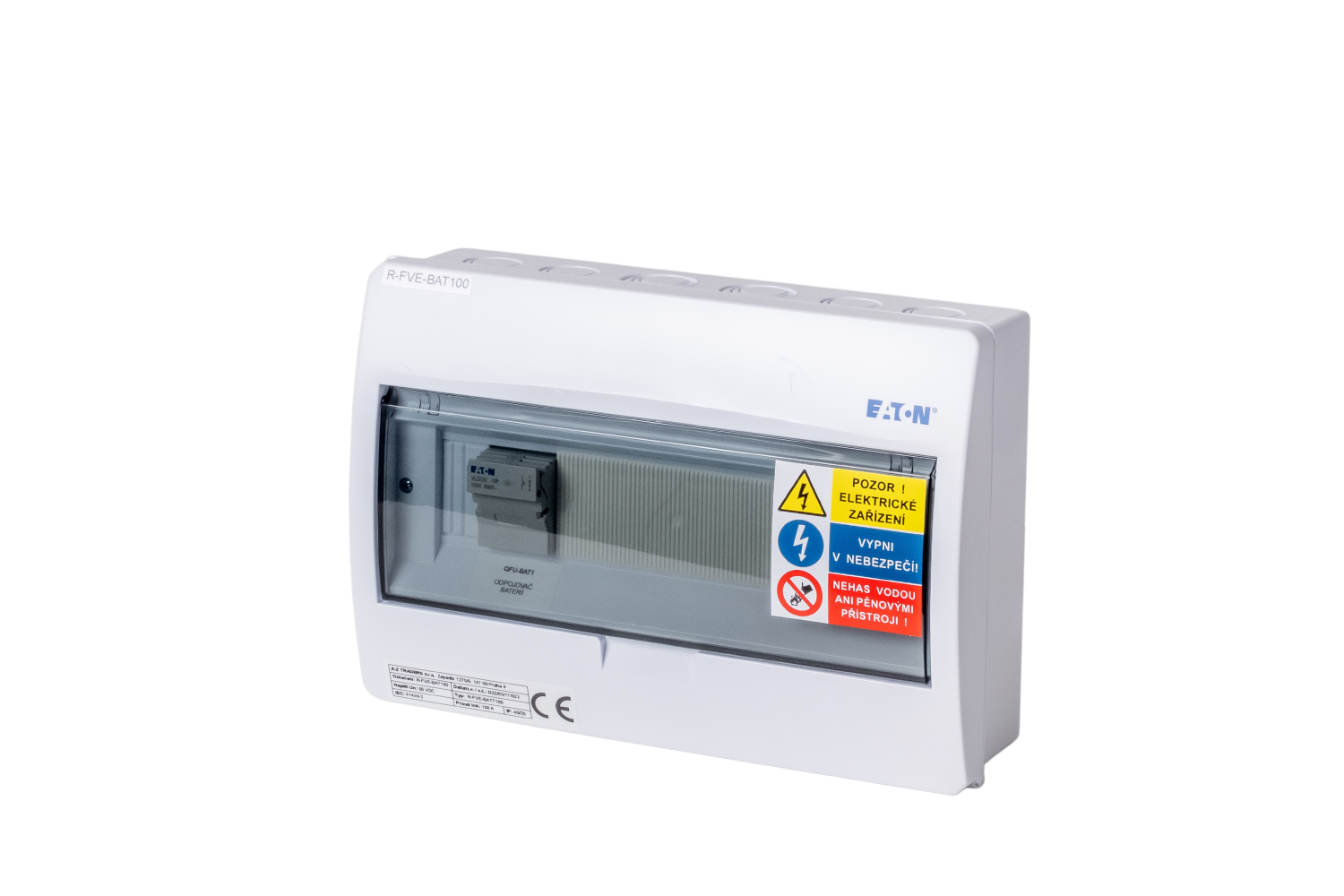

Switchboard R-FVE-BAT100

AC switchgear designed for wall mounting, IP40/20 serving as an input/output switchgear (at the inverter) for single-phase PV power plants (typically Goodwe 3648-EM and 3648D-ES inverter) to ensure the protection of the outputs and outputs including the switch in case malfunction or switched off inverter.

Prices are visible only to registered users.
PRODUCT DESCRIPTION

PDF Product description

AC switchgear designed for wall mounting, IP40/20 serving as an input/output switchgear (at the inverter) for single-phase PV power plants (typically Goodwe 3648-EM and 3648D-ES inverter) to ensure the protection of the outputs and outputs including the switch in case malfunction or switched off inverter.

Its advantage is its small size, the possibility of "stacking" with other AC switchboards next to each other or under each other, which makes it possible to install them even in areas where space is a problem.

The switchboard is equipped with an AC overvoltage arrester, B16/1 circuit breakers for securing the input to the inverter and the output for the backup circuits, as well as a manual two-pole switch for bridging the backup circuits during service or switching off the inverter.

Suitable to combine with the switchgear R-FVE-DC1, R-FVE-DC2 and R-FVE-BAT100 for the DC part of the installation and R-FVE-Z1 for the output with sockets.

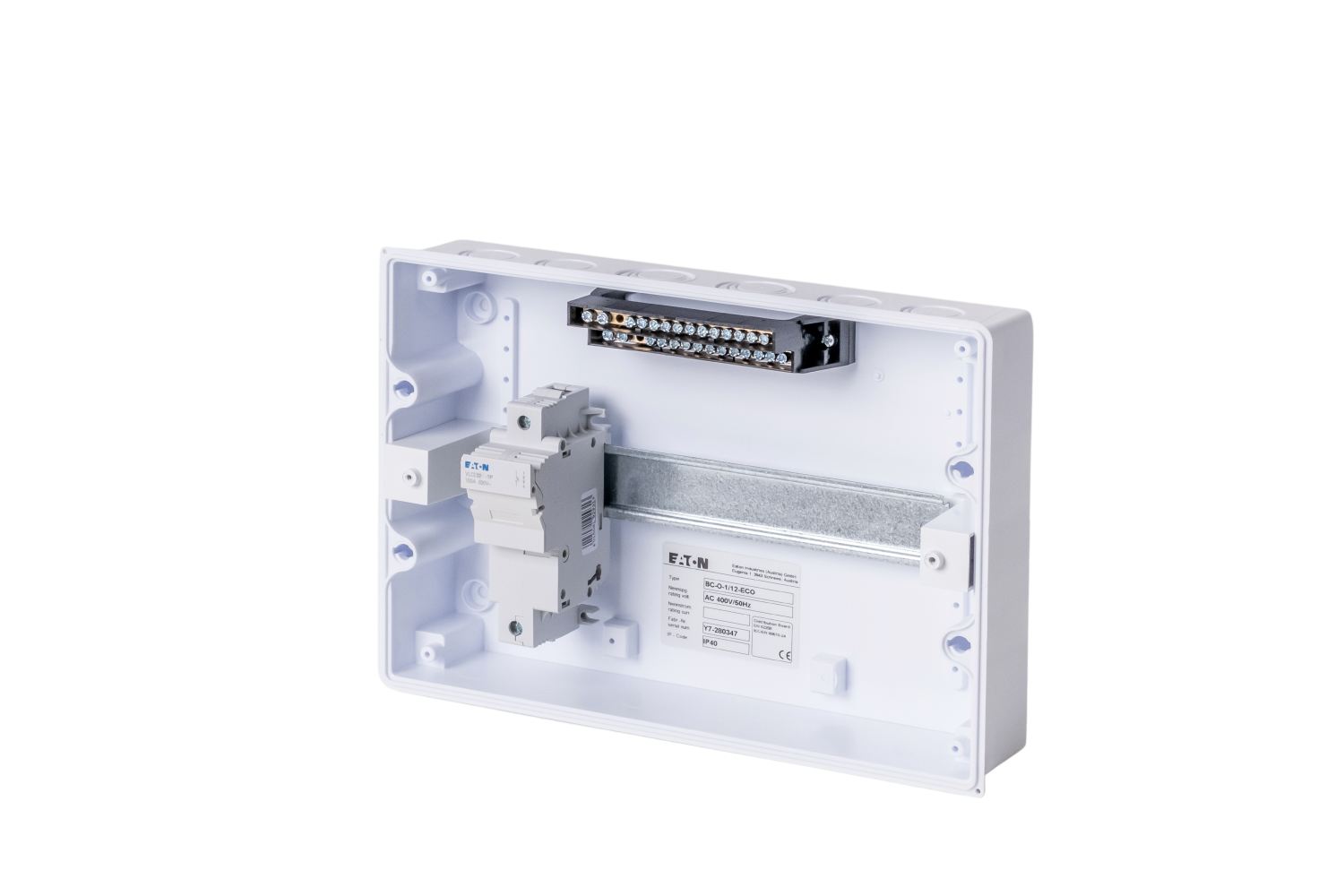

Code Manufacturer Product Description Number of pieces
280347 EATON BC-O-1/12-ECO Surface-mounted distribution board, transparent plastic door, 1 row, 12 modules 1
6756 EATON/ETI/OEZ PV22 100A GG Cylindrical fuse GG 500V AC 100A C22(22.2x58mm) 1
192380 EATON VLCE22-1P Fuse switch disconnector for cylindrical fuses C22 up to 100A, 1-pole 1
