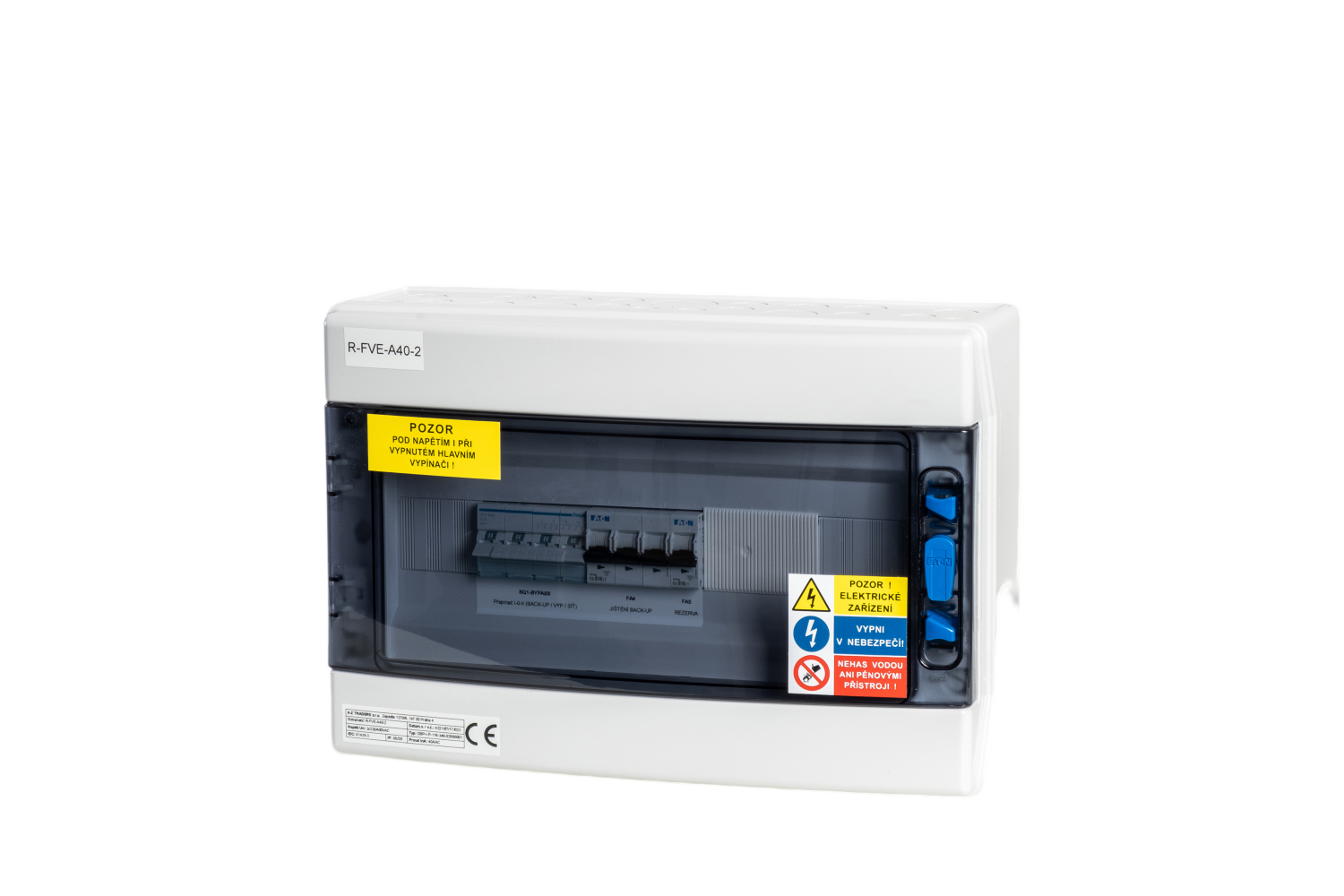

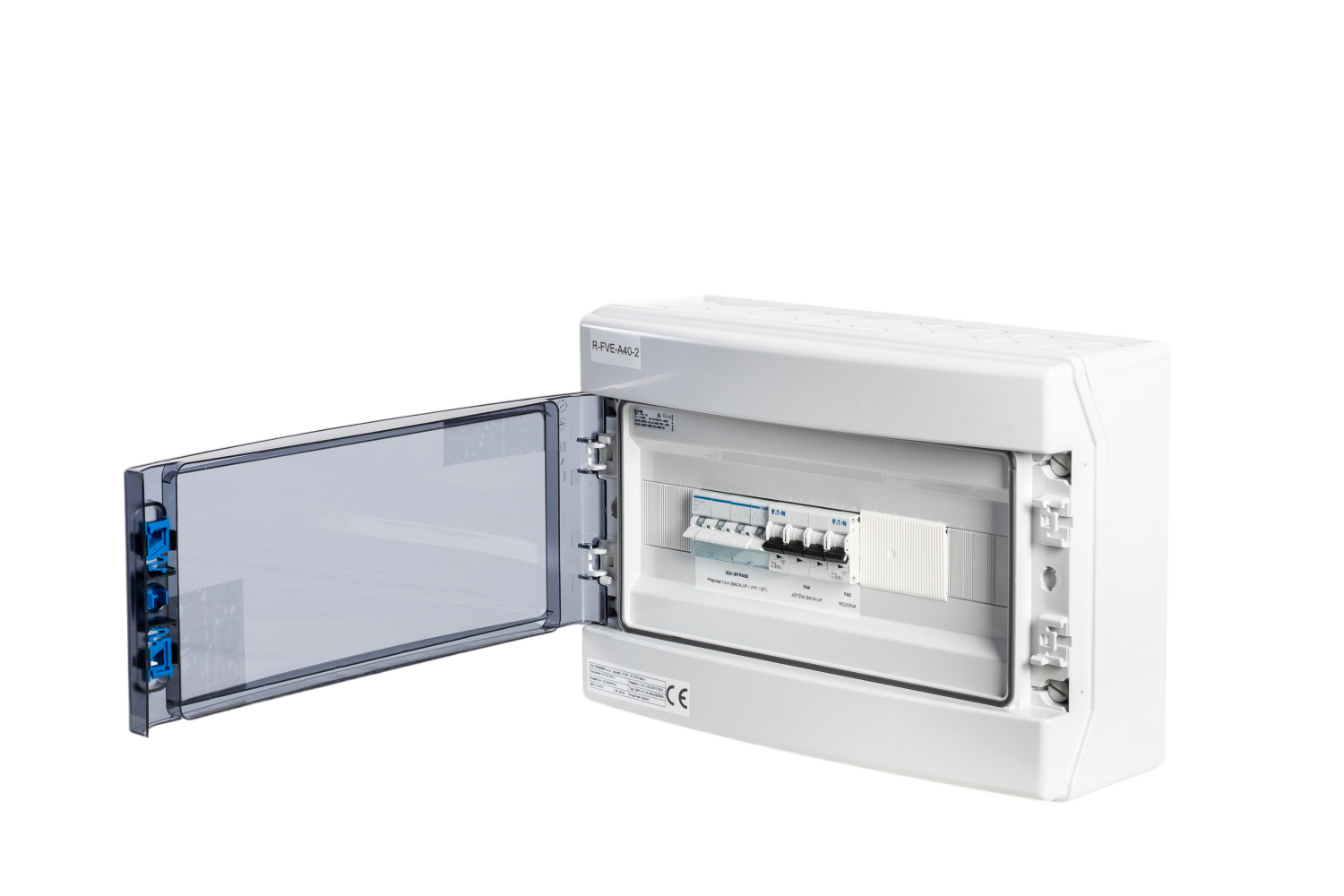

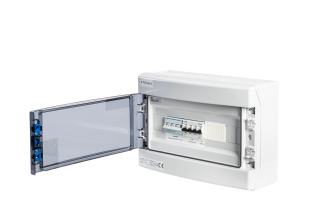

Switchboard R-FVE-A40-2

EAN: 8594217350086 SKU: R-FVE-A40-2

AC switchgear designed for wall mounting, IP65 used for manual operation of backup of a three-phase photovoltaic power plant in combination with a switch (typically Goodwe 4 to 10K-ET and Growatt 4 to 10K inverter).

More information

Prices are visible only to registered users.

PRODUCT DESCRIPTION

Product description

Its advantage is a manual transition from the network and backup - switching with a zero position. It is necessary to check the load during an electrical failure. energy to avoid overloading after switching the switch, because its function switches the whole house to inverter backup.

An indisputable advantage is minimal intervention in the customer's switchboard. The R-FVE-A40-2 switchgear is designed for a main circuit breaker in the column with a maximum of 40 A.

Main parameters

Use	Manual full back-up systems of the whole house
Inverter type	All types of inverters

Other parameters

UV resistance	No
IP coverage	65/20
Inverter circuit breaker	16
Number of phases	3

Inverter parameters

Inverter power (max. kW)	11kW
Suitable for hybrid inverters	Yes
Suitable for mains inverters	No

Inverter brands

Suitable for Growatt	Yes
suitable for Solis	Yes
Suitable for GoodWe	Yes
Suitable for DEYE	Yes
Suitable for Solax	Yes

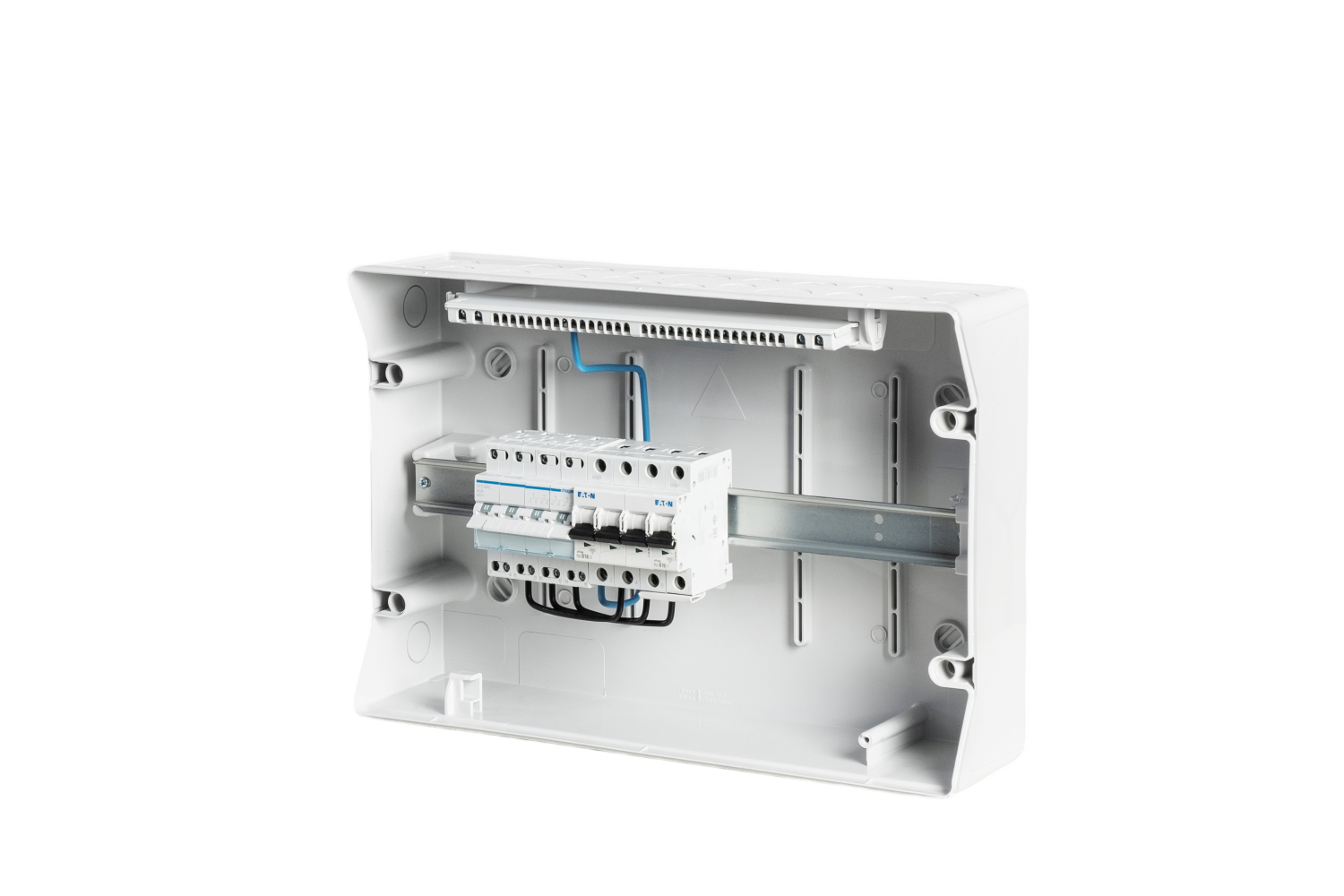

Distribution board layout

Option of two inverters

Code	Manufacturer	Product	Description	Number of pieces
174200	EATON	IKA-1/18-ST	Switchboard ON IP65 plaster, transparent door, 1 row, 18 modules	1
286589	EATON	PL6-B16/3	Circuit breaker PL6, char B, 3-pole, Icn=6kA, In=16A	1
286519	EATON	PL6-B10/1	Circuit breaker PL6, char B, 1-pole, Icn=6kA, In=10A	1
AZT	AZT	Cable harness	Cable harness	1
SFT440	HAGER	PREPINAC SITI SFT440 (I-0-II) 4P/40A	Group switch (I-0-II) 4P / 40A - output contact up	1
