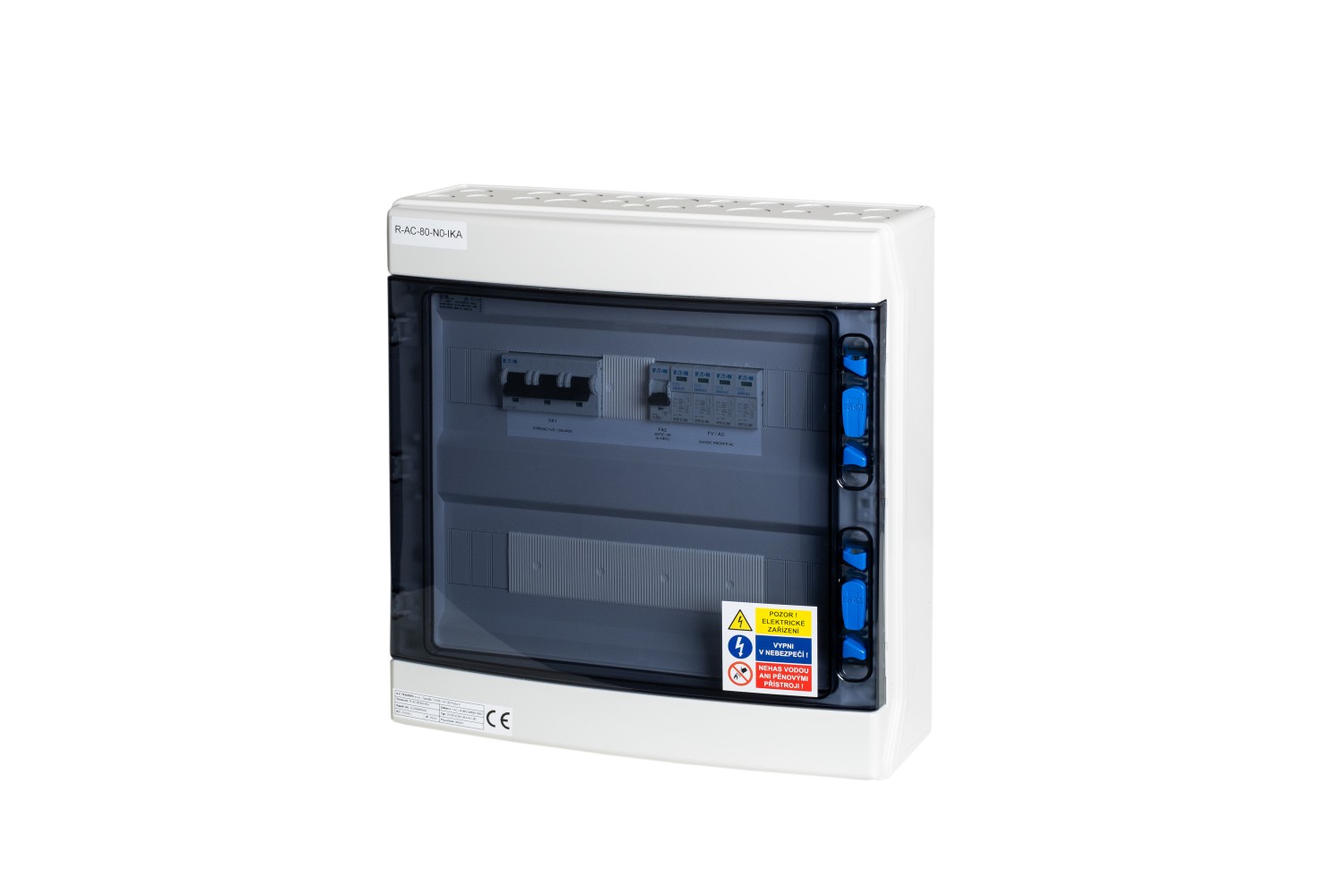

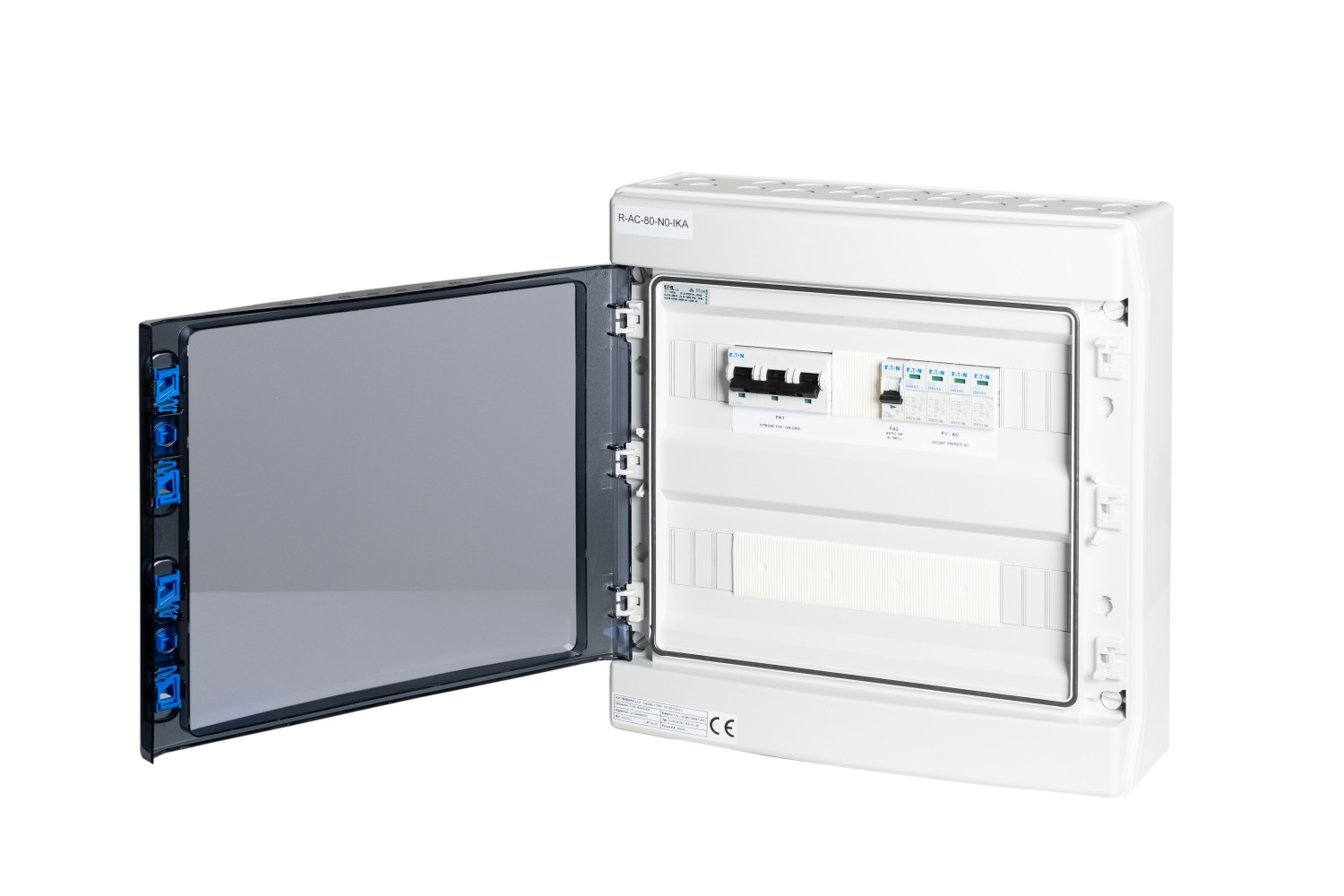

AC switchgear designed for wall mounting, IP65/20C serving as an input switchgear (at the inverter) for three-phase photovoltaic power plants (typically inverters: GOODWE, SOLAX, GROWATT, WATTSONIC and others).
AC switchgear designed for wall mounting, IP65/20C serving as an input switchgear (at the inverter) for three-phase photovoltaic power plants (typically inverters: GOODWE, SOLAX, GROWATT, WATTSONIC and others).
Its advantage is its small size, the possibility of "stacking" with other AC switchboards next to each other or under each other, which makes it possible to install them even in areas where space is a problem.

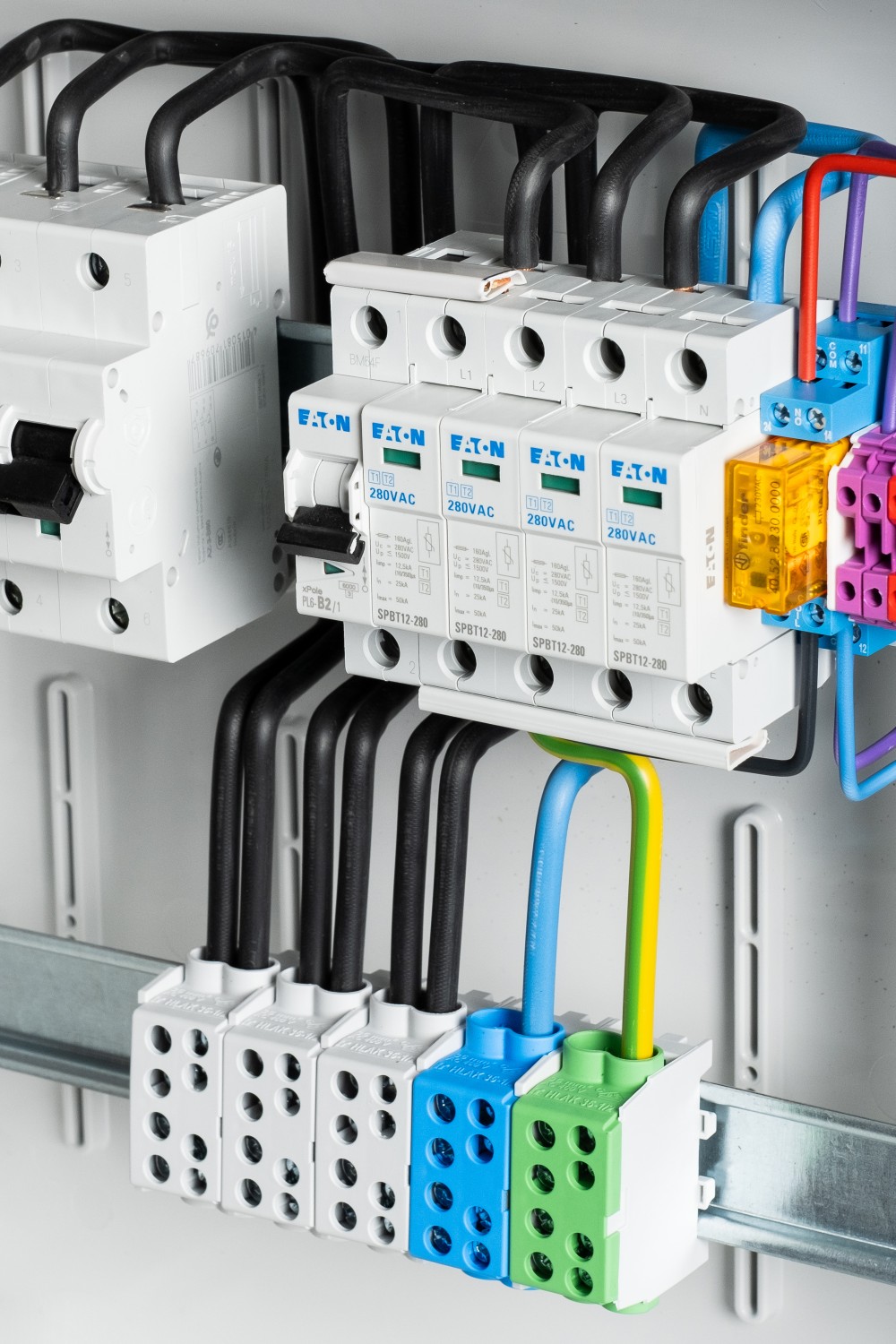

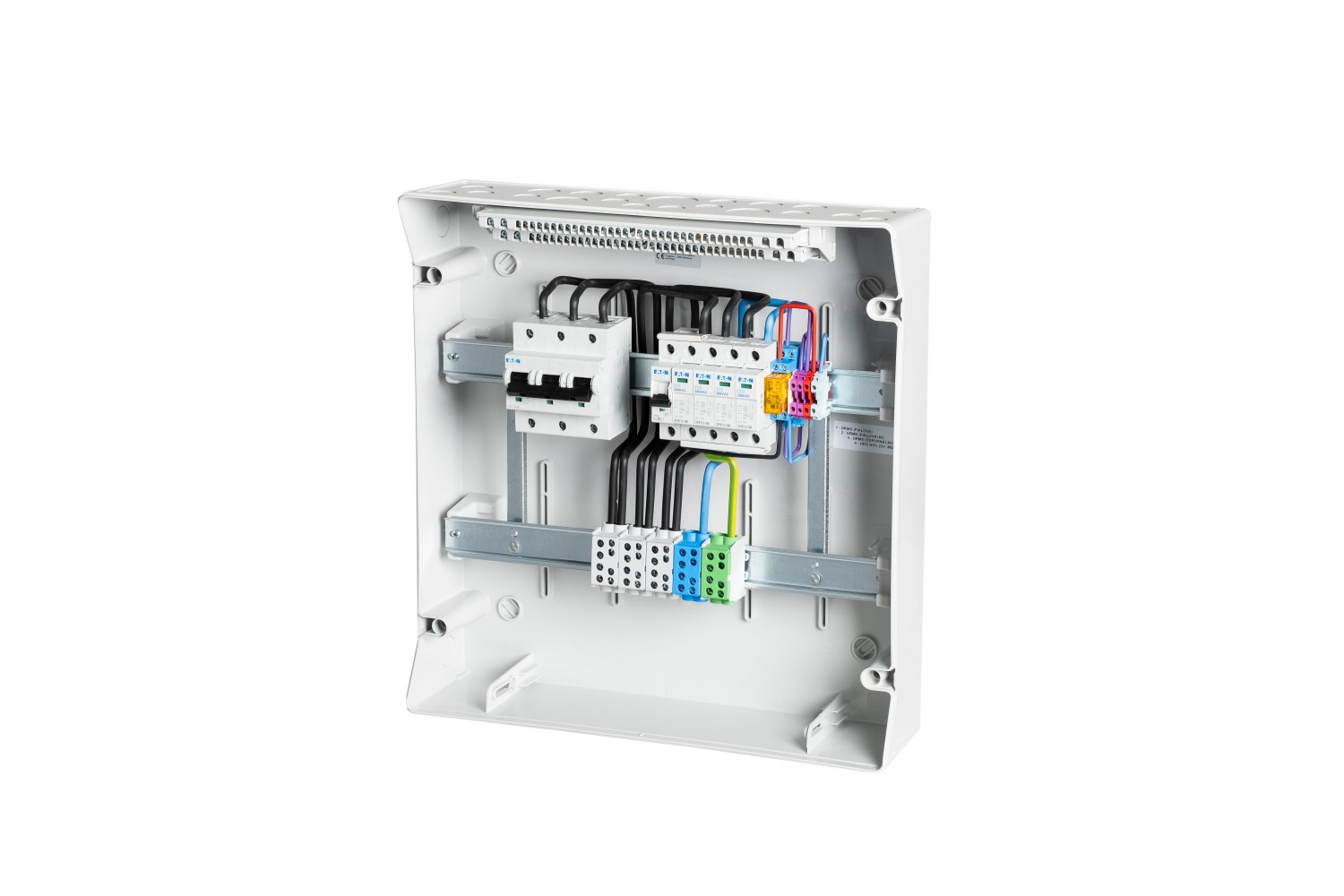

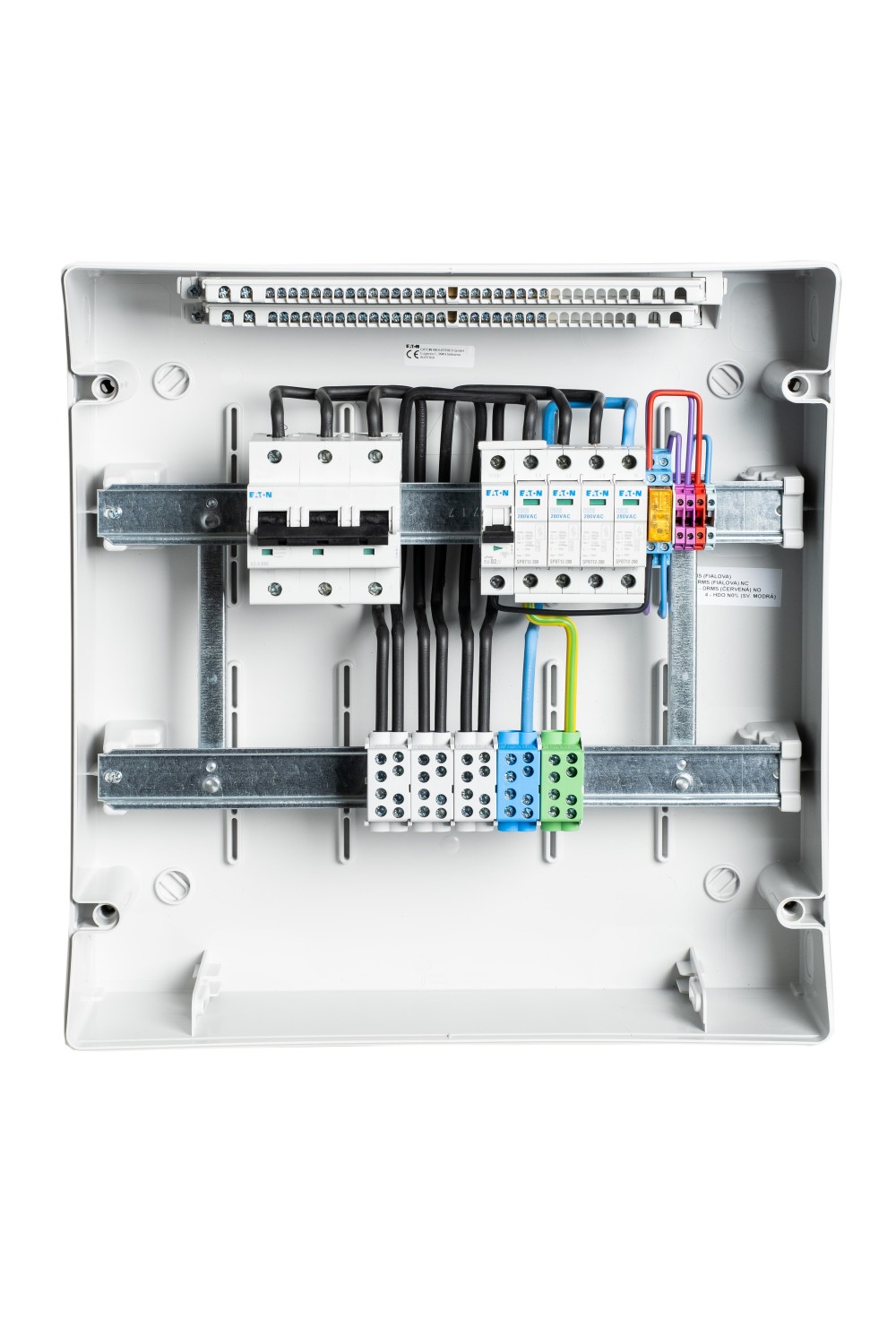

The switchboard is fitted with an AC surge arrester T1+T2, a B80/3 circuit breaker to protect the input to the inverter. Furthermore, Circuit Breaker B2/1 which secures the SOCKET/RELAY Finder, which ensures N0% to meet the conditions of the distribution (includes both NC and NO contact and center.) Which ensures use for all types of converters on the market.
Suitable to combine with switchboard R-FVE-DC5T1-IKA, R-FVE-DC6T1-IKA or up to R-FVE-DC9T1-IKA for the DC part of the installation and switchboard R-FVE-A40-2 for backup circuits with manual switch (bypassing the inverter ), or the R-FVE-Z4 switchboard with circuit breaker, sockets and fuse.
Use | Systems without backup circuits |
Inverter type | Without measurement / It is not placed in the switchboard |
IP coverage | 65/20 |
Inverter circuit breaker | 80 |
Number of phases | 3 |
Inverter power (max. kW) | 55.2kW |
Suitable for hybrid inverters | No |
Suitable for mains inverters | Yes |
Suitable for Growatt | Yes |
suitable for Solis | Yes |
Suitable for GoodWe | Yes |
Suitable for DEYE | Yes |
Suitable for Solax | Yes |
Option of two inverters | NO |
Code | Manufacturer | Product | Description | Number of pieces |
---|---|---|---|---|
174201 | EATON | IKA-2/36-ST | Switchboard NA plaster IP65, transparent door, 2 row, 36 modules | 1 |
158331 | EATON | SPBT12-280/4 | Surge arrester class T1+T2 (B+C), 4-pole set for TN-S | 1 |
286516 | EATON | PL6-B2/1 | Circuit breaker PL6, char B, 1-pole, Icn=6kA, In=2A | 1 |
40528230 + 9565 | FINDER | RELAY 2P/8A 230AC + SOCKET 40/41/44/99.01 | Relay + Socket N0% (NC, NO, CENTER) | 1 |
174512 | EATON | AZ-3-B80 | Circuit breaker AZ, char B, 3-pole, In=80A, Icu=20kA | 1 |
