Switchboard R-AC-32-N0 IKA

EAN: 8594217350734 SKU: R-AC-32-N0 IKA

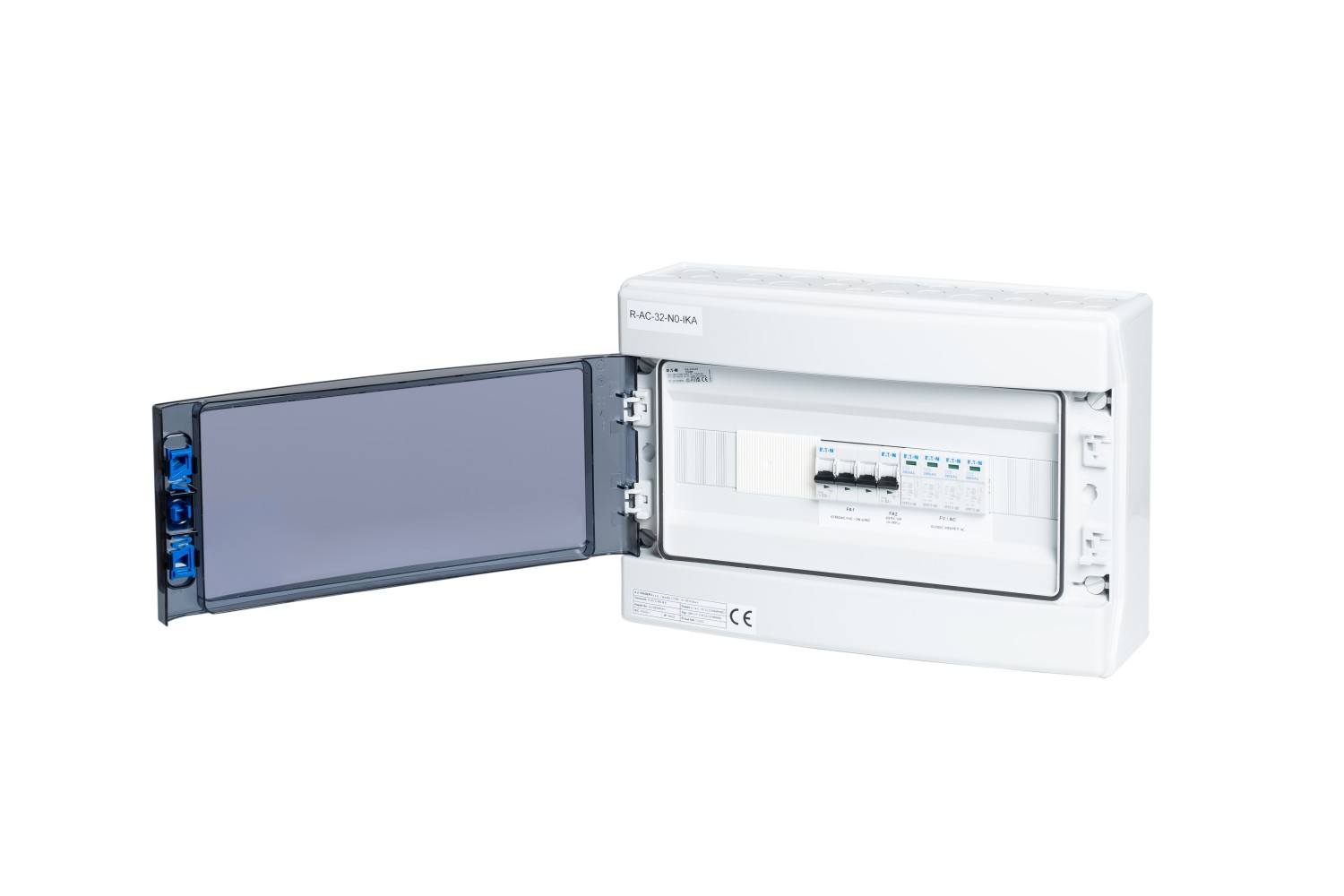

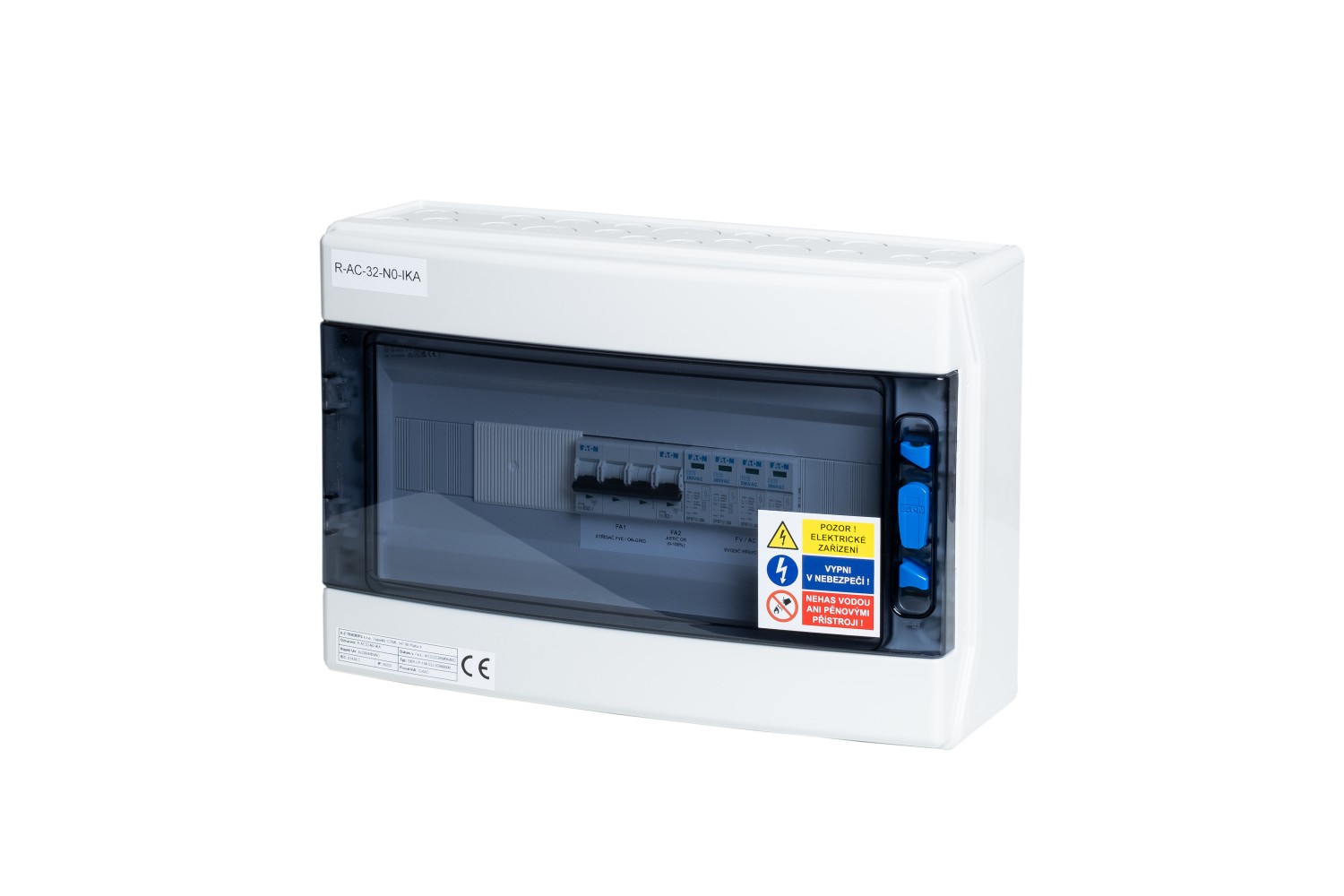

AC switchgear intended for wall mounting, IP65/20C serving as an input switchgear (at the inverter) for three-phase photovoltaic power plants (typically inverters: GOODWE, SOLAX, ,GROWATT, WATTSONIC and others).

More information

Prices are visible only to registered users.

PRODUCT DESCRIPTION

Product description

Its advantage is its small size, the possibility of "stacking" with other AC switchboards next to each other or under each other, which makes it possible to install them even in areas where space is a problem.

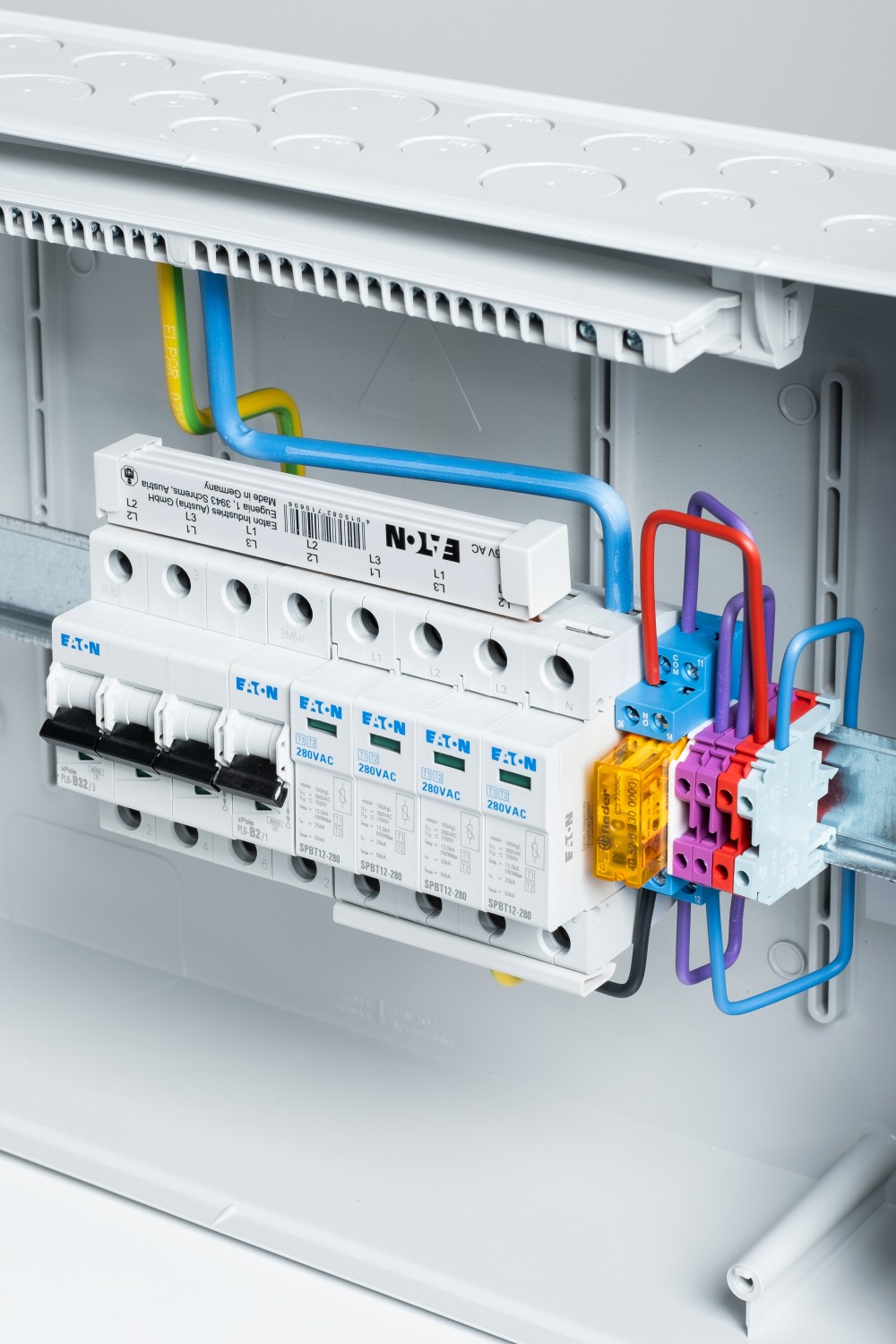

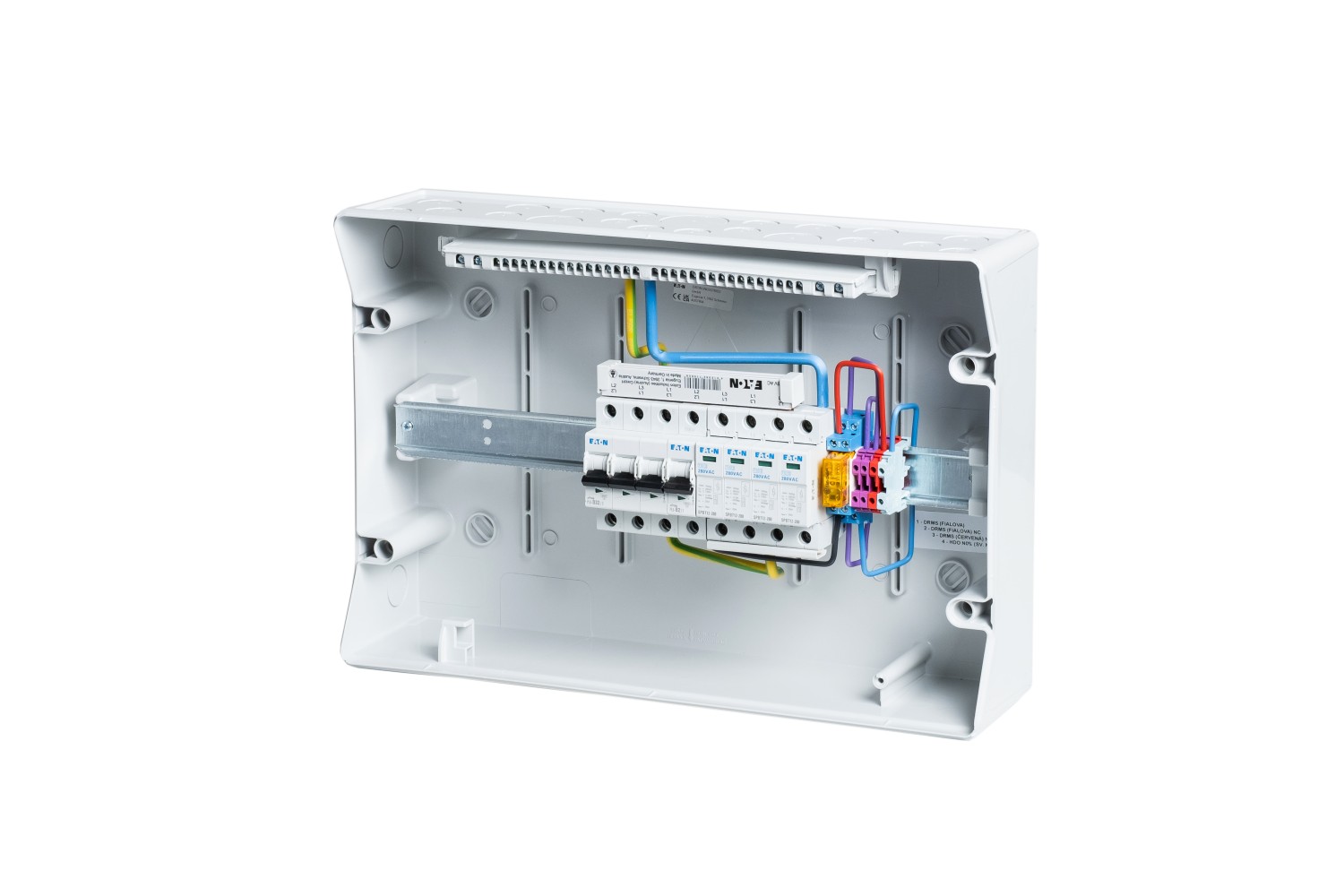

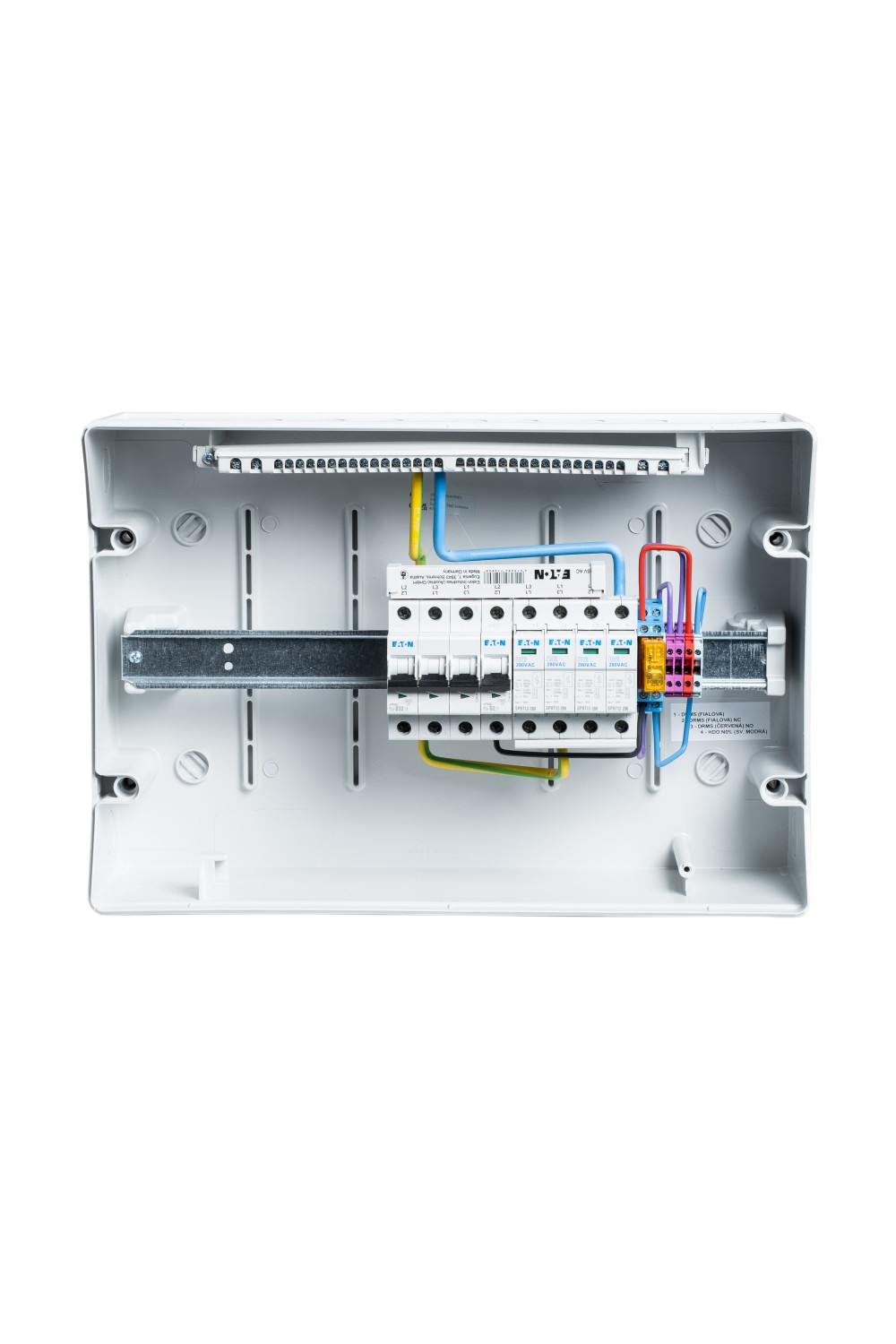

The switchboard is equipped with an AC surge arrester T1+T2, a circuit breaker B32/3 to protect the input to the inverter. Furthermore, Circuit Breaker B2/1 which secures the SOCKET/RELAY Finder, which ensures N0% to meet the conditions of the distribution (includes both NC and NO contact and center.) Which ensures use for all types of converters on the market.

Suitable to combine with switchboard R-FVE-DC2T1-IKA, R-FVE-DC3T1-IKA for the DC part of the installation and switchboard R-FVE-A40-2 for backup circuits with a manual switch (bypassing the inverter), or switchboard R-FVE-Z4 with circuit breaker, sockets and fuse.

Main parameters

Use	Systems without backup circuits
Inverter type	Without measurement / It is not placed in the switchboard

Other parameters

UV resistance	No
IP coverage	65/20
Inverter circuit breaker	32
Number of phases	3

Inverter parameters

Inverter power (max. kW)	22.1kW
Suitable for hybrid inverters	No
Suitable for mains inverters	Yes

Inverter brands

Suitable for Growatt	Yes
suitable for Solis	Yes
Suitable for GoodWe	Yes
Suitable for DEYE	Yes
Suitable for Solax	Yes

Distribution board layout

Option of two inverters

Code	Manufacturer	Product	Description	Number of pieces
174200	EATON	IKA-1/18-ST	Switchboard ON IP65 plaster, transparent door, 1 row, 18 modules	1
158331	EATON	SPBT12-280/4	Surge arrester class T1+T2 (B+C), 4-pole set for TN-S	1
286516	EATON	PL6-B2/1	Circuit breaker PL6, char B, 1-pole, Icn=6kA, In=2A	1
40528230 + 9565	FINDER	RELAY 2P/8A 230AC + SOCKET 40/41/44/99.01	Relay + Socket N0% (NC, NO, CENTER)	1
286592	EATON	PL6-B32/3	Circuit breaker PL6, char B, 3-pole, Icn=6kA, In=32A	1
