Switchboard R-AC-16-N0

EAN: 8594217350727 SKU: R-AC-16-N0

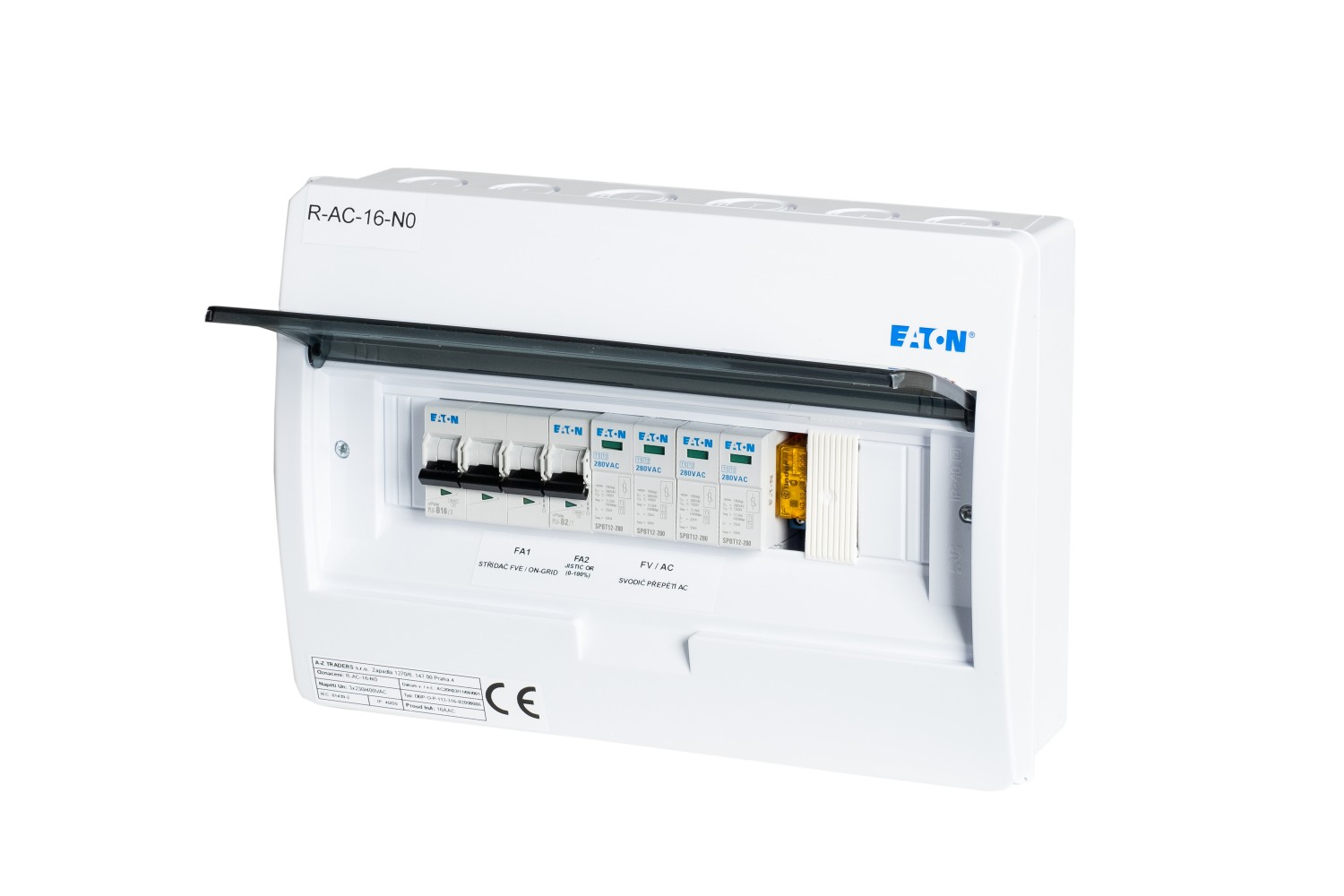

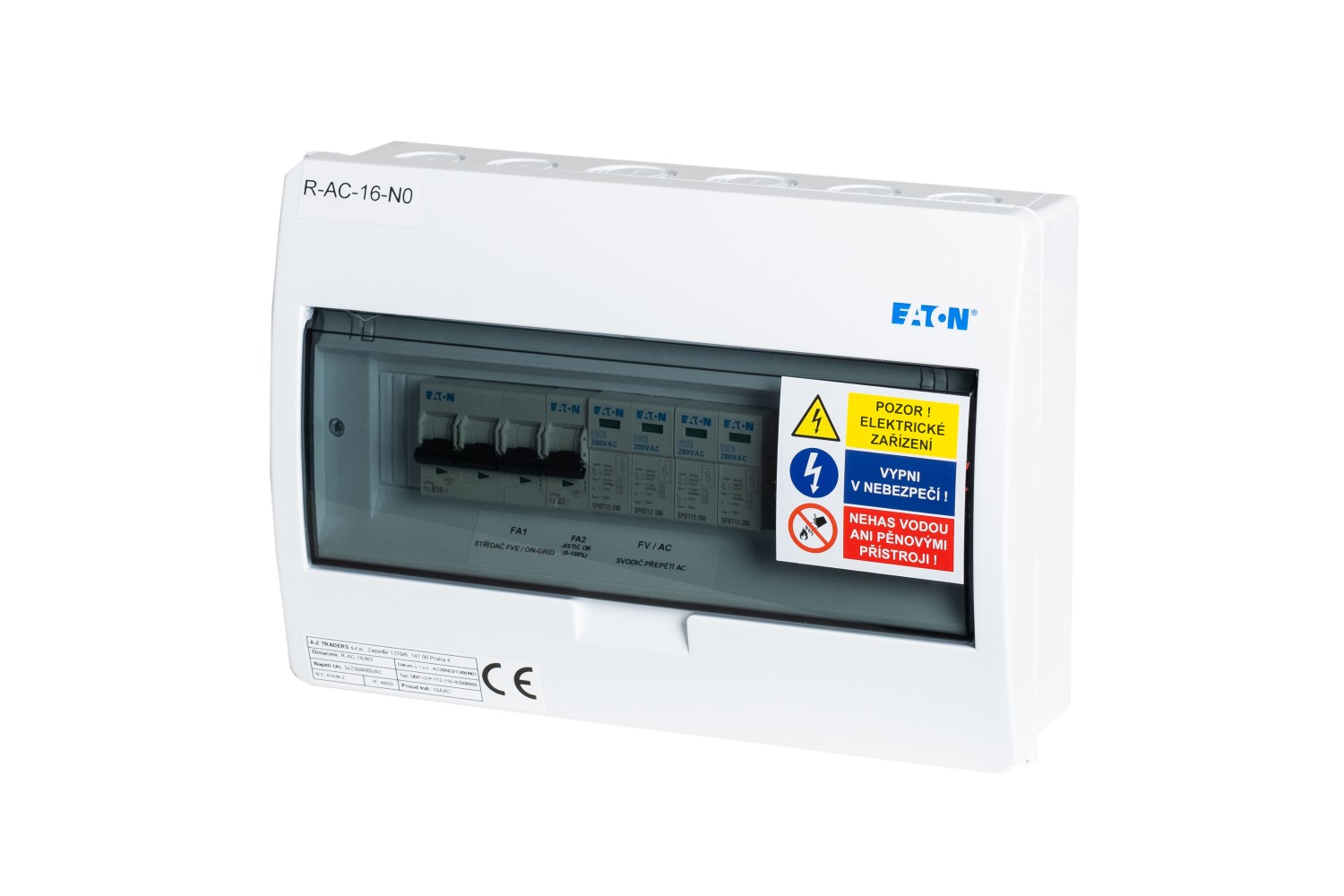

AC switchgear designed for wall mounting, IP40/20C serving as an input switchgear (at the inverter) for three-phase photovoltaic power plants (typically inverters: GOODWE, SOLAX, GROWATT, WATTSONIC and others).

More information

Prices are visible only to registered users.

PRODUCT DESCRIPTION

Product description

Its advantage is its small size, the possibility of "stacking" with other AC switchboards next to each other or under each other, which makes it possible to install them even in areas where space is a problem.

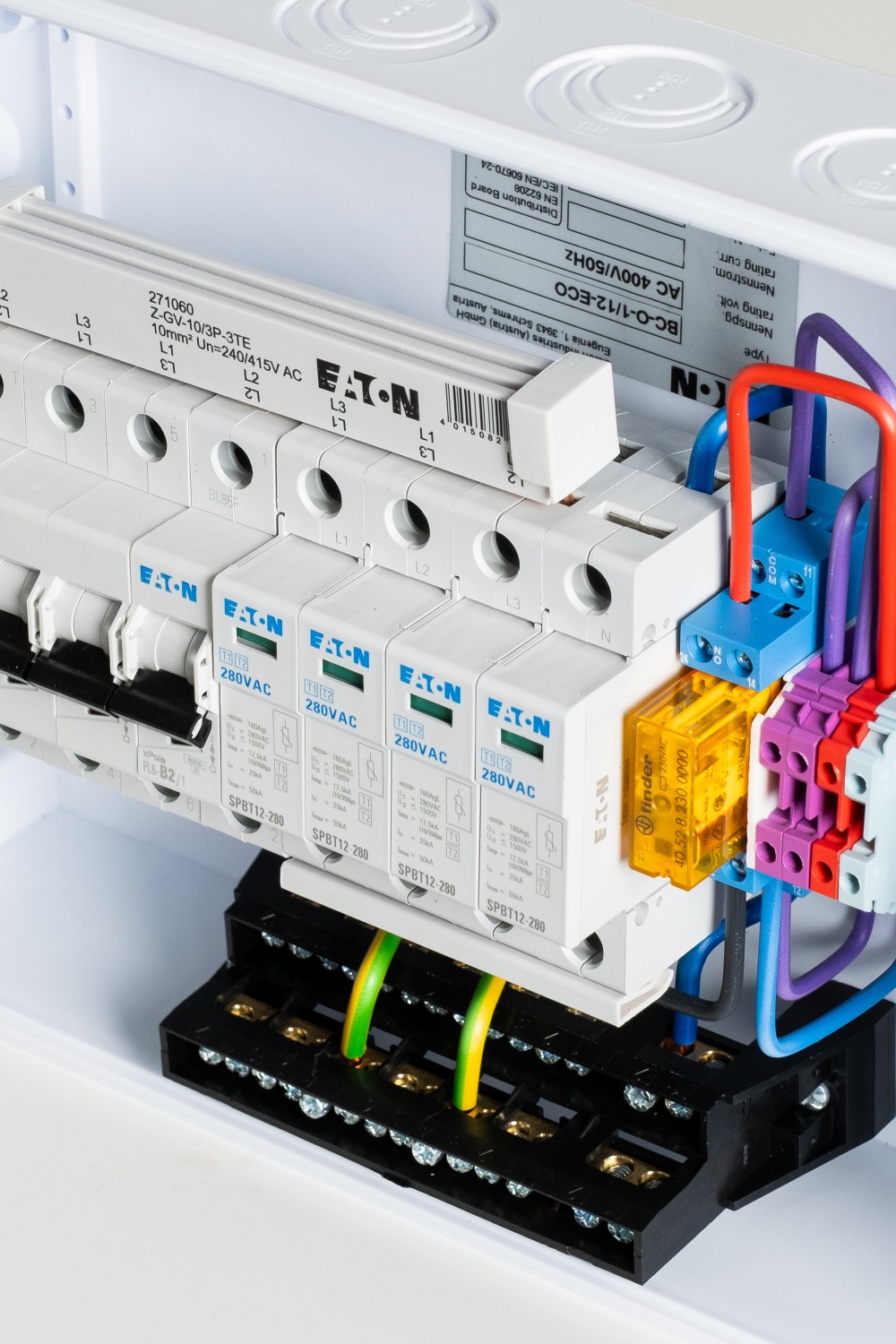

The switchboard is fitted with an AC surge arrester T1+T2, a circuit breaker B16/3 to protect the input to the inverter. Furthermore, the B2/1 Circuit Breaker, which secures the SOCKET/RELAY Finder, which ensures N0% to meet the conditions of the distribution (includes both NC and NO contact and center.) Which ensures use for all types of converters on the market.

Suitable to combine with switchboard R-FVE-DC1T1, R-FVE-DC2T1 for the DC part of the installation and switchboard R-FVE-M5+P3F for backup circuits with manual switch (bypassing the inverter) and protector, or switchboard R-FVE-Z3 with current protector, sockets and fuse.

Main parameters

Use	Systems without backup circuits
Inverter type	Without measurement / It is not placed in the switchboard

Other parameters

UV resistance	No
IP coverage	40/20
Inverter circuit breaker	16
Number of phases	3

Inverter parameters

Inverter power (max. kW)	11kW
Suitable for hybrid inverters	No
Suitable for mains inverters	Yes

Inverter brands

Suitable for Growatt	Yes
suitable for Solis	Yes
Suitable for GoodWe	Yes
Suitable for DEYE	Yes
Suitable for Solax	Yes

Distribution board layout

Option of two inverters

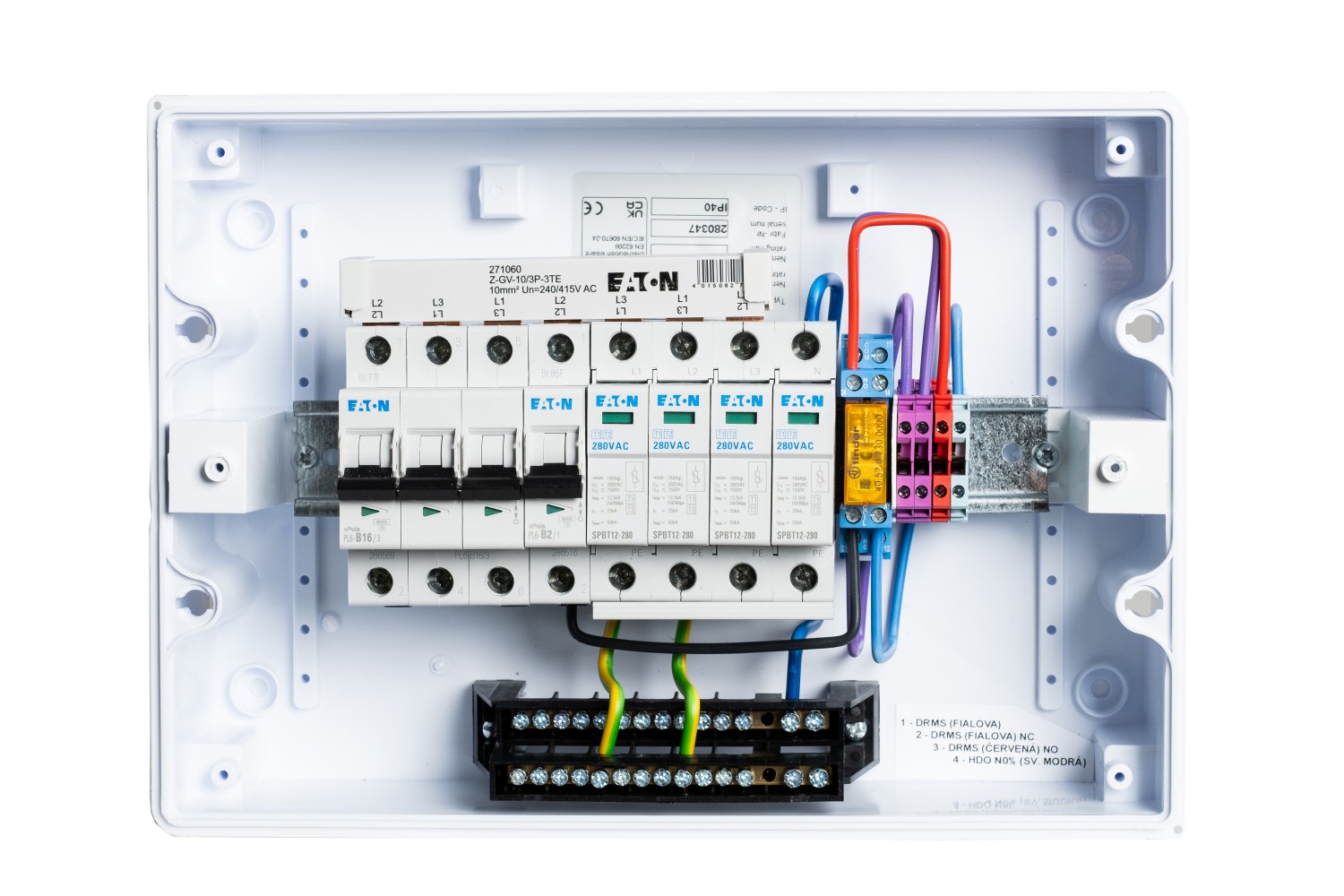

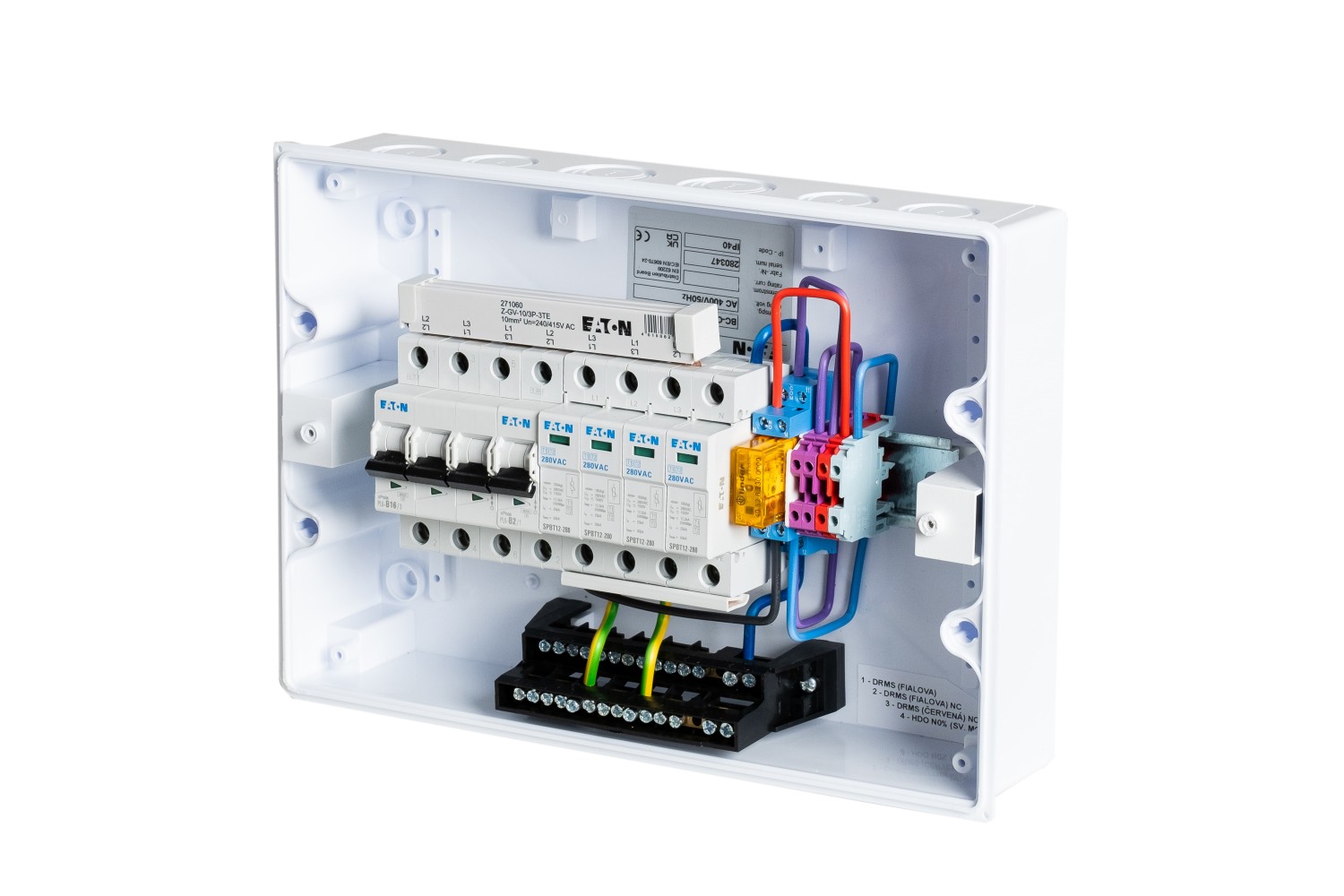

Code	Manufacturer	Product	Description	Number of pieces
280347	EATON	BC-O-1/12-ECO	Switchboard ON plaster, transparent plastic. door, 1 row, 12 modules	1
158331	EATON	SPBT12-280/4	Surge arrester class T1+T2 (B+C), 4-pole set for TN-S	1
286516	EATON	PL6-B2/1	Circuit breaker PL6, char B, 1-pole, Icn=6kA, In=2A	1
40528230 + 9565	FINDER	RELAY 2P/8A 230AC + SOCKET 40/41/44/99.01	Relay + Socket N0% (NC, NO, CENTER)	1
286589	EATON	PL6-B16/3	Circuit breaker PL6, char B, 3-pole, Icn=6kA, In=16A	1
