Switchboard DC9, T1+T2 IKA

EAN: 8594217350628 SKU: R-FVE-DC9T1 IKA

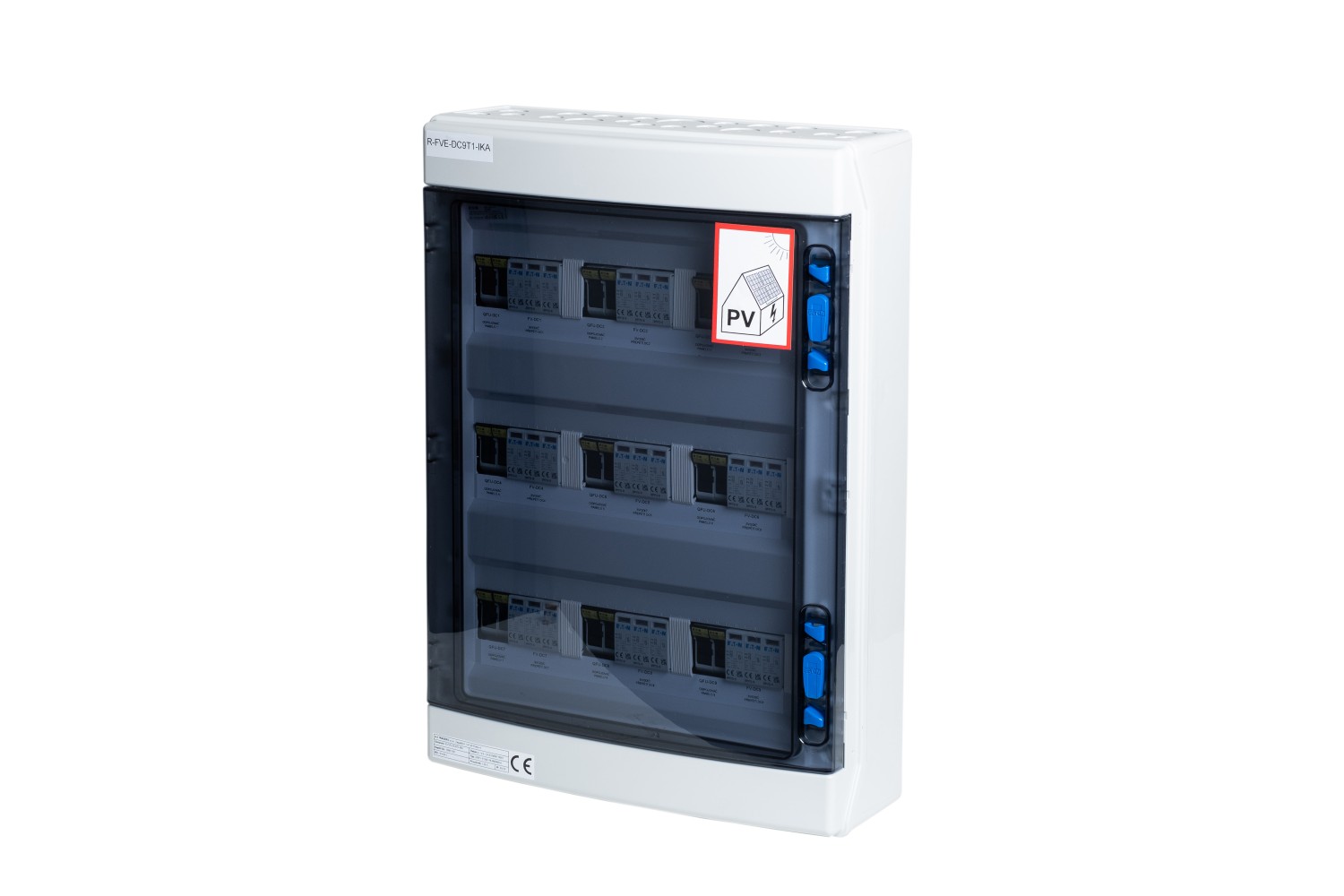

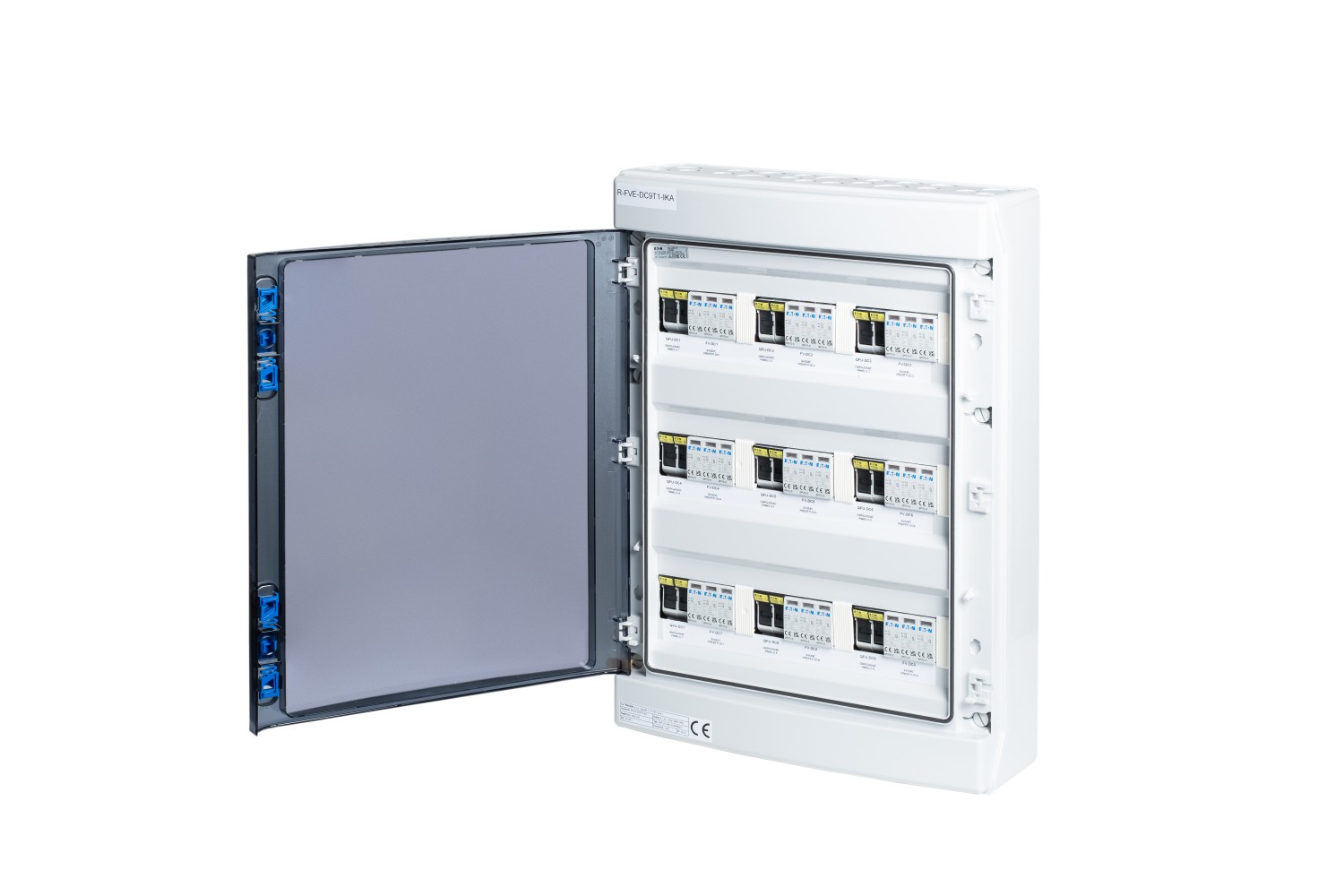

DC switchboard designed for wall mounting, IP65/20 serving as an input switchboard from photovoltaic panels (to the inverter) for the entire portfolio of photovoltaic power plants. Especially when using other switchboards, also EATON IKA-3/54-ST.

More information

Prices are visible only to registered users.

PRODUCT DESCRIPTION

Product description

Its advantage is its compact size, the possibility of "stacking" with other AC switchboards next to each other or under each other, which makes it possible to install it even in a space where higher coverage is required.

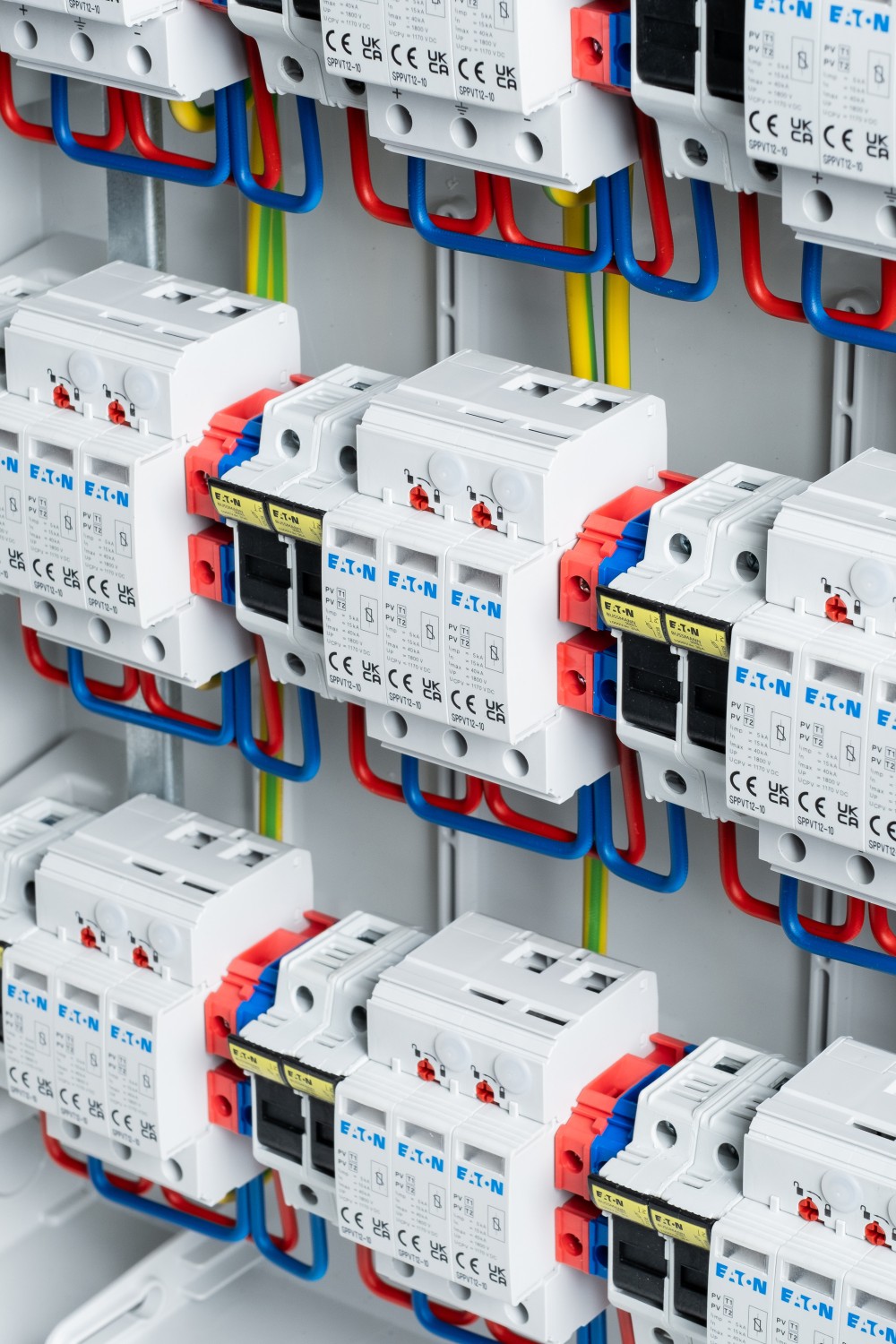

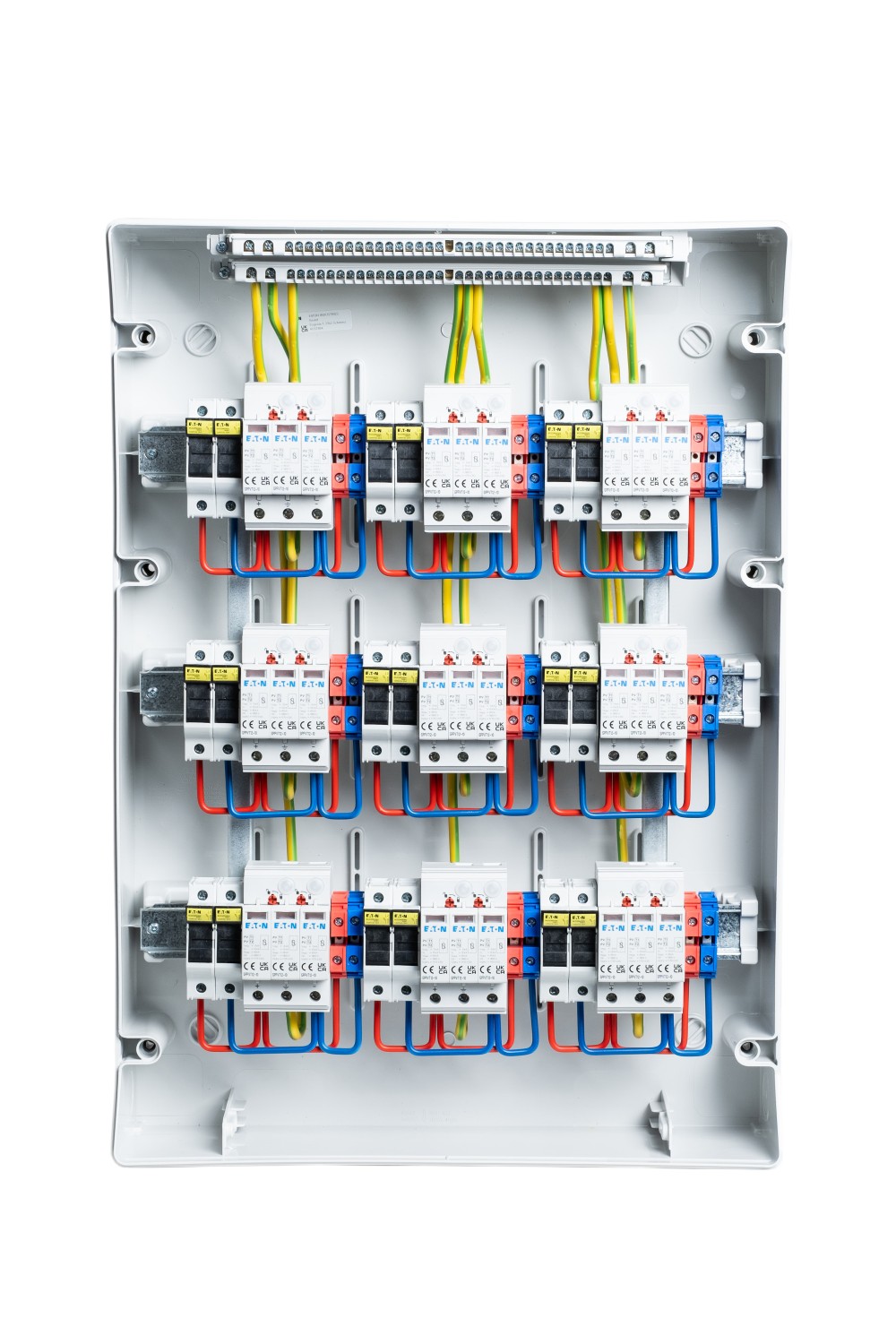

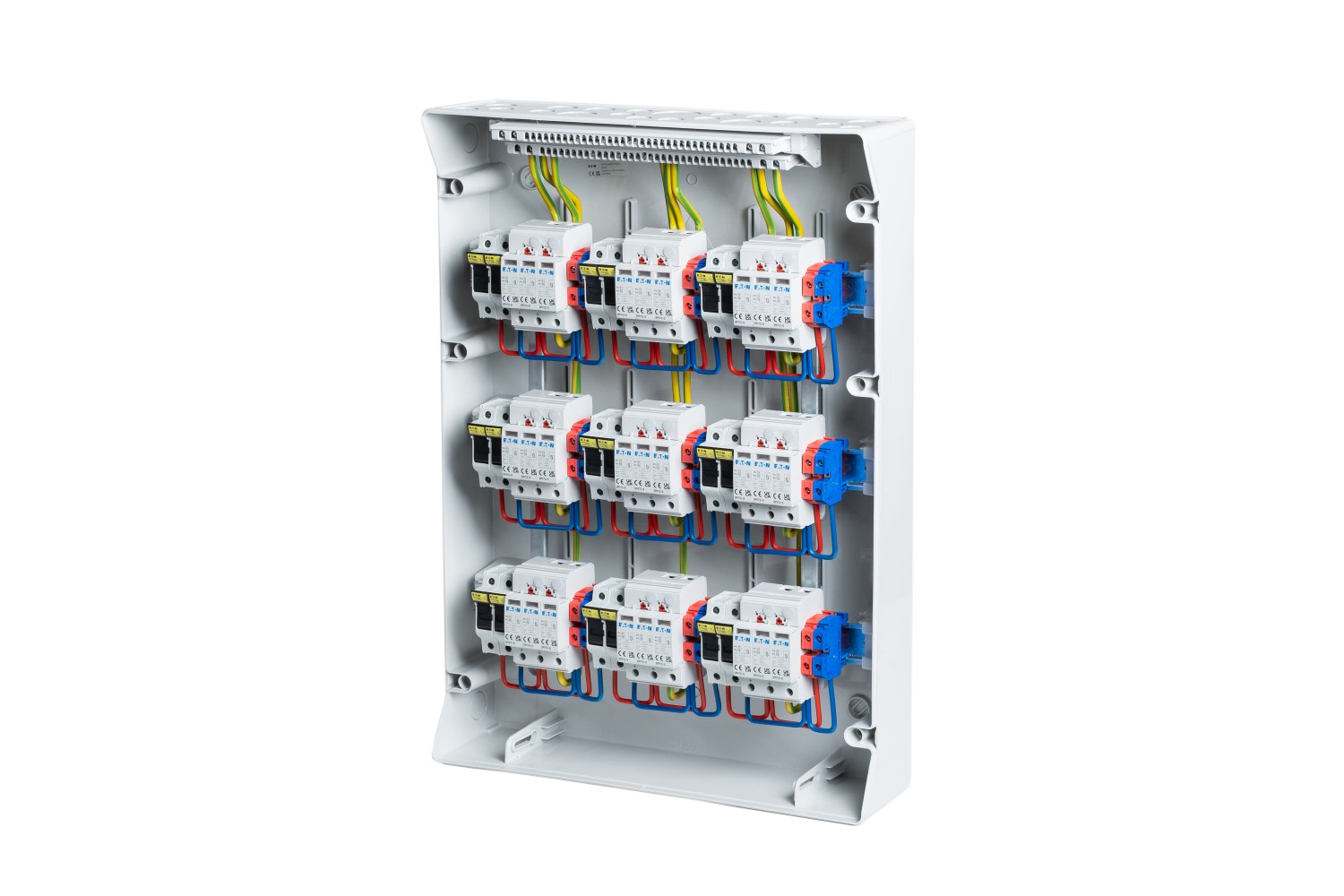

The switchboard is fitted with DC surge arresters - T1+T2 and fuse disconnectors including gPV fuses to protect the DC input to the inverter.

Suitable to combine with switchboards for the alternating part of the installation fitted in EATON IKA switchboards. For example R-AC-80-N0-IKA.

Code	Manufacturer	Product	Description	Number of pieces
174202	EATON	IKA-3/54-ST	Switchboard ON IP65 plaster, transparent door, 3 rows, 54 modules	1
177256	EATON	SPPVT12-10-2+PE	Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 1000V DC, max. short-circuit current 1000A	9
2625085	EATON/ETI/OEZ	CH10x38 gPV 15A/1000V DC	Ultra-fast cylindrical fuse for photovoltaics, (UL standard), 10x38mm, 1100V DC, 15A	18
CHPV2U	EATON	CHPV2U	Fuse disconnector, photovoltaic applications, 2-pole, 1000V AC / 30A, C10 (10x38mm)	9
