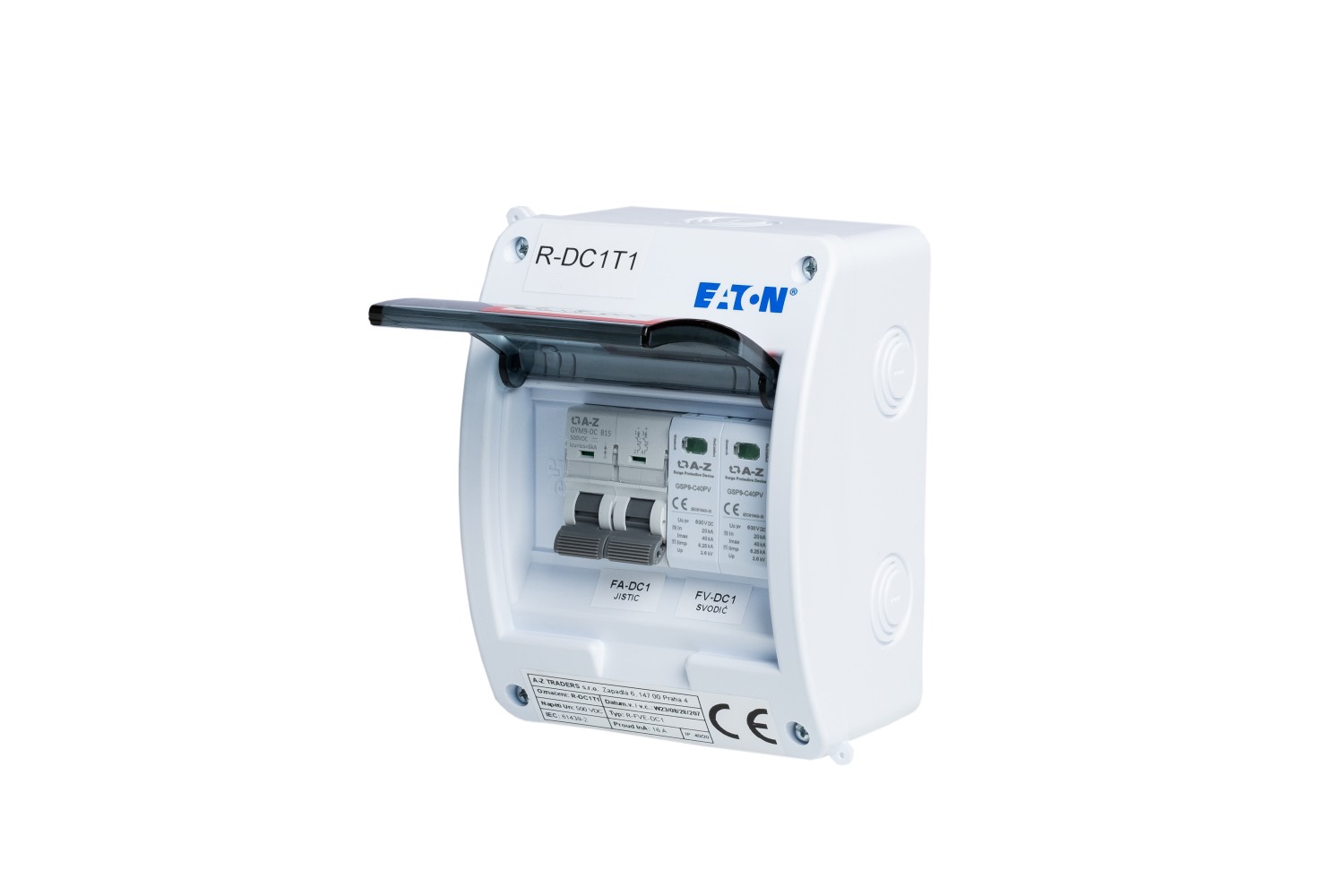

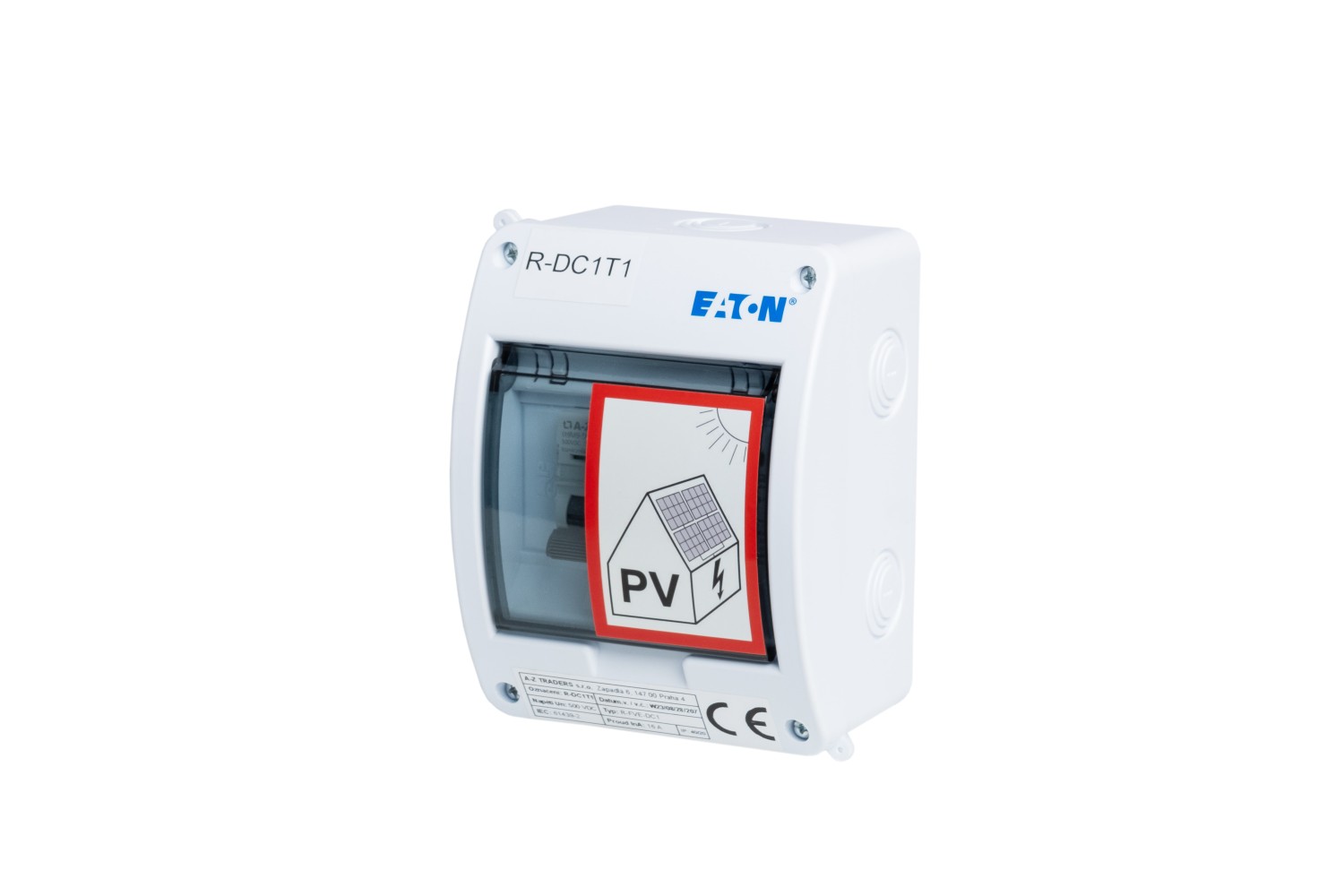

Switchboard DC1, T1 up to 500V

EAN: 8594217350901 SKU: R-DC1T1

DC distributor designed for wall mounting, IP40/20 serving as input distributor from photovoltaic panels (especially to AZ WATER INVERTER or inverter) when using water heating technology, or FVE chains up to 500 V.

More information

Prices are visible only to registered users.

PRODUCT DESCRIPTION

Product description

Its advantage is its small size, which makes it possible to install it even in a space where there is a problem with a lack of free space.

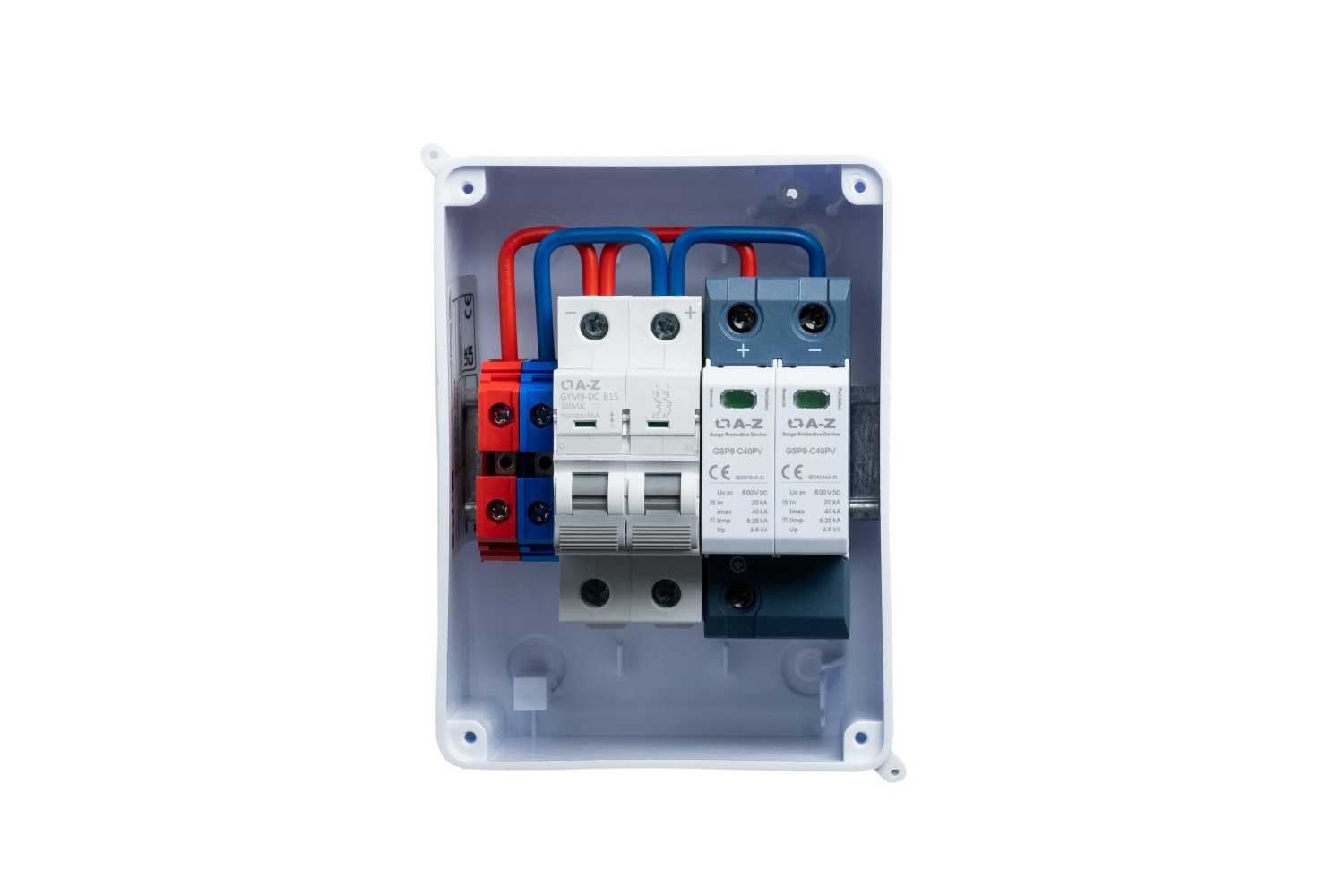

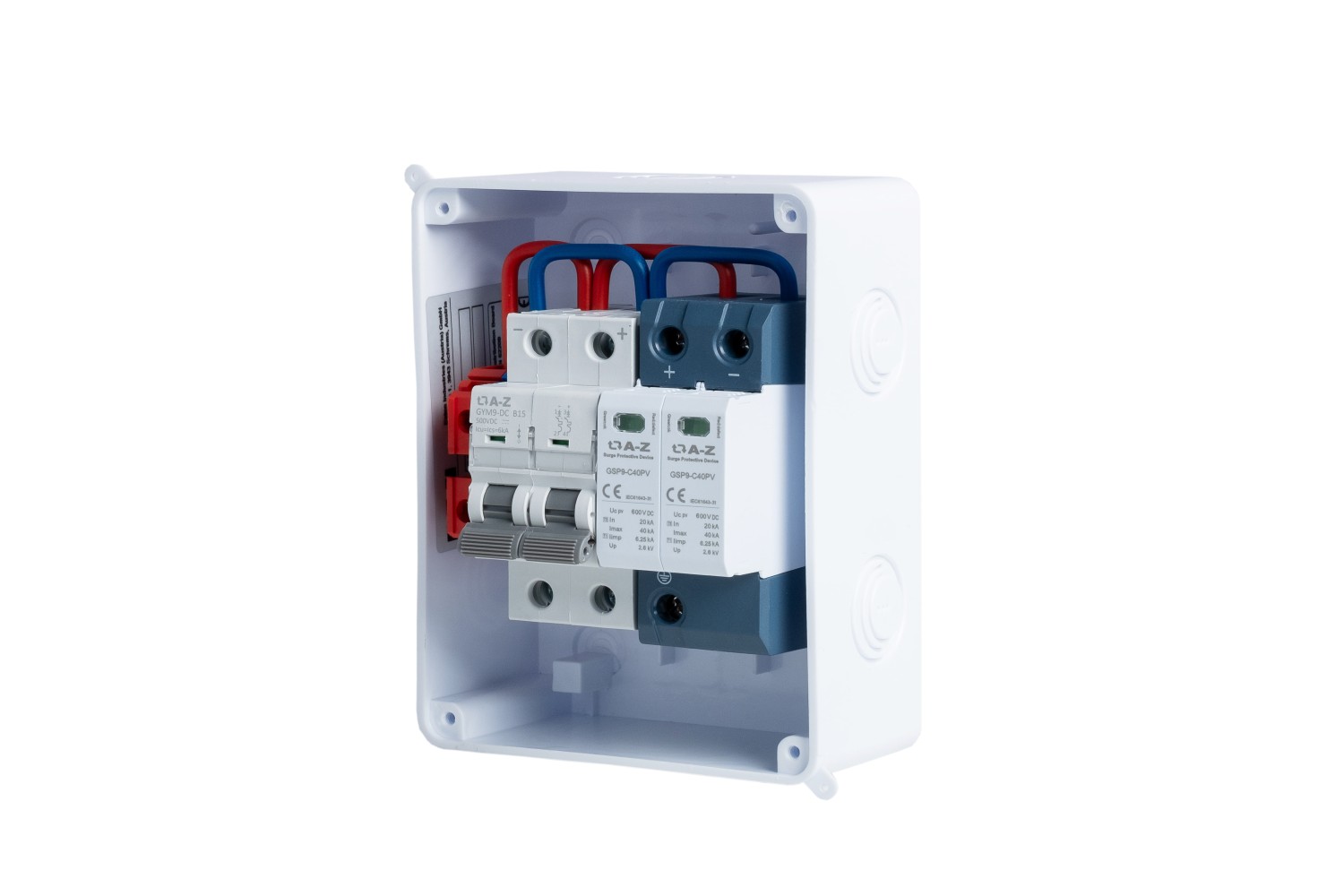

The switchboard is fitted with a T1+T2 class DC surge arrester and a two-pole DC circuit breaker to protect the DC input to the WATER INVERTER or inverter.

Main parameters

Inverter type

All types of inverters

Other parameters

UV resistance	No
IP coverage	40/20
Number of strings	1

Inverter parameters

Inverter power (max. kW)	3.7kW
Inverter power (max. kW)	11kW
Inverter power (max. kW)	13.8kW
Inverter power (max. kW)	17.3kW
Inverter power (max. kW)	22.1kW
Inverter power (max. kW)	27.6kW
Inverter power (max. kW)	34.5kW
Inverter power (max. kW)	43.5kW
Inverter power (max. kW)	55.2kW
Inverter power (max. kW)	69.0kW
Inverter power (max. kW)	86.3kW
Inverter power (max. kW)	110.4kW
Suitable for hybrid inverters	Yes
Suitable for mains inverters	Yes

Inverter brands

Suitable for Growatt	Yes
suitable for Solis	Yes
Suitable for GoodWe	Yes
Suitable for DEYE	Yes
Suitable for Solax	Yes

Code	Manufacturer	Product	Description	Number of pieces
280345	EATON	BC-O-1/5-ECO	Switchboard ON plaster, transparent plastic. door, 1 row, 5 modules	1
AZT-SPD600-T1+T2	AZT	GSP9-C40PV	Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 600V DC, In 20kA, Imax 40 kA	1
AZT-DC-B15/2	AZT	GYM9-DC B15 6kA	Circuit breaker, photovoltaic applications, 2-pole, 500V DC / 15A, short circuit resistance 6kA	1
