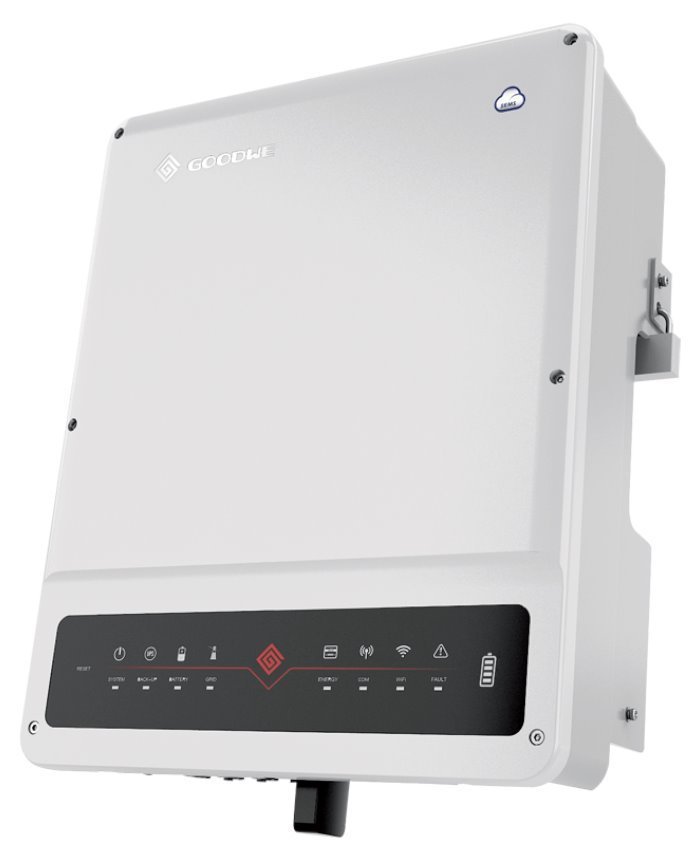

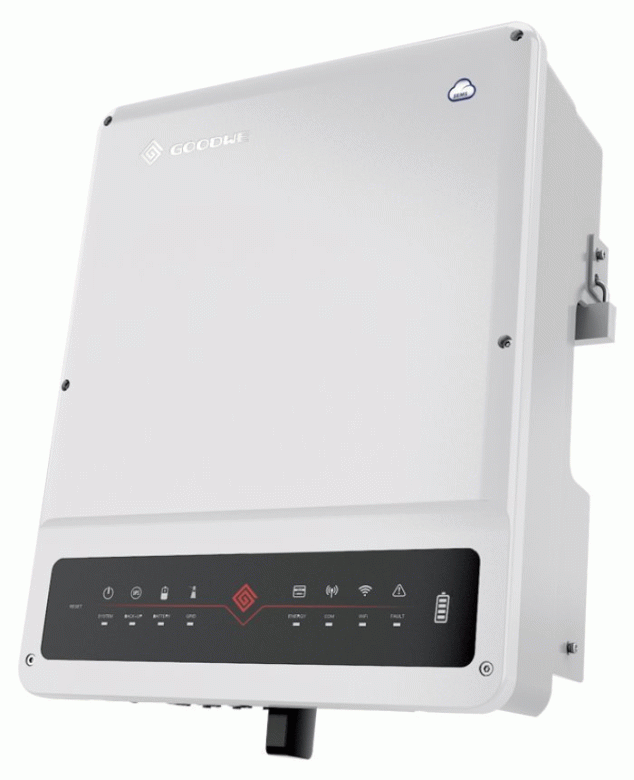

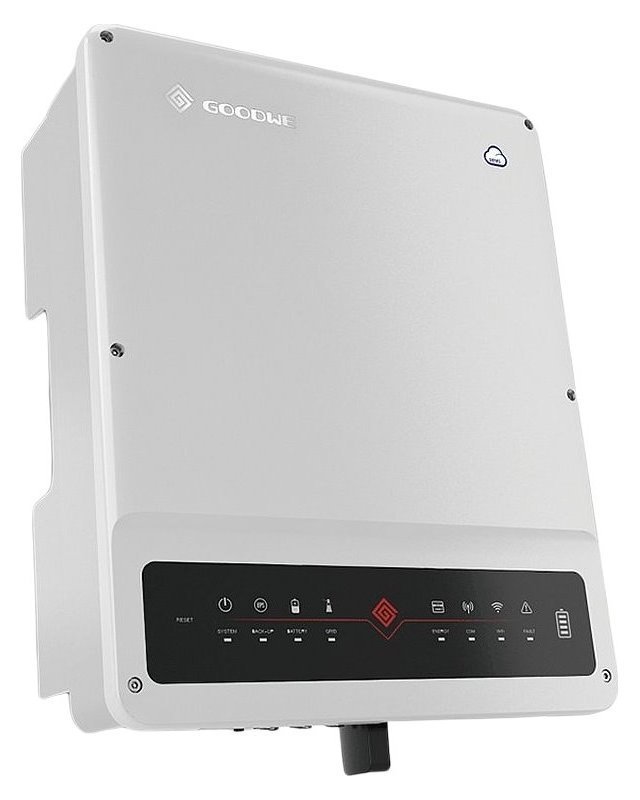

GoodWe GW8K-ET three-phase hybrid inverter

ET Plus series 3-phase hybrid inverter/inverter . Smart optimization of energy independence in residential PV systems.

This hybrid inverter has a three-phase emergency output with three-phase current. Together with the high-voltage battery connection and 2 independent MPP trackers, the GoodWe inverter leaves nothing to chance. This device is currently configured via the GoodWe PV Master app and sends its data via the integrated Wi-Fi interface to the free GoodWe SEMS portal. The delivery already includes a three-phase Smart Meter with folding current transformers. A larger system design is possible thanks to the cascade operation of several ET devices.

• Optimized energy autonomy
• Intelligent load management and efficient operation
• Modern and compact appearance
• The highest safety standards
• Integrated type 2 DC overvoltage protection
• 150% DC input oversizing/overshooting
• 100% unbalanced output
• Battery connection option - high voltage batteries (BYD, GoodWe, etc.)
• No fans and quiet
• Integration into a smart home
• UPS switching within 10 ms
• Cascade operation of several ET units is possible with the SEC1000S Hybrid Combinerbox accessory
• Potential-free contact available (programmable via PV-Master APP) (SG-Ready)
• Push-in terminals for the communication interface simplify installation
• Including a three-phase Smart Meter

The ET PLUS+ hybrid inverters are designed for maximum output power, improving self-consumption and provide backup in case of failure. With intelligent power management and a wide voltage range for the batteries, the inverter settings can be flexibly adjusted for individual needs across the entire residential sector.
