BOX – protection class I+II

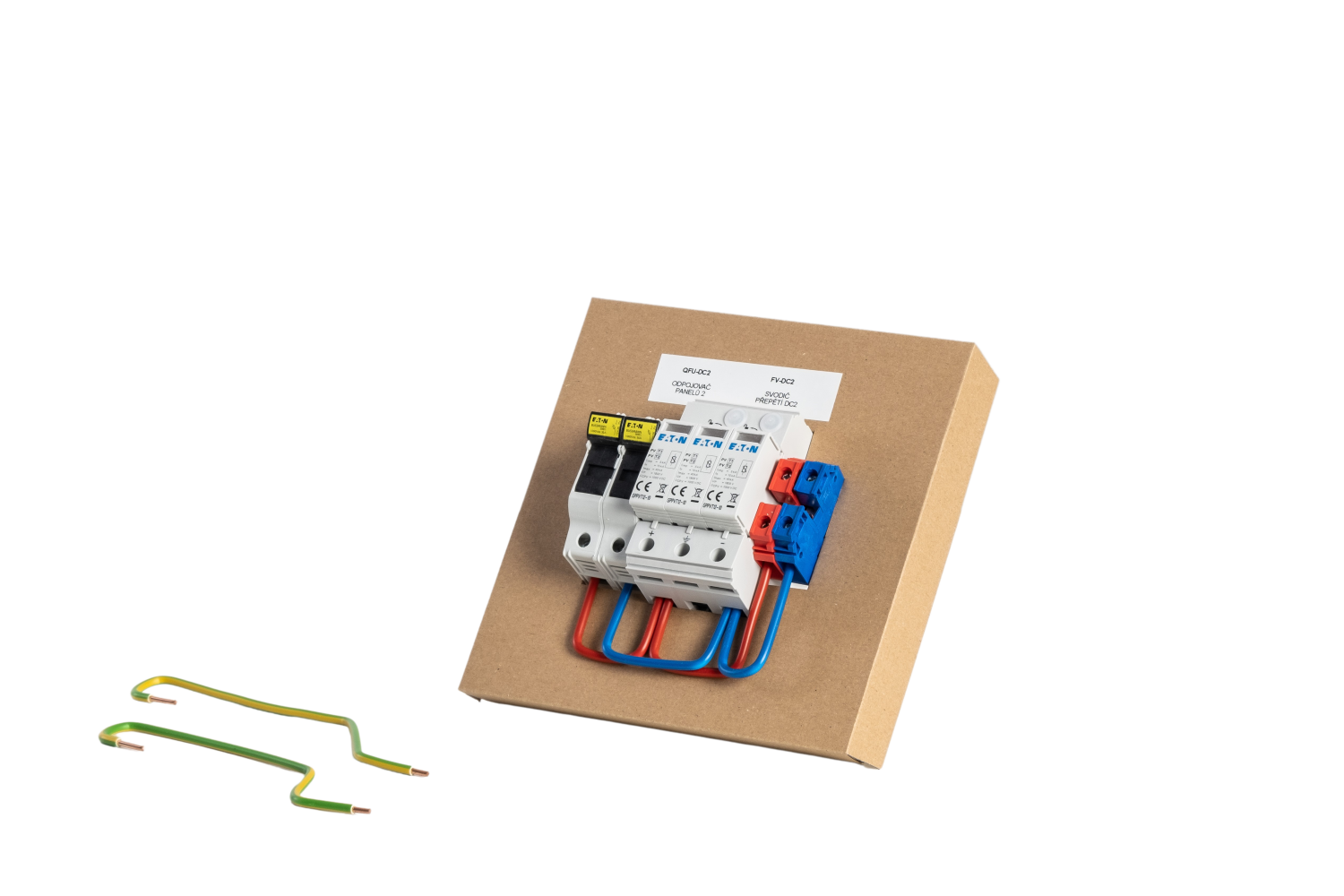

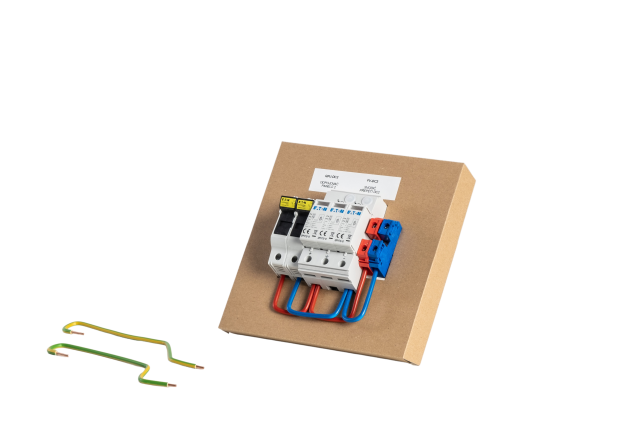

Each DC distributor can be ordered with one or two strings. Alternatively, we have introduced the possibility of ordering the so-called BOX (wiring, RSA terminals, fuse disconnector and gPV fuses + yellow-green jumpers to the distributor on PE talc in a separate box). In this way, the DC switchgear can be extended by another chain without the need to keep…

Prices are visible only to registered users.
PRODUCT DESCRIPTION

PDF Product description

Each DC distributor can be ordered with one or two strings. Alternatively, we have introduced the possibility of ordering the so-called BOX (wiring, RSA terminals, fuse disconnector and gPV fuses + yellow-green jumpers to the distributor on PE talc in a separate box). In this way, the DC switchgear can be extended by another chain without the need to keep both single and double chain switchgears in stock.

Main parameters

UseSystems without backup circuits
UseSystems with selected backup circuits
UseSystems with backup of two sockets
UseManual full back-up systems of the whole house
UseFull back-up systems of the entire house automation
Inverter typeAll types of inverters

Other parameters

UV resistanceNo
Number of strings1

Inverter brands

Suitable for GrowattYes
suitable for SolisYes
Suitable for GoodWeYes
Suitable for DEYEYes
Suitable for SolaxYes

Code Manufacturer Product Description Number of pieces
177256 EATON SPPVT12-10-2+PE Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 1000V DC, max. short-circuit current 1000A 1
2625085 EATON/ETI/OEZ CH10x38 gPV 15A/1000V DC Ultra fast cylindrical fuse for photovoltaics, (UL standard), 10x38mm, 1100V DC, 15A 2
CHPV2U EATON CHPV2U Fuse disconnector, photovoltaic applications, 2-pole, 1000V AC / 30A, C10 (10x38mm) 1
